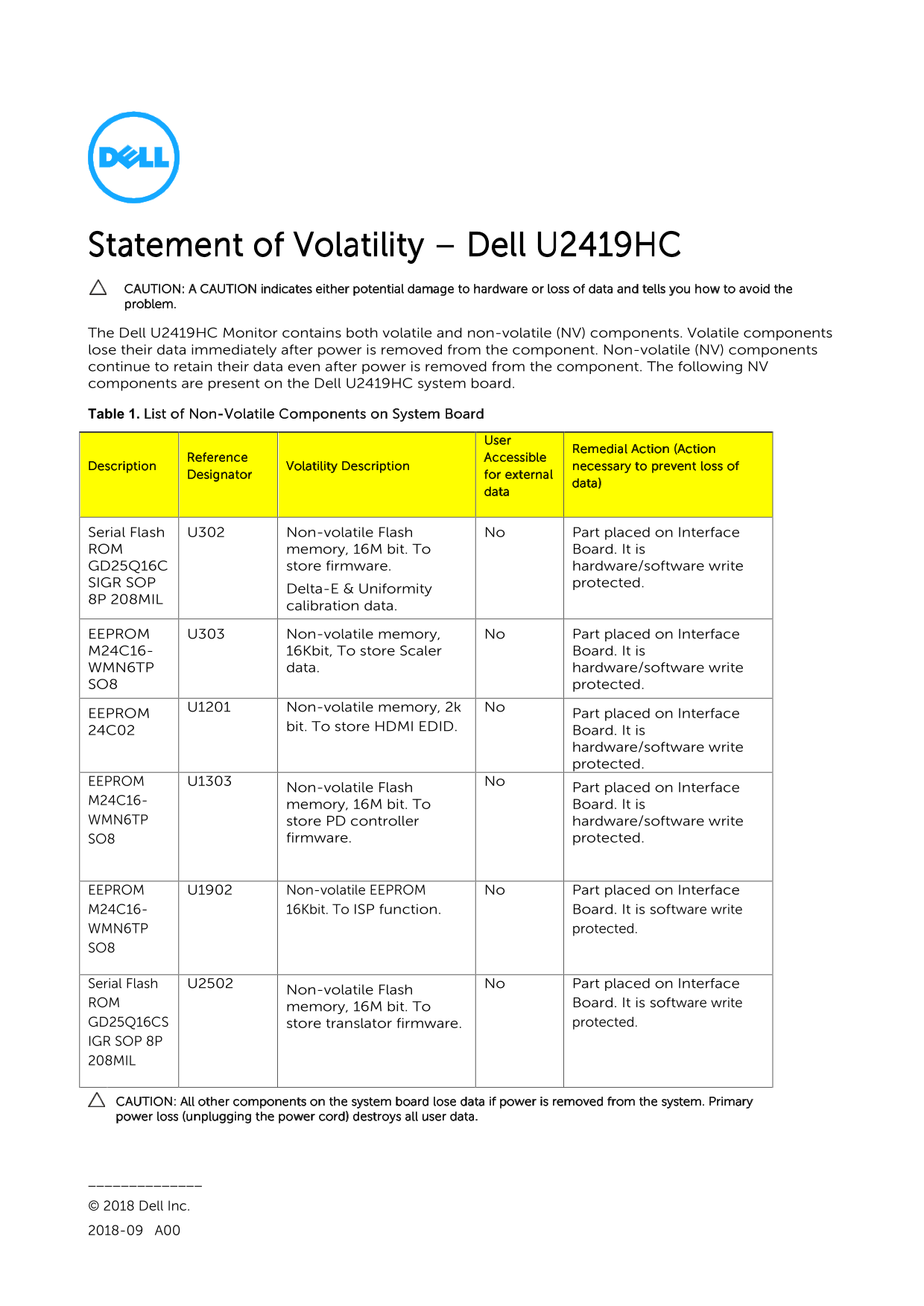

Dell UltraSharp U2419HC - Statement of Volatility
Summary
This statement of volatility documents the Dell U2419HC monitor's memory components. It identifies non-volatile components including serial flash ROM and EEPROM chips, their functions for firmware and calibration data storage, and data retention characteristics. The document targets security professionals and technicians assessing data security and component volatility for regulatory compliance purposes.
Page 1 Text Content
Statement of Volatility – Dell U2419HC CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. The Dell U2419HC Monitor contains both volatile and non-volatile (NV) components. Volatile components lose their data immediately after power is removed from the component. Non-volatile (NV) components continue to retain their data even after power is removed from the component. The following NV components are present on the Dell U2419HC system board. Table 1. List of Non-Volatile Components on System Board
Remedial Action (Action
Reference Accessible
Description Volatility Description necessary to prevent loss of
Designator for external
data)
Serial Flash U302 Non-volatile Flash No Part placed on Interface
ROM memory, 16M bit. To Board. It is GD25Q16C store firmware. hardware/software write
SIGR SOP protected.
Delta-E & Uniformity
8P 208MIL
calibration data.
EEPROM U303 Non-volatile memory, No Part placed on Interface
M24C16- 16Kbit, To store Scaler Board. It is WMN6TP data. hardware/software write SO8 protected.
U1201 Non-volatile memory, 2k No Part placed on Interface
EEPROM
bit. To store HDMI EDID.
24C02 Board. It is
hardware/software write protected.
EEPROM U1303 Non-volatile Flash No Part placed on Interface M24C16-
memory, 16M bit. To Board. It is
WMN6TP store PD controller hardware/software write
SO8 firmware. protected.
EEPROM U1902 Non-volatile EEPROM No Part placed on Interface M24C16- 16Kbit. To ISP function. Board. It is software write WMN6TP protected. SO8
Serial Flash U2502 Non-volatile Flash No Part placed on Interface ROM Board. It is software write
memory, 16M bit. To
GD25Q16CS store translator firmware. protected. IGR SOP 8P 208MIL
CAUTION: All other components on the system board lose data if power is removed from the system. Primary power loss (unplugging the power cord) destroys all user data.
© 2018 Dell Inc. 2018-09 A00
Page Summary Contents For Dell UltraSharp U2419HC - Statement of Volatility
Manual Details
| Brand | Dell |
|---|---|
| Pages | 1 |
| File Size | 43.98 KB |
| Published | June 25, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What happens to data if I unplug the monitor?
Primary power loss will destroy all user data, as most components are volatile and lose their data immediately.
Which parts contain Non-Volatile (NV) memory on the system board?
The NV components include Flash chips (U302, U1303, U2502) and EEPROM chips (U303, U1902).
How is data stored in these non-volatile components?
These memory types retain their data even after external power is removed from the monitor.
