Dell U2719D Monitor Simplified Service Manual

Summary

This service manual provides repair and maintenance documentation for electronic display products, covering important safety notices, RoHS compliance requirements, and lead-free soldering specifications. It includes exploded view diagrams, wiring connectivity diagrams, and component identification for qualified service technicians. The manual emphasizes proper repair procedures, safety precautions, and use of manufacturer-specified parts to ensure reliable product operation.

📄 Preview 📖 Table of Contents Contents PAGE OF 14

Page 1 Text Content

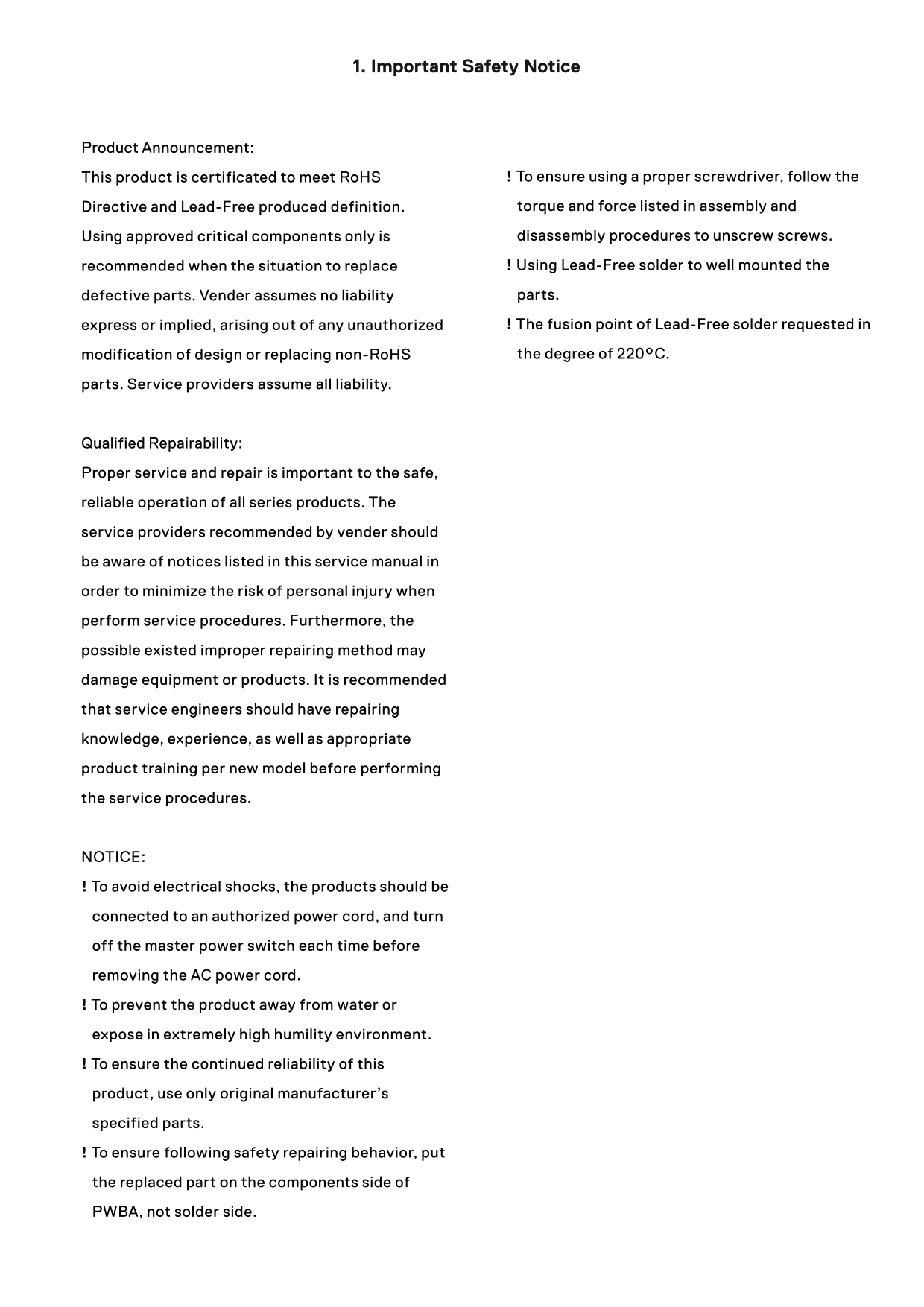

1. Important Safety Notice

Product Announcement:

This product is certificated to meet Ro HS ! To ensure using a proper screwdriver, follow the Directive and Lead-Free produced definition. torque and force listed in assembly and Using approved critical components only is disassembly procedures to unscrew screws. recommended when the situation to replace ! Using Lead-Free solder to well mounted the defective parts. Vender assumes no liability parts. express or implied, arising out of any unauthorized ! The fusion point of Lead-Free solder requested in modification of design or replacing non-Ro HS the degree of 220°C.

parts. Service providers assume all liability.

Qualified Repairability: Proper service and repair is important to the safe, reliable operation of all series products. The service providers recommended by vender should be aware of notices listed in this service manual in order to minimize the risk of personal injury when perform service procedures. Furthermore, the possible existed improper repairing method may damage equipment or products. It is recommended that service engineers should have repairing knowledge, experience, as well as appropriate product training per new model before performing the service procedures.

NOTICE: ! To avoid electrical shocks, the products should be connected to an authorized power cord, and turn off the master power switch each time before removing the AC power cord. ! To prevent the product away from water or expose in extremely high humility environment. ! To ensure the continued reliability of this product, use only original manufacturer’s specified parts. ! To ensure following safety repairing behavior, put the replaced part on the components side of PWBA, not solder side.

Page Summary Contents For Dell U2719D Monitor Simplified Service Manual

Page 1 1. Important Safety Notice Product Announcement: This product is certificated to meet Ro HS ! To ensure using a proper screwdriver, follow the Directive and Lead-Free produced definition. torque and f...
Page 2 2. Exploded view diagram with list of items ey B ard ain ch assis er b ard ack C ver In terface b ard an el er m yalr ey m ylar Fro t trim er B tto ey b ard SD tto Stan
Page 3 3. Wiring Connectivity Diagram LED DRIVER Panel FK board Interface board USB board HDMI1 DP1 DP2 Audio out USB1 USB2 USB3
Page 4 4. Disassembly and Assembly Procedures Necessary repair and test equipment: Lift the rear cover up carefully. Disconnect the USB 1. Philips-head screwdriver FFC cable from the connector of the interfa...
Page 5 4. Disassembly and Assembly Procedures Use a Philips-head screwdriver to remove 5pcs screws for unlocking the front bezel with the S8 assembled unit. (No.1~5 screw size=M2x2.7, Torque=3±0.5kgfxcm) se ...
Page 6 4. Disassembly and Assembly Procedures Turn over the bracket chassis module. Remove the Mylar from the hooks of the bracket, and then use a S14 Philips-head screwdriver to remove screws for two unlock...
Page 7 4. Disassembly and Assembly Procedures 4.2 Assembly Procedures: Use a two screws Philips-head screwdriver to tighten Place a bracket chassis base on a protective for locking the AC-power outlet connec...
Page 8 4. Disassembly and Assembly Procedures Adjust the bracket chassis module, and then u se a Philips-head screwdriver to tighten 4pcs screws for S7 locking the bracket chassis module with the panel (No.1...
Page 9 4. Disassembly and Assembly Procedures Take a USB board, a USB hub and a connect cable. Connect the cable to the USB board, then locate the USB board into the USB hub. Stick 1pcs aluminum foil on one ...
Page 10 4. Disassembly and Assembly Procedures Use a Philips-head screwdriver to tighten four screws for locking mechanisms. Stick two pieces of S16 lable on the specific positions, then insert a DP out Cap i...
Page 11 5. Trouble Shooting Instructions WARNING: Before you begin any of the procedures in this section, follow the Safety Instructions. Self-Test Your monitor provides a self-test feature that allows you to...
Page 12 5. Trouble Shooting Instructions Built-in Diagnostics Your monitor has a built-in diagnostic tool that helps you determine if the screen abnormality you are experiencing is an inherent problem with yo...
Page 13 5. Trouble Shooting Instructions Common Problems The following table contains general information about common monitor problems you might encounter and the possible solutions: Common What You Possible...
Page 14 5. Trouble Shooting Instructions Common What You Possible Solutions Symptoms Experience Wrong Color Picture color not • Change the settings of the Preset Modes in the good Color menu OSD depending on ...
