This service manual covers Dell monitor models including S2419H, S2419HN, and related variants. The manual provides detailed disassembly and assembly procedures including stand removal, rear cover removal, speaker removal, mainframe and middle frame removal, panel replacement, and main board replacement. It includes exploded view diagrams, wiring connectivity diagrams, and screw specifications with torque requirements. Safety instructions and necessary repair equipment are also covered. This documentation is intended for certified service technicians and repair professionals who need to perform component-level repairs on Dell S2419 series monitors.

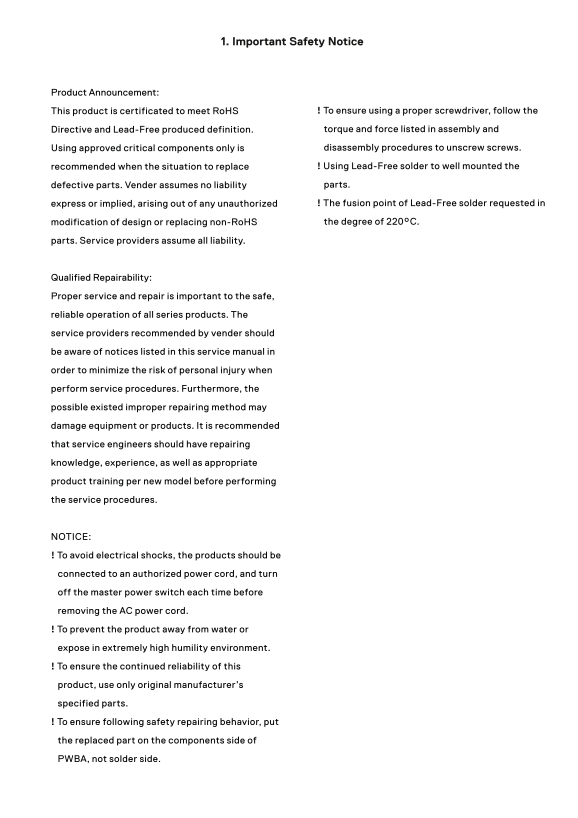

Page 1 Text Content
1. Important Safety Notice
Product Announcement:
This product is certificated to meet Ro HS ! To ensure using a proper screwdriver, follow the Directive and Lead-Free produced definition. torque and force listed in assembly and Using approved critical components only is disassembly procedures to unscrew screws. recommended when the situation to replace ! Using Lead-Free solder to well mounted the defective parts. Vender assumes no liability parts. express or implied, arising out of any unauthorized ! The fusion point of Lead-Free solder requested in modification of design or replacing non-Ro HS the degree of 220°C.
parts. Service providers assume all liability.
Qualified Repairability: Proper service and repair is important to the safe, reliable operation of all series products. The service providers recommended by vender should be aware of notices listed in this service manual in order to minimize the risk of personal injury when perform service procedures. Furthermore, the possible existed improper repairing method may damage equipment or products. It is recommended that service engineers should have repairing knowledge, experience, as well as appropriate product training per new model before performing the service procedures.
NOTICE: ! To avoid electrical shocks, the products should be connected to an authorized power cord, and turn off the master power switch each time before removing the AC power cord. ! To prevent the product away from water or expose in extremely high humility environment. ! To ensure the continued reliability of this product, use only original manufacturer’s specified parts. ! To ensure following safety repairing behavior, put the replaced part on the components side of PWBA, not solder side.
Page Summary Contents For Dell S2721HSX Monitor Simplified Service Manual
Manual Details
| Brand | Dell |
|---|---|
| Pages | 13 |
| File Size | 9.92 MB |
| Published | June 16, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What safety precautions should be followed during repair?
Use a proper screwdriver with correct torque, use original parts, and put replaced parts on the components side of the PWBA.
How do I disassemble the monitor rear cover?
Press the middle bezel while pulling up the rear cover in the order indicated by arrows, after removing the necessary screws.
What causes a static image shadow on the screen?
This is image retention; set the screen to turn off after a few minutes of idle time or use a screensaver.
Why does the monitor show no input signal?
Check if the signal cable is plugged in properly, ensure the computer is not in power saving mode, and check the signal source.
