Dell S2421HN Monitor Simplified Service Manual
Summary
This service manual covers Dell monitor models. The manual provides detailed disassembly and assembly procedures including stand removal, rear cover removal, speaker removal, mainframe and middle frame removal, panel replacement, and main board replacement. It includes exploded view diagrams, wiring connectivity diagrams, and screw specifications with torque requirements. Safety instructions and necessary repair equipment are also covered. This documentation is intended for certified service technicians and repair professionals who need to perform component-level repairs on Dell monitors.
Page 1 Text Content

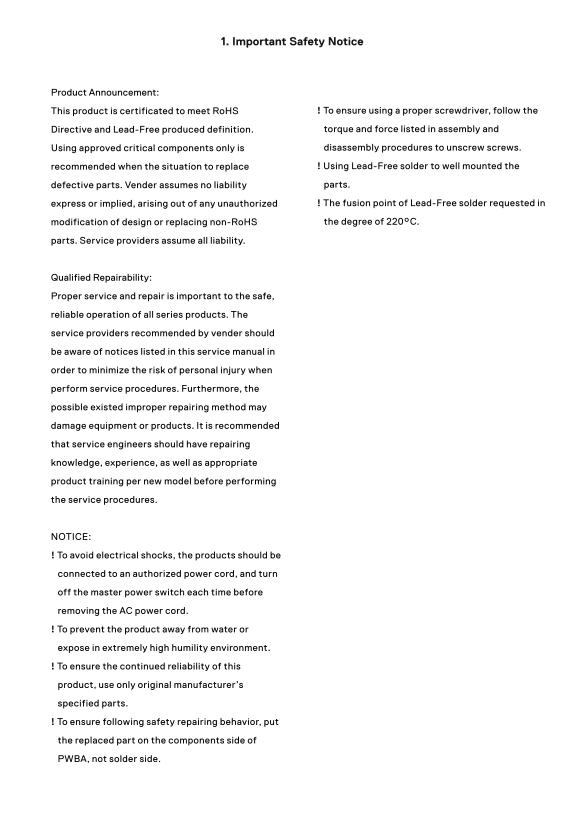

1. Important Safety Notice
Product Announcement:
This product is certificated to meet Ro HS ! To ensure using a proper screwdriver, follow the Directive and Lead-Free produced definition. torque and force listed in assembly and Using approved critical components only is disassembly procedures to unscrew screws. recommended when the situation to replace ! Using Lead-Free solder to well mounted the defective parts. Vender assumes no liability parts. express or implied, arising out of any unauthorized ! The fusion point of Lead-Free solder requested in modification of design or replacing non-Ro HS the degree of 220°C.
parts. Service providers assume all liability.
Qualified Repairability: Proper service and repair is important to the safe, reliable operation of all series products. The service providers recommended by vender should be aware of notices listed in this service manual in order to minimize the risk of personal injury when perform service procedures. Furthermore, the possible existed improper repairing method may damage equipment or products. It is recommended that service engineers should have repairing knowledge, experience, as well as appropriate product training per new model before performing the service procedures.
NOTICE: ! To avoid electrical shocks, the products should be connected to an authorized power cord, and turn off the master power switch each time before removing the AC power cord. ! To prevent the product away from water or expose in extremely high humility environment. ! To ensure the continued reliability of this product, use only original manufacturer’s specified parts. ! To ensure following safety repairing behavior, put the replaced part on the components side of PWBA, not solder side.
Page Summary Contents For Dell S2421HN Monitor Simplified Service Manual
Manual Details
| Brand | Dell |
|---|---|
| Pages | 14 |
| File Size | 9.21 MB |
| Published | June 16, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How do I safely remove the monitor stand base?
Place the monitor on a soft cloth, press the stand down to access the release latch, and use a long screwdriver to press it while sliding the assembly out.
What are the correct torque specifications for disassembly?
Screws M3x4 require 3-4kgfxcm, M4x11 and M4x8 require 7-8kgfxcm, and M2x3.3 requires 1±0.2kgfxcm.
How do I troubleshoot a picture missing color issue?
Ensure the video cable is connected properly, check for bent pins, change Preset Modes in the Color menu OSD, or adjust R/G/B values.
What should I do if the monitor self-test indicates wrong colors?
Change the Input Color Format to PC RGB or YPbPr in the Color menu OSD, or adjust the R/G/B value under Custom Color.
