Dell U2422H Monitor Simplified Service Manual

Summary

This technical service manual provides safety instructions, exploded view diagrams, wiring connectivity diagrams, and detailed disassembly and assembly procedures for Dell UltraSharp 24 monitors. It covers general safety guidelines, power safety, component identification, cable connection/disconnection procedures, step-by-step disassembly SOP, assembly SOP, and troubleshooting instructions. The manual emphasizes using proper tools, lead-free solder requirements, and RoHS compliance. Target users are certified service technicians and repair professionals performing maintenance and repairs on Dell monitor products.

📄 Preview PAGE OF 27

Page 1 Text Content

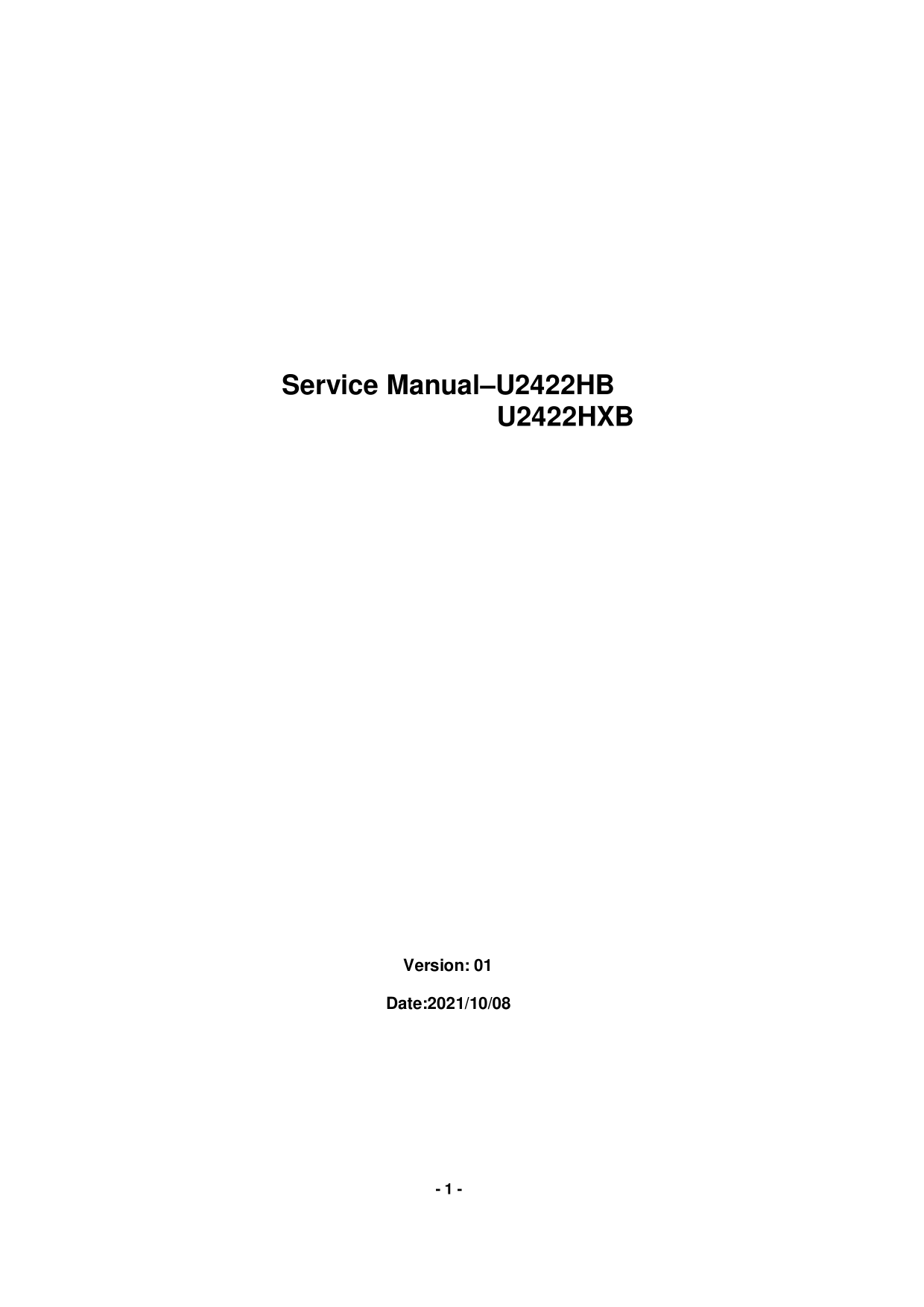

Service Manual–U2422HB U2422HXB

Version: 01

Date:2021/10/08

Page Summary Contents For Dell U2422H Monitor Simplified Service Manual

Page 1 Service Manual–U2422HB U2422HXB Version: 01 Date:2021/10/08
Page 2 Content Index 1. General Safety Instructions ....................................................................................... 3 1.1 SAFETY: General Safety .........................................
Page 3 1. General Safety Instructions Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and working environment from potential damage. NOTE: In th...
Page 4 When operating your equipment:  Do not use your equipment in a wet environment, for example, near a bath tub, sink, or swimming pool or in a wet basement.  Do not use AC powered equipment during an ...
Page 5 1.2 SAFETY: General Power Safety Observe the following guidelines when connecting your equipment to a power source:  Check the voltage rating before you connect the equipment to an electrical outlet ...
Page 6 2. Exploded view diagram with list of items
Page 7 Item no Description Q'ty Remark 1 Panel 1 2 BOSS PANEL 5 3 ASSY MF 1 4 PCBA USB BD 1 5 PCBA I/F BD 1 6 PCBA SPS BD 1 For EMEA Only, not 7 ASSY MAIN SHD 1 for other regions 8 MYLAR PWR 1 9 PCBA CTRL BD...
Page 8 3. Wiring connectivity diagram Wire1 FFC 1 FFC 2 Wire2
Page 9 4. How to connect and disconnect power cable/ connectivity cable WARNING: To change power cable/ connectivity cable, switch off power before unplugging the cable and replugging in required cable. Conn...
Page 10 Connecting/ disconnecting the USB-C to USB-A Cable and Power cable
Page 11 5. Disassembly and Assembly Procedures NOTE: This “Disassembly and Assembly Procedures” is for EMEA only, not for other regions. Please note that Dell will deem warranty void if any disassembly is don...
Page 12 1. Pull out CTRL BD FFC from I/F BD and tear off it from Main SHD to take off Rear Cover 1. Press on the lock of connector to disassemble USB FFC from I/F BD Attention: USB FFC may be damaged if you p...
Page 13 1. Disassemble LVDS FFC cable from Panel 2. Take off Main SHD from panel 1. Disassemble mylar from Main SHD 1. Unlock 8 PCBA Philips-head screws to screwdriver disassemble I/F BD, SPS BD from Torsion ...
Page 14 5.2 Assembly SOP Preparation before assemble 1. Clean the room for work 2. Identify the area for material 3. Prepare the implement, equipment, material as bellow: 1) Working table 2) Philips-head scre...
Page 15 1. Lock 8 PCBA Philips-head screws screwdriver Torsion of PCB screw: 8.5±1Kg 1. Assemble mylar to Main SHD 1. Insert LVDS FFC cable into panel 2. Place Main SHD on panel 3. Insert Backlight wire to SP...
Page 16 1. Insert CTRL BD FFC Philips-head into I/F BD screwdriver Torsion: 8-10kg The wire here should Adhere CTRL not be stretched tight. BD FFC on Main Keep it loose SHD 2. Follow the sequence to assemble ...
Page 17 6. Trouble shooting instructions

Manual Details

Brand Dell
Pages 27
File Size 7.21 MB
Published June 24, 2026
3 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

How should I clean the monitor display?

Disconnect the device, then use a soft cloth dampened with water. Stroke from top to bottom.

Is this monitor safe to use near patients?

No, Dell monitors are not medical devices and must not be used within 6 feet of a patient.

What is the minimum clearance required for ventilation?

Leave 10.2 cm (4 in) of clearance on all vented sides to ensure proper airflow.

Where can I get a replacement power cord or cable?

Contact Dell support via support.dell.com to order replacement parts.
