Dell U2421E Monitor Simplified Service Manual
Summary
This service manual covers the Dell U2421E 24-inch USB-C monitor, providing safety notices, exploded view diagrams with parts lists, and wiring connectivity diagrams. Includes RoHS compliance, lead-free soldering requirements, and disassembly guidance. Lists replaceable components including LCD panel, chassis, power board, main board, USB board, key board, and cables. Intended for Dell-authorized service providers performing hardware repairs on the U2421E monitor.
Page 1 Text Content
Service Manual - U2421E
Version: 01
Date: 2021/10/30
Page Summary Contents For Dell U2421E Monitor Simplified Service Manual

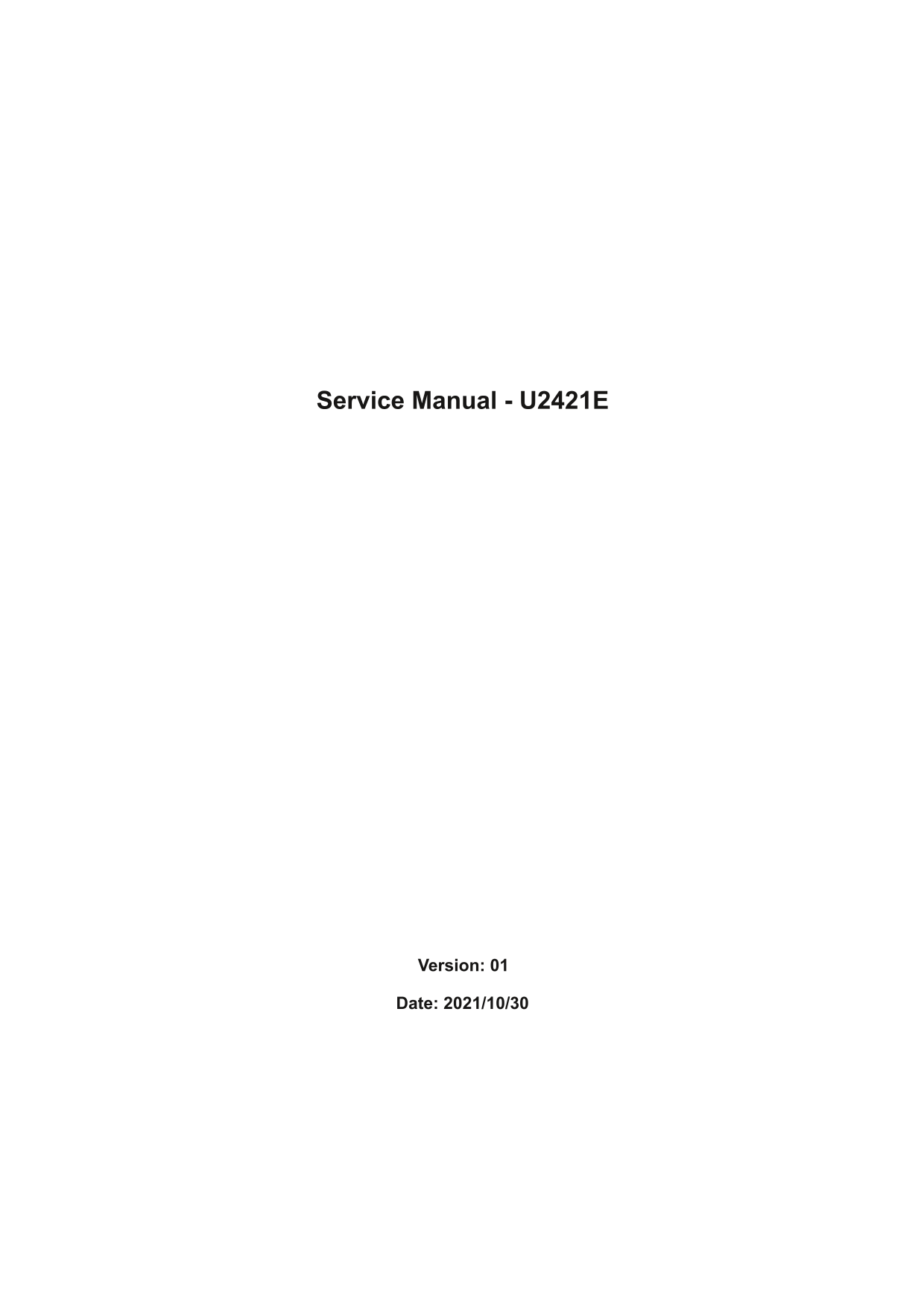

Page 1
Service Manual - U2421E Version: 01 Date: 2021/10/30
Page 2
1. Important Safety Notice Product Announcement: This product is certificated to meet Ro HS ! To ensure using a proper screwdriver, follow the Directive and Lead-Free produced definition. torque and f...
Page 3
2. Exploded view diagram with list of items Item Description Q'ty Remark 1 1 Panel ASSY Middle Frame USB BD 4 1 Key BD IF BD Safety Mylar Power BD 1 7 8 1 ASSY Chassis For EMEA Only, not for ASSY Rear...
Page 4
3. Wiring Connectivity Diagram
Page 5
4. How to connect and disconnect power cable/ connectivity cable WARNING: To change power cable/ connectivity cable, switch off power before unplugging the cable and replugging in required cable.
Page 6
4. How to connect and disconnect power cable/ connectivity cable
Page 7
4. How to connect and disconnect power cable/ connectivity cable
Page 8
5. Disassembly and Assembly Procedures NOTE: Lift the rear cover up carefully. Disconnect the This “Disassembly and Assembly Procedures” is for EMEA only, joystick key cable from the connector of the ...
Page 9
5. Disassembly and Assembly Procedures Disconnect the LED cable from the connector of the interface board. Use a Philips-head screwdriver to S7 remove 12pcs screws for unlocking the middle bezel with ...
Page 10
5. Disassembly and Assembly Procedures Move up the bracket, then push the earing-lock and Remove the power board board and interface disconnect the LVDS cable away from the panel. S16 board from the b...
Page 11
5. Disassembly and Assembly Procedures 5.2 Assembly Procedures: Take a black mylar to insert the hooks of the bracket Place a bracket chassis base on a protective to cover the power board. S4 S1 cushi...
Page 12
5. Disassembly and Assembly Procedures Take 1pcs LED board and 1pcs middle bezel, then put the middle bezel into a fixture jip to fix the middle bezel. Tear off the release paper on the back of the bo...
Page 13
5. Disassembly and Assembly Procedures Locate the panel lamp cable into the hooks of the Take 1pcs joystick key and 1pcs OSD board, S12 middle bezel, then fix the cable with 1pcs mylar tape assemble t...
Page 14
5. Disassembly and Assembly Procedures Use a Philips-head screwdriver to tighten 4pcs screws for locking the rear cover with the unit. Stick S17 two pieces of label on the specific positions, then ins...
Page 15
6. Trouble Shooting Instructions Self-test Your monitor provides a self-test feature that allows you to check whether your monitor is functioning properly. If your monitor and computer are properly co...
Page 16
6. Trouble Shooting Instructions Built-in diagnostics Your monitor has a built-in diagnostic tool that helps you determine if the screen abnormality you are experiencing is an inherent problem with yo...
Page 17
6. Trouble Shooting Instructions Common Problems The following table contains general information about common monitor problems you might encounter and the possible solutions: Common What You Possible...
Page 18
6. Trouble Shooting Instructions Common What You Possible Solutions Symptoms Experience Intermittent Monitor • Ensure that the video cable connecting the Problems malfunctions on monitor to the comput...
Page 19
6. Trouble Shooting Instructions Problem What you Possible solutions experience No Input Signal No picture, the • Check the signal source. Ensure the computer when user LED light is is not in the powe...
Page 20
6. Trouble Shooting Instructions Problem What you Possible solutions experience Intermittent Intermittent • Check if the maximum power consumption of charging charging device is over 90 W. when using ...
Page 21
6. Trouble Shooting Instructions Universal Serial Bus (USB) specific problems Specific What You Possible Solutions Symptoms Experience USB interface is USB peripherals • Check that your display is tur...
Manual Details
| Brand | Dell |
|---|---|
| Pages | 21 |
| File Size | 13.43 MB |
| Published | June 23, 2026 |
1 views
Enter the captcha to get the download link:
Frequently Asked Questions
How do I safely remove the monitor's rear cover?
Use a screwdriver to release the locking mechanisms, wedge fingers between the rear cover and bezel to release the cover, then pull up carefully.
What tools are required to disassemble the device?
Phillip head screwdrivers #1 and #2, a penknife, and a soldering iron with absorber are required.
Why is my USB interface not working?
Check that the display is ON, reconnect the upstream cable to the computer, reboot the computer, or ensure the USB device connects directly if it requires high power.
What are the specifications for Lead-Free soldering?
The fusion point for Lead-Free solder is 220°C, and it should be used to well mount the parts.
