Dell Simplified Service Manual for S2421H Monitor
Summary
This technical documentation provides comprehensive documentation for the 1. Important Safety Notice Product Announcement: ! To ensure using. The document covers safety instructions and precautions, component removal and replacement procedures. This documentation is intended for service technicians and IT professionals, network engineers and administrators. The manual provides detailed guidance to ensure proper operation and maintenance of the 1. Important Safety Notice Product Announcement: ! To ensure using. Users will find step-by-step instructions and technical details necessary for effective utilization of the product.
Page 1 Text Content

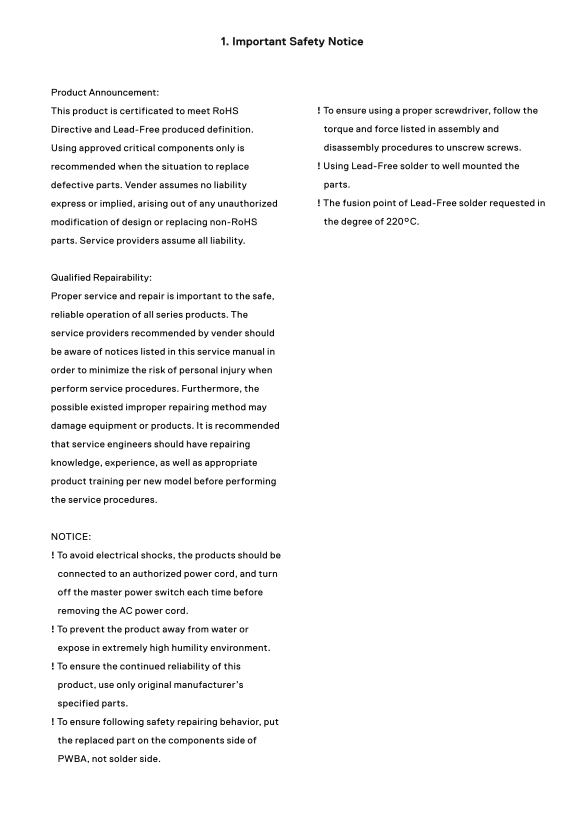

1. Important Safety Notice
Product Announcement:
This product is certificated to meet Ro HS ! To ensure using a proper screwdriver, follow the Directive and Lead-Free produced definition. torque and force listed in assembly and Using approved critical components only is disassembly procedures to unscrew screws. recommended when the situation to replace ! Using Lead-Free solder to well mounted the defective parts. Vender assumes no liability parts. express or implied, arising out of any unauthorized ! The fusion point of Lead-Free solder requested in modification of design or replacing non-Ro HS the degree of 220°C.
parts. Service providers assume all liability.
Qualified Repairability: Proper service and repair is important to the safe, reliable operation of all series products. The service providers recommended by vender should be aware of notices listed in this service manual in order to minimize the risk of personal injury when perform service procedures. Furthermore, the possible existed improper repairing method may damage equipment or products. It is recommended that service engineers should have repairing knowledge, experience, as well as appropriate product training per new model before performing the service procedures.
NOTICE: ! To avoid electrical shocks, the products should be connected to an authorized power cord, and turn off the master power switch each time before removing the AC power cord. ! To prevent the product away from water or expose in extremely high humility environment. ! To ensure the continued reliability of this product, use only original manufacturer’s specified parts. ! To ensure following safety repairing behavior, put the replaced part on the components side of PWBA, not solder side.
Page Summary Contents For Dell Simplified Service Manual for S2421H Monitor
Manual Details
| Brand | Dell |
|---|---|
| Pages | 14 |
| File Size | 10.74 MB |
| Published | June 16, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What tools are needed to disassemble the monitor?
A Philips-head screwdriver is required for all procedures.
How do I remove the stand from the monitor?
Place the monitor on a soft cloth, press the stand down to access the release latch, and use a long screwdriver to slide the stand assembly out.
What causes a missing color or wrong color display?
Check video cable connections, inspect for bent pins, or adjust settings like Preset Modes, Custom Color, or Input Color Format in the OSD menu.
What safety precautions should be followed during repair?
Disconnect the AC power cord and turn off the master switch before servicing, use authorized power cords, and avoid water exposure.
