This document is the official manual for the Dell Precision™ Workstations Setup. The manual provides comprehensive guidance on setup, configuration, and operation. It includes step-by-step setup and installation instructions. Troubleshooting guidance and problem resolution steps are also provided. Safety instructions and regulatory compliance information are covered. Designed for users and IT administrators who need detailed guidance on using and maintaining this monitor.
Page 1 Text Content
Dell Precision™ Workstations
Setup and Quick Reference Guide
Page Summary Contents For Dell SG Setup Guide
Page 1

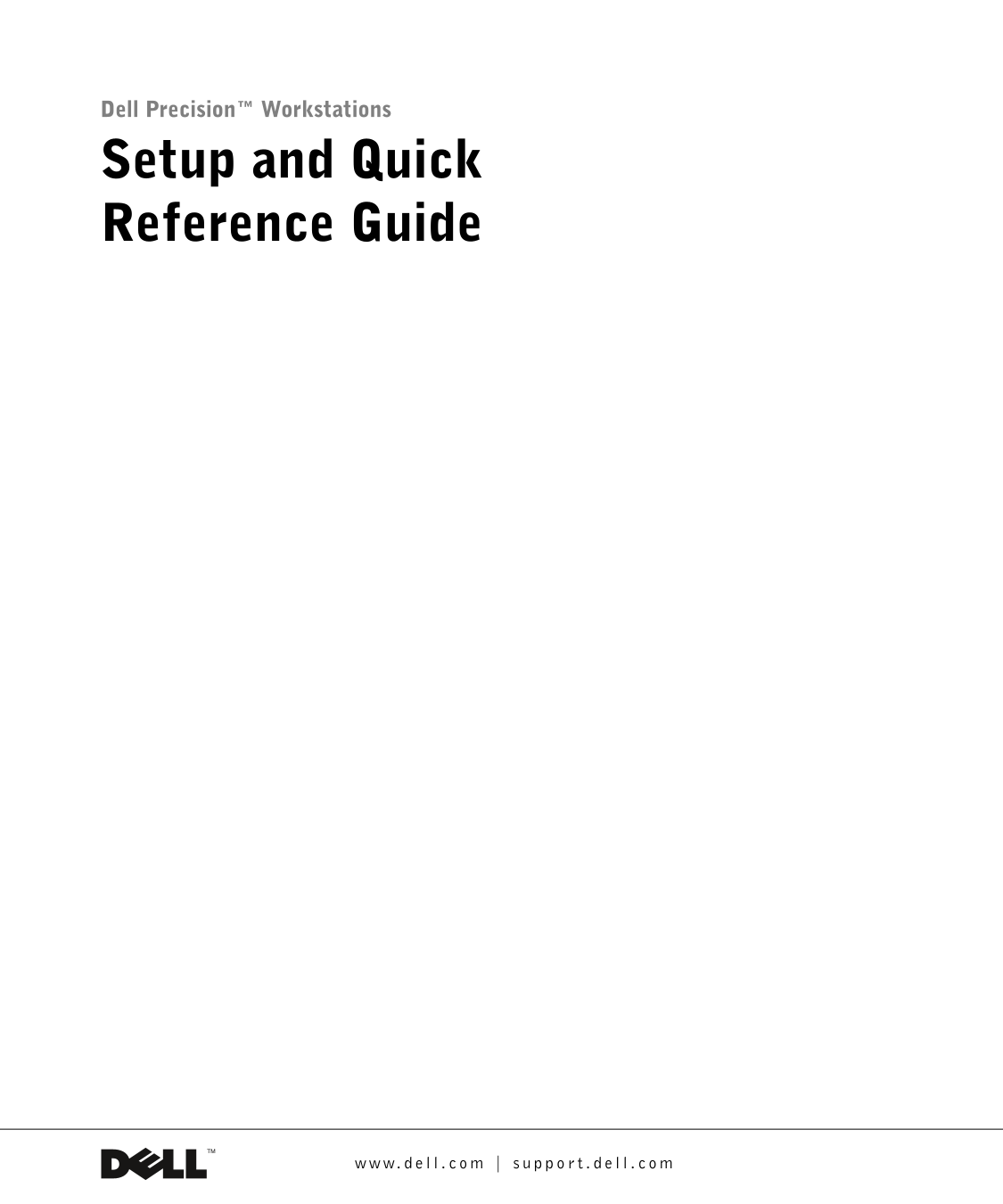

Dell Precision™ Workstations Setup and Quick Reference Guide
Page 2
Notes, Notices, and Cautions NOTE: A NOTE indicates important information that helps you make better use of your computer. NOTICE: A NOTICE indicates either potential damage to hardware or loss of dat...
Page 3
Contents Finding Information and Assistance . . . . . . . . . . . . . . . . . . . . . . . 5 Setting Up Your Mini-Tower Computer . . . . . . . . . . . . . . . . . . . . . 9 Dual Monitors . . . . . . . ...
Page 4
Contents
Page 5
Finding Information and Assistance The following table lists the resources that Dell provides as support tools. Additional resources may be shipped with your computer. What Are You Looking For? Find i...
Page 6
.d ll .c .d ll .c What Are You Looking For? Find it Here Express Service Code and Service Tag Ke Number Microsoft® Windows® License Label The labels are located on your computer under the front-panel ...
Page 7
8F764eb3.fm Page 7 Monday, December 2, 2002 10:00 AM What Are You Looking For? Find it Here How to remove and replace parts Technical specifications How to configure system settings How to troubleshoo...
Page 8
.d ll .c .d ll .c What Are You Looking For? Find it Here System board connectors Warranty Information How to use Windows XP Documentation for my computer and Click the Start button and then click Help...
Page 9
Setting Up Your Mini-Tower Computer You must complete all steps to properly set up your computer. -To Fe NOTE: The numbers in the figures correspond to the setup tasks. Setup and Quick Reference Guide
Page 10
.d ll .c .d ll .c Keyboard and Mouse1 Connect the keyboard and mouse as shown. Do not connect a Universal Serial Bus (USB) mouse or keyboard to the USB connectors on the front of the computer. NOTE: D...
Page 11
Network Adapter and Modem2 Insert the network cable, not the phone line, into the network connector. If you have an optional modem, connect the phone line to the modem. NOTE: If your computer has a ne...
Page 12
.d ll .c .d ll .c Monitor3 Align and gently insert the monitor cable to avoid bending connector pins. Then tighten the thumbscrews on the cable connectors. Use the primary port if you are using one mo...
Page 13
Speakers4 Connect the speakers to the computer as shown on the instructions supplied with the speakers. NOTE: If your computer has an audio expansion card installed, connect external audio devices to ...
Page 14
.d ll .c .d ll .c Power Connection5 Plug in the computer and the monitor to their electrical outlets. Setup and Quick Reference Guide
Page 15
Power On6 Press the power button on your computer and monitor to turn them on. hard-drive access light power light Setup and Quick Reference Guide
Page 16
.d ll .c .d ll .c Operating System7 When you start the computer for the first time, a few system start-up messages may appear, including one that shows your Service Tag and Express Service Code. Your ...
Page 17
Additional Devices and Software8 Before you install any devices or software that did not ship with your computer, read the documentation that came with the software or device or contact the vendor to ...
Page 18
.d ll .c .d ll .c Dual Monitors NOTICE: Do not use any other cables or attach the monitor cable directly to the dual-monitor graphic card. NOTE: Some flat-panel The dual-monitor cable is color coded; ...
Page 19
Setting Up Your Small Desktop Computer You must complete all steps to properly set up your computer. Fe NOTE: The numbers in the figures correspond to the setup tasks. Setup and Quick Reference Guide
Page 20
.d ll .c .d ll .c Keyboard and Mouse1 Connect the keyboard and mouse as shown. Do not connect a USB mouse or keyboard to the USB connectors on the front of the computer. NOTE: Do not attempt to operat...
Page 21
Network Adapter and Modem2 Insert the network cable, not the phone line, into the network connector. If you have an optional modem, connect the phone line to the modem. NOTE: If your computer has a ne...
Page 22
.d ll .c .d ll .c Monitor3 Align and gently insert the monitor cable to avoid bending connector pins. Then tighten the thumbscrews on the cable connectors. Use the primary port if you are using one mo...
Page 23
Speakers4 Connect the speakers to the computer as shown on the instructions supplied with the speakers. NOTE: If your computer has an audio expansion card installed, connect external audio devices to ...
Page 24
.d ll .c .d ll .c Power Connection5 Plug in the computer and the monitor to their electrical outlets. Setup and Quick Reference Guide
Page 25
Power On6 Press the power button on your computer and monitor to turn them on. power light hard-drive access light Setup and Quick Reference Guide
Page 26
.d ll .c .d ll .c Operating System7 When you start the computer for the first time, a few system start-up messages may appear, including one that shows your Service Tag and Express Service Code. Your ...
Page 27
Additional Devices and Software8 Before you install any devices or software that did not ship with your computer, read the documentation that came with the software or device or contact the vendor to ...
Page 28
.d ll .c .d ll .c Dual Monitors NOTICE: Do not use any other cables or attach the monitor cable directly to the dual-monitor graphic card. NOTE: Some flat-panel The dual-monitor cable is color coded; ...
Page 29
Safety First—For You and Your Computer While working inside your computer, do not attempt to service the computer except as explained in this guide and elsewhere in Dell documentation. Always follow t...
Page 30
.d ll .c .d ll .c Opening the Cover Turn off the computer and devices, disconnect them from their electrical outlets, and wait 10 to 20 seconds. If you have installed a padlock through the padlock rin...
Page 31
Setup and Quick Reference Guide
Page 32
.d ll .c .d ll .c Inside Your Computer -To removable media drive floppy drive hard drive power supply padlock ring speaker AC power chassis intrusion connector switch system board back-panel connector...
Page 33
removable media drive hard drive floppy drive system board memory modules speaker microprocessor chassis intrusion switch back-panel connectors power supply padlock ring expansion-card cage low profil...
Page 34
.d ll .c .d ll .c graphic card microprocessor To access the User’s Guide from your hard drive: Depending on your operating system, double-click the User’s Guides icon or click Start button and select ...
Page 35
For Windows NT, if the first two procedures did not work, run ZZTop. NOTICE: The following process has the potential to erase some or all of the information on the hard drive. To run ZZTOP, insert the...
Page 36
.d ll .c .d ll .c Frequently Asked Questions Problem? Try... Or try the Dell Precision Or try the Dell Support Site Resource CD How do I use my Dell See "Using the Dell Precision Go to the main m...
Page 37
Problem? Try... Or try the Dell Precision Or try the Dell Support Site Resource CD How do I find Depending on your Go to the main menu on the Go to support.dell.com. At the technical operating system,...
Page 38
.d ll .c .d ll .c Problem? Try... Or try the Dell Precision Or try the Dell Support Site Resource CD The monitor is blank The computer is in a Go to the main menu on the Go to support.dell.com. At the...
Page 39
Solving Problems Your computer includes the following tools that can help you solve a problem: DELL IAGNOSTICS The Dell Precision Resource CD contains Dell Diagnostics that tests various components on...
Page 40
.d ll .c .d ll .c Using the Dell Precision Resource CD To use the Dell Precision Resource CD from within the Windows operating system: NOTE: To access device Insert the Dell Precision Resource CD into...
Manual Details
| Brand | Dell |
|---|---|
| Pages | 152 |
| File Size | 9.74 MB |
| Published | June 28, 2026 |
8 views
Enter the captcha to get the download link:
Frequently Asked Questions
Where can I find my Express Service Code and Service Tag?
These labels are located on your computer under the front-panel door.
What do the POST diagnostic light codes indicate?
Lights indicate errors during startup; for example, yellow light on 'A' may mean a processor problem, and yellow lights on 'A' and 'D' may mean a memory problem.
How do I access electronic documentation on the computer?
Double-click the User's Guides icon on your desktop or use the Start menu to access Help and Support.
How do I reinstall my operating system?
Use the Operating System CD and Installation Guide; after reinstalling the OS, use the Drivers and Utilities CD to reinstall drivers.
