This document provides the outline dimensions for the Dell SE2719H and SE2719HX monitors. It includes detailed measurements in millimeters and inches for the monitor's physical dimensions, tilt angles, and stand specifications. This technical drawing is intended for system integrators, architects, and planners who need precise physical specifications for workspace or mounting planning.
Page 1 Text Content
Unit : mm(inch) Dimension : Nominal

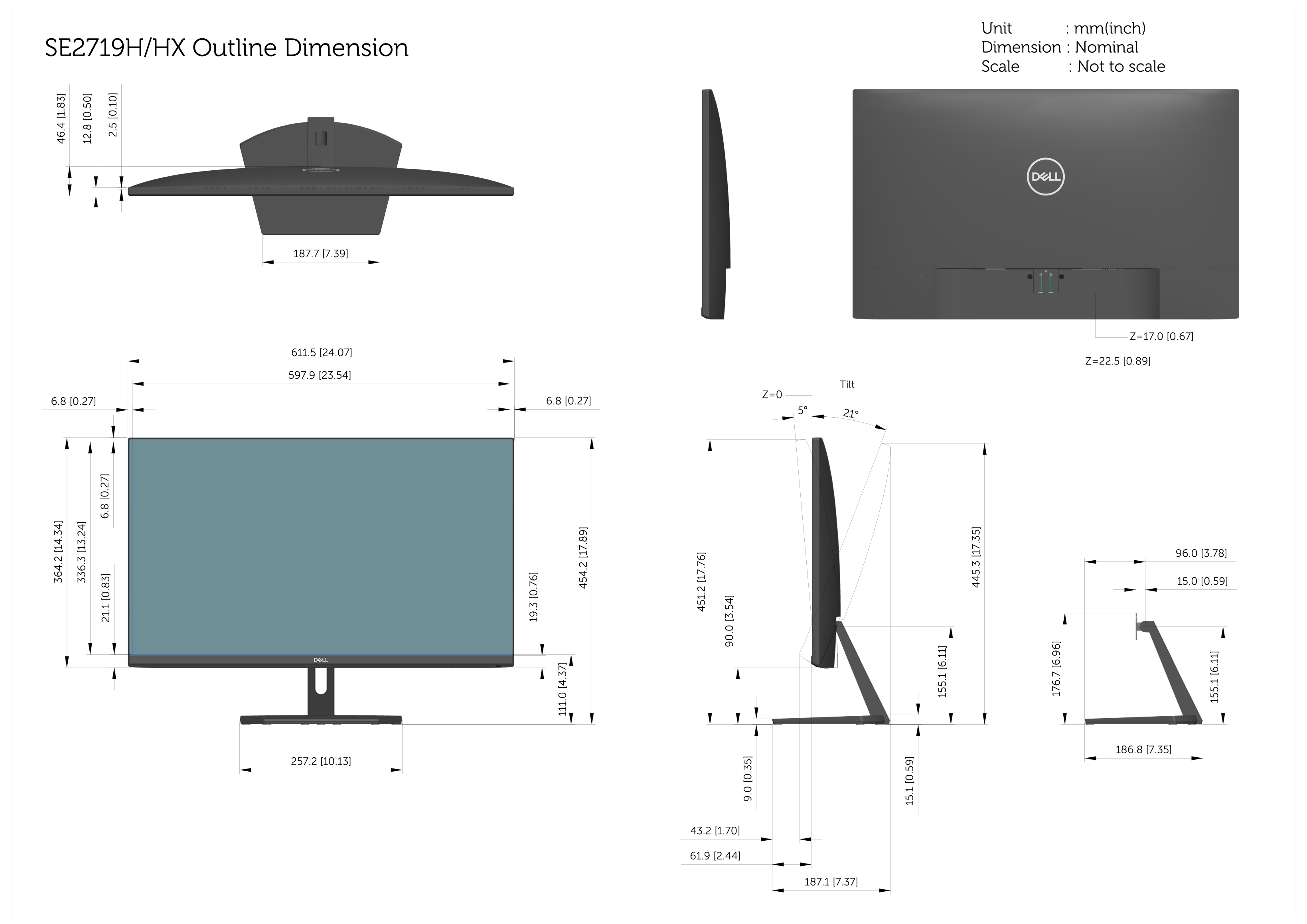

SE2719H/HX Outline Dimension
Scale : Not to scale
Tilt Z=0 6.8 [0.27] 6.8 [0.27] 5° 96.0 [3.78] 15.0 [0.59] 186.8 [7.35]
Page Summary Contents For Dell SE2719H_SE2719HX Monitor User Manual and Specifications
Page 1
Unit : mm(inch) Dimension : Nominal SE2719H/HX Outline Dimension Scale : Not to scale Tilt Z=0 6.8 [0.27] 6.8 [0.27] 5° 96.0 [3.78] 15.0 [0.59] 186.8 [7.35]
Manual Details
| Brand | Dell |
|---|---|
| Pages | 1 |
| File Size | 264.59 KB |
| Published | June 20, 2026 |
4 views
Enter the captcha to get the download link:
Frequently Asked Questions
What are the dimensions of the SE2719H/HX?
The SE2719H/HX measures 187.7mm (7.39) in width and 611.5mm (24.07) in height.
What is the tilt range?
The tilt range is from Z=0 to Z=22.5 (0.89).
What is the maximum height of the unit?
The maximum height is 454.2mm (17.89).
