Dell SE2719H_SE2719HX Monitor User Guide
Summary
This document provides the outline dimension drawing for the Dell SE2719H/HX monitor, showing detailed physical measurements in millimeters and inches. It includes specifications for tilt adjustment, overall dimensions (611.5mm width, 454.2mm height with stand), stand footprint, display depth, and key measurement points for mounting and installation. Designed for workspace planners, IT procurement teams, and users who need precise dimensional data for 27-inch monitor deployment in office or home settings.
Page 1 Text Content
Unit : mm(inch) Dimension : Nominal

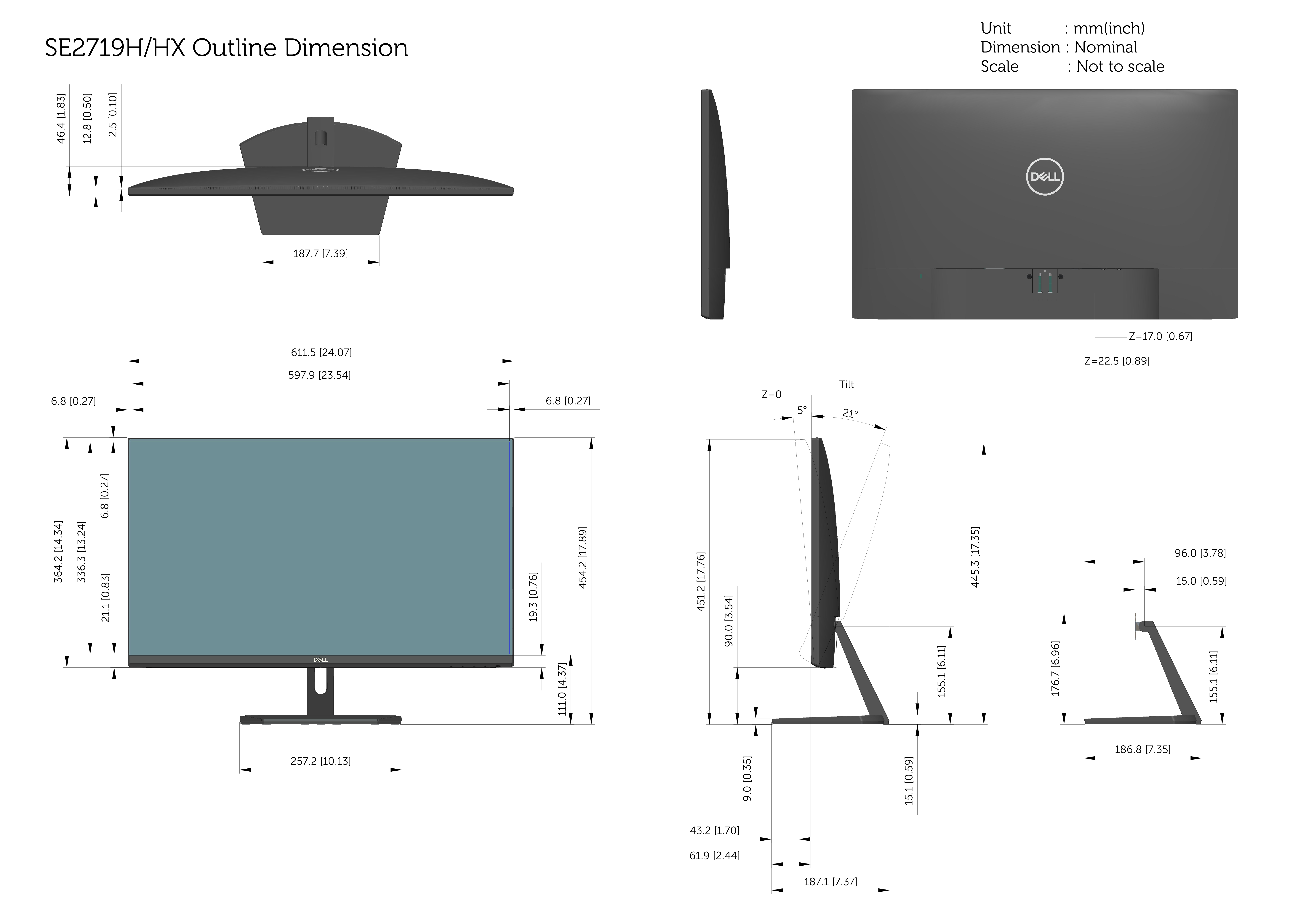

SE2719H/HX Outline Dimension
Scale : Not to scale
Tilt Z=0 6.8 [0.27] 6.8 [0.27] 5° 96.0 [3.78] 15.0 [0.59] 186.8 [7.35]
Page Summary Contents For Dell SE2719H_SE2719HX Monitor User Guide
Manual Details
| Brand | Dell |
|---|---|
| Pages | 1 |
| File Size | 264.59 KB |
| Published | July 02, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the unit of measurement for dimensions?
The dimensions are provided in both millimeters (mm) and inches.
What is the overall length dimension for model SE2719H/HX?
The nominal outline dimension is 611.5 mm or 24.07 inches.
How many distinct view points are documented in the measurements?
There are several dimensions shown, detailing different views and angles (labeled Z=17.0, Z=22.5, and Tilt).
What is the specific measurement for the width at Z=22.5?
The width dimension at Z=22.5 is 597.9 mm or 23.54 inches.
