Dell S2440L Monitor User Guide
Summary
This document provides outline dimension specifications for the Dell S2440L monitor. It includes mechanical drawings with measurements in millimeters and inches, showing physical dimensions, tilt angles, and mounting specifications. The drawing provides precise width, height, depth, and stand dimensions. Intended for system integrators and installation technicians needing exact physical specifications.
Page 1 Text Content
Unit : mm (inch)

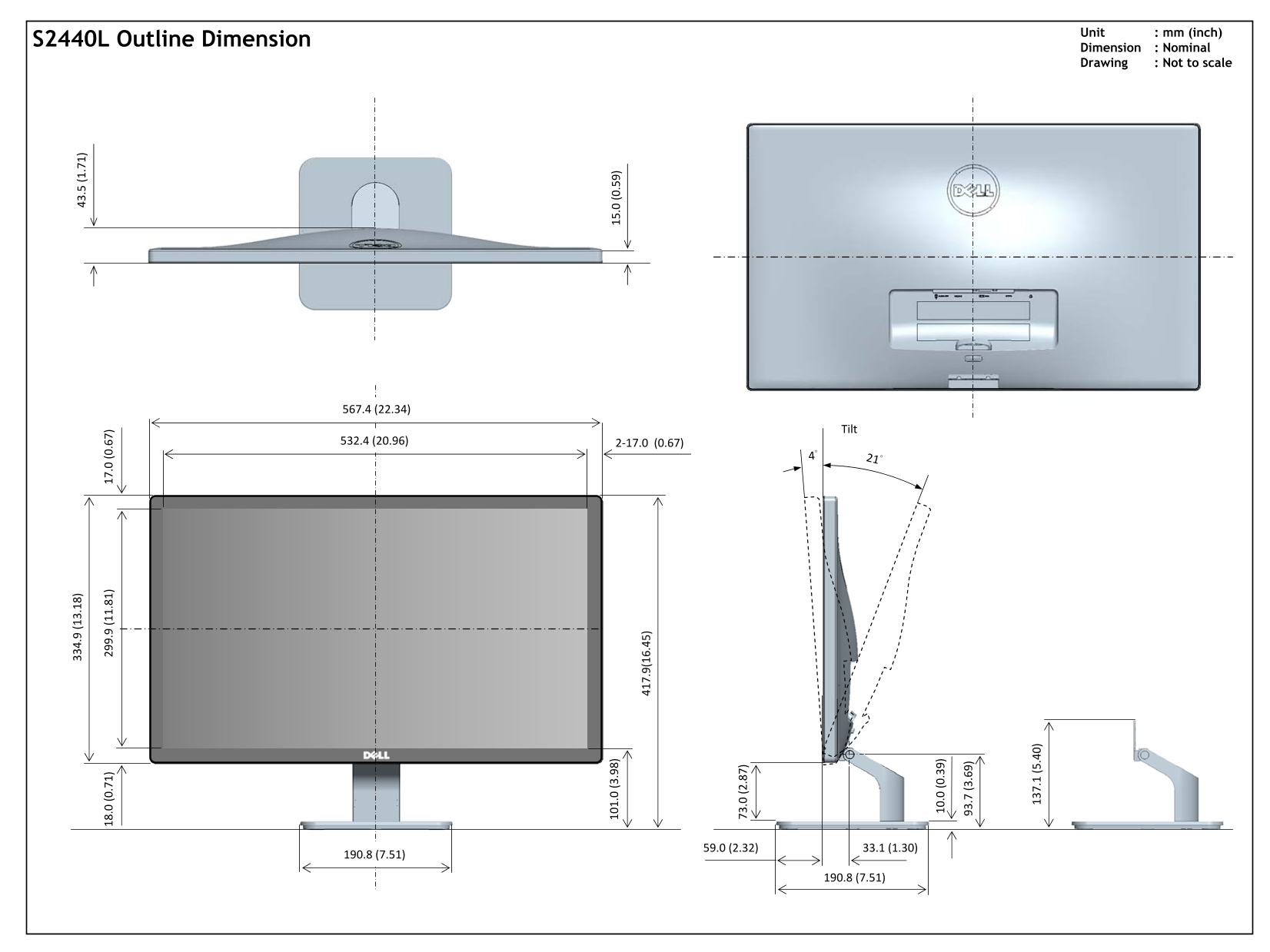

S2440L Outline Dimension
Dimension : Nominal Drawing : Not to scale
Page Summary Contents For Dell S2440L Monitor User Guide
Manual Details
| Brand | Dell |
|---|---|
| Pages | 1 |
| File Size | 128.51 KB |
| Published | June 29, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the overall unit dimensions provided in this manual?
The drawing supplies detailed multi-axis measurements for installation, including maximum dimensions like 567.4 mm (22.34 inches).
How are the angular limits of the product defined?
Specific angles are noted, such as a 4° angle and various degrees listed under the 'Tilt' measurement.
What unit system should I use for calculations?
The dimensions are provided in both metric units (mm) and imperial units (inch).
Are there specific mounting connection points listed?
Yes, key structural measurements including attachment coordinates like 190.8 mm (7.51 inches) are defined.
