Dell S2440L Monitor Product Image Guide
Summary
This comprehensive technical manual provides detailed engineering blueprints defining the precise outline dimensions of the product. It covers critical specifications, including measurements at various tilts and angles, presented clearly in both metric units (mm) and imperial units (inches). This guide is essential for manufacturers, industrial designers, and specialized engineers who require accurate dimensional data for integration, prototyping, or assembly processes.
Page 1 Text Content
Unit : mm (inch)

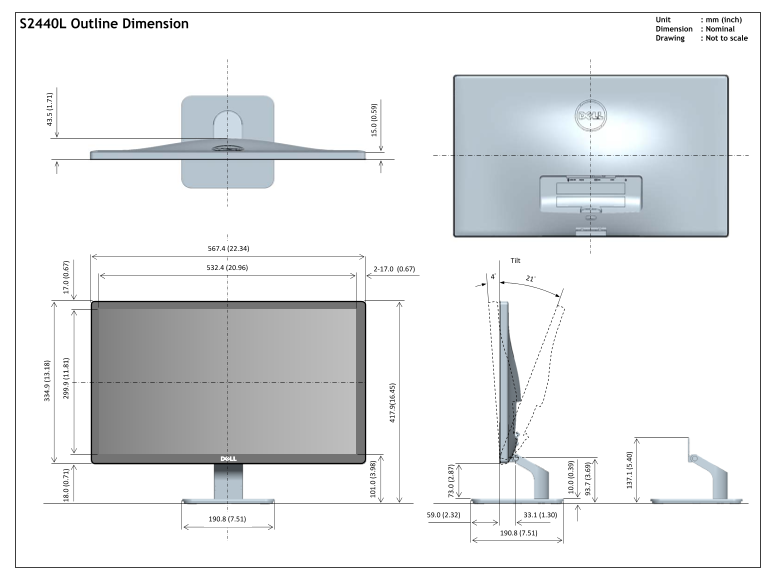

S2440L Outline Dimension
Dimension : Nominal Drawing : Not to scale
Page Summary Contents For Dell S2440L Monitor Product Image Guide
Manual Details
| Brand | Image |
|---|---|
| Pages | 1 |
| File Size | 128.45 KB |
| Published | May 29, 2026 |
