Dell S2721HN Monitor User Guide
Summary

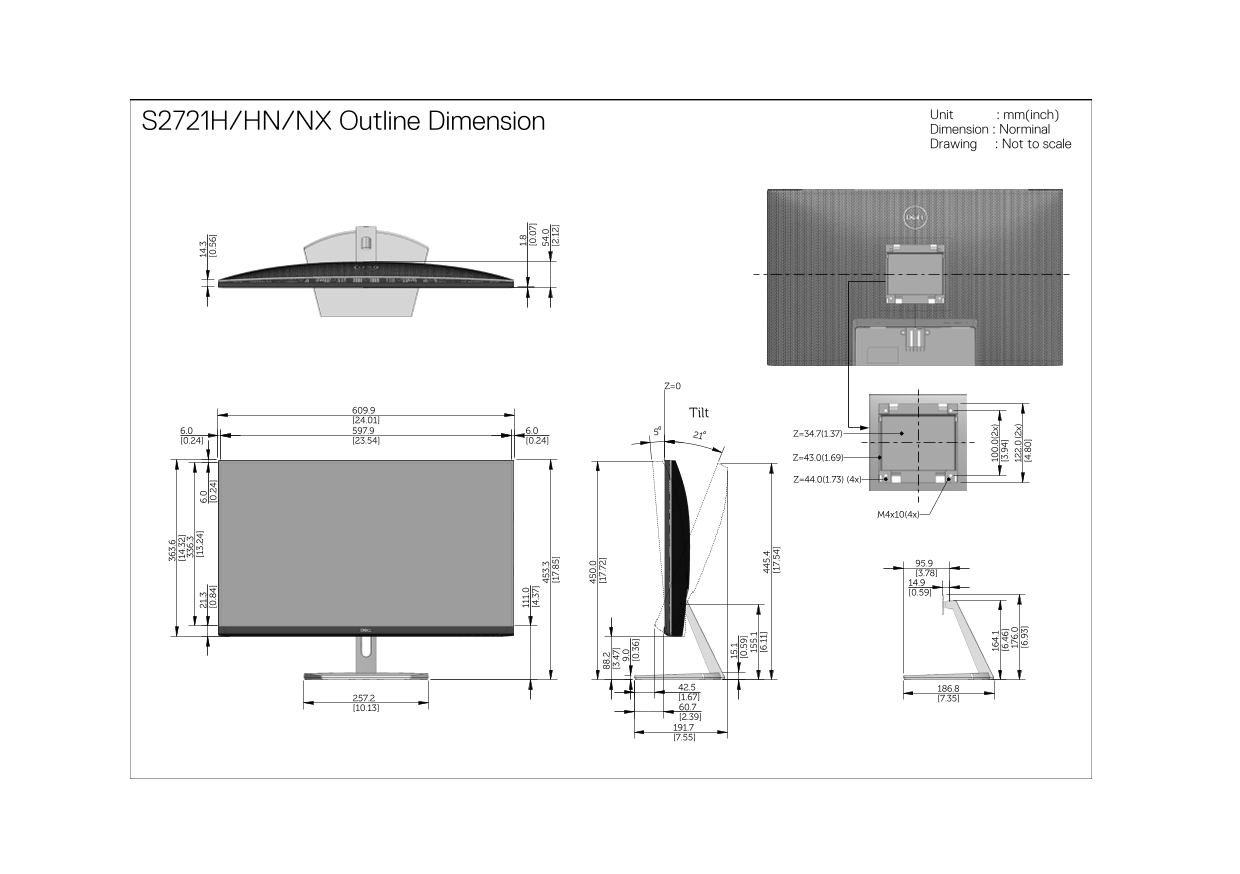

This document provides the outline dimension drawing for the Dell S2721H/HN/NX monitor, showing detailed physical measurements in millimeters and inches. It includes specifications for tilt adjustment, VESA mounting pattern (M4x10, 100x100mm), and overall monitor dimensions including width (609.9mm), height with stand, and depth. The drawing illustrates the rear view mounting hole positions and stand footprint dimensions. Designed for workspace planners and IT procurement teams requiring precise dimensional data for 27-inch monitor installation.
Page 1 Text Content
Unit : mm(inch)
S2721H/HN/NX Outline Dimension Dimension : Norminal
Drawing : Not to scale
609.9 Tilt [24.01]
Page Summary Contents For Dell S2721HN Monitor User Guide
Manual Details
| Brand | Dell |
|---|---|
| Pages | 1 |
| File Size | 247.65 KB |
| Published | July 01, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the mounting requirements?
The unit requires four M4x10 fasteners, suggesting bracket installation is necessary.
What are the approximate horizontal and vertical dimensions?
One major dimension listed is 363.6 mm (14.32 inches) horizontally, with another dimension of 257.2 mm (10.13 inches).
Are there any specific cutout dimensions I need to accommodate?
Yes, the drawing indicates several internal dimensions including 42.5 mm and a primary width dimension of 191.7 mm (7.55 inches).
