Dell SE2419H_SE2419HX Monitor User Manual
Summary
This dimensional outline drawing provides the physical measurements and specifications for the Dell SE2419H and SE2419HX monitors. It details the monitor's overall dimensions including width, height, depth, stand dimensions, tilt range, and mounting measurements in both millimeters and inches. The drawing serves as a reference for installation planning, VESA mounting considerations, and workspace fit assessment for users and IT administrators deploying these Dell display models.
Page 1 Text Content
Unit : mm(inch) Dimension : Nominal

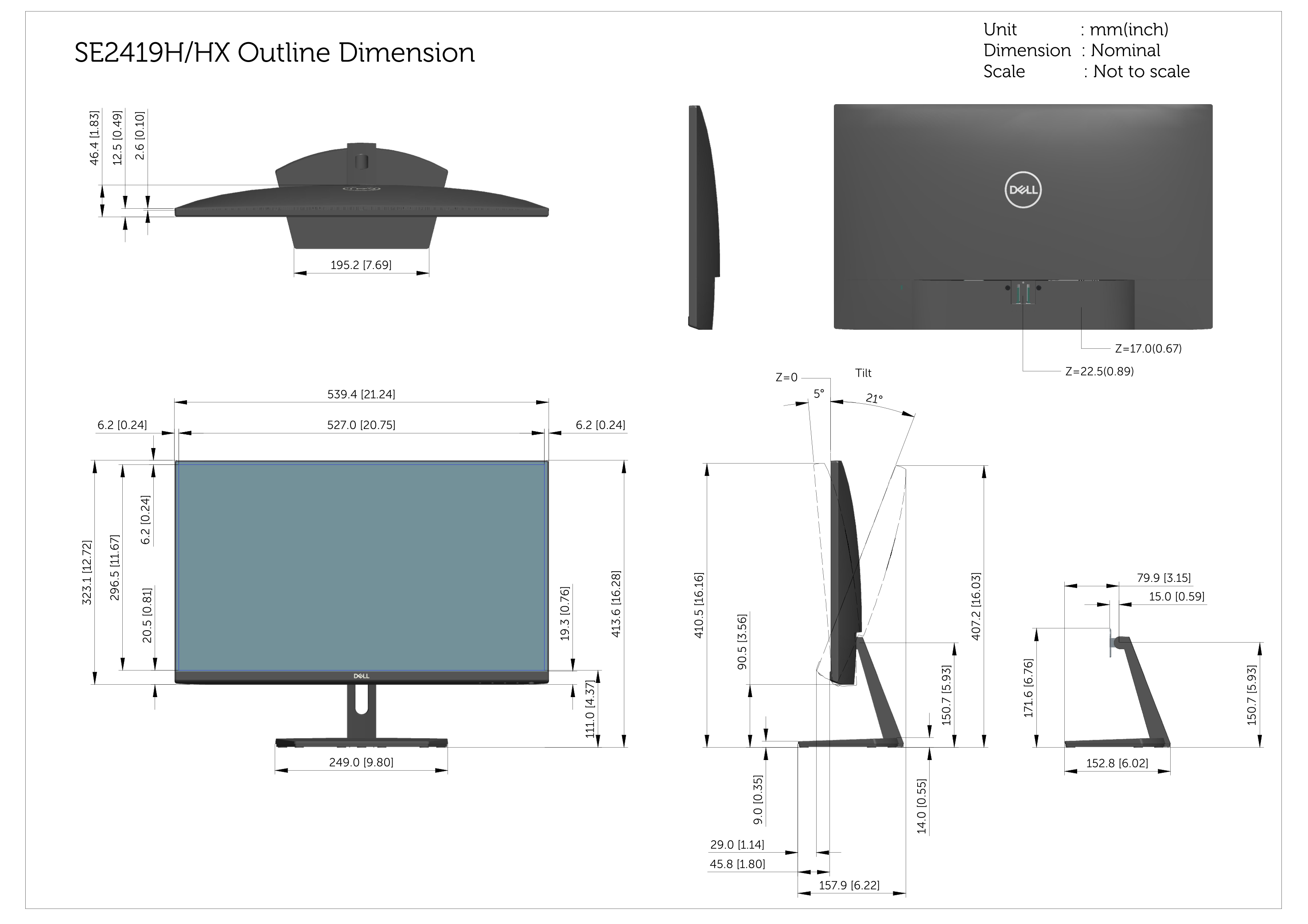

SE2419H/HX Outline Dimension Scale : Not to scale 195.2 [7.69]
Z=17.0(0.67) Tilt Z=22.5(0.89) Z=0 539.4 [21.24] 5°
Page Summary Contents For Dell SE2419H_SE2419HX Monitor User Manual
Manual Details
| Brand | Dell |
|---|---|
| Pages | 1 |
| File Size | 172.93 KB |
| Published | July 01, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the overall outer dimensions indicated by the scale?
The maximum listed corresponding dimension measurements are 413.6 [16.28] and 407.2 [16.03].
How is a specific vertical depth coordinate defined?
One specified depth coordinate is Z=17.0 (0.67).
What are the dimensions shown at the starting measurement level (Z=0)?
At Z=0, key dimensions include 527.0 [20.75], an intermediate length of 249.0 [9.80], and a segment height of 15.0 [0.59].
