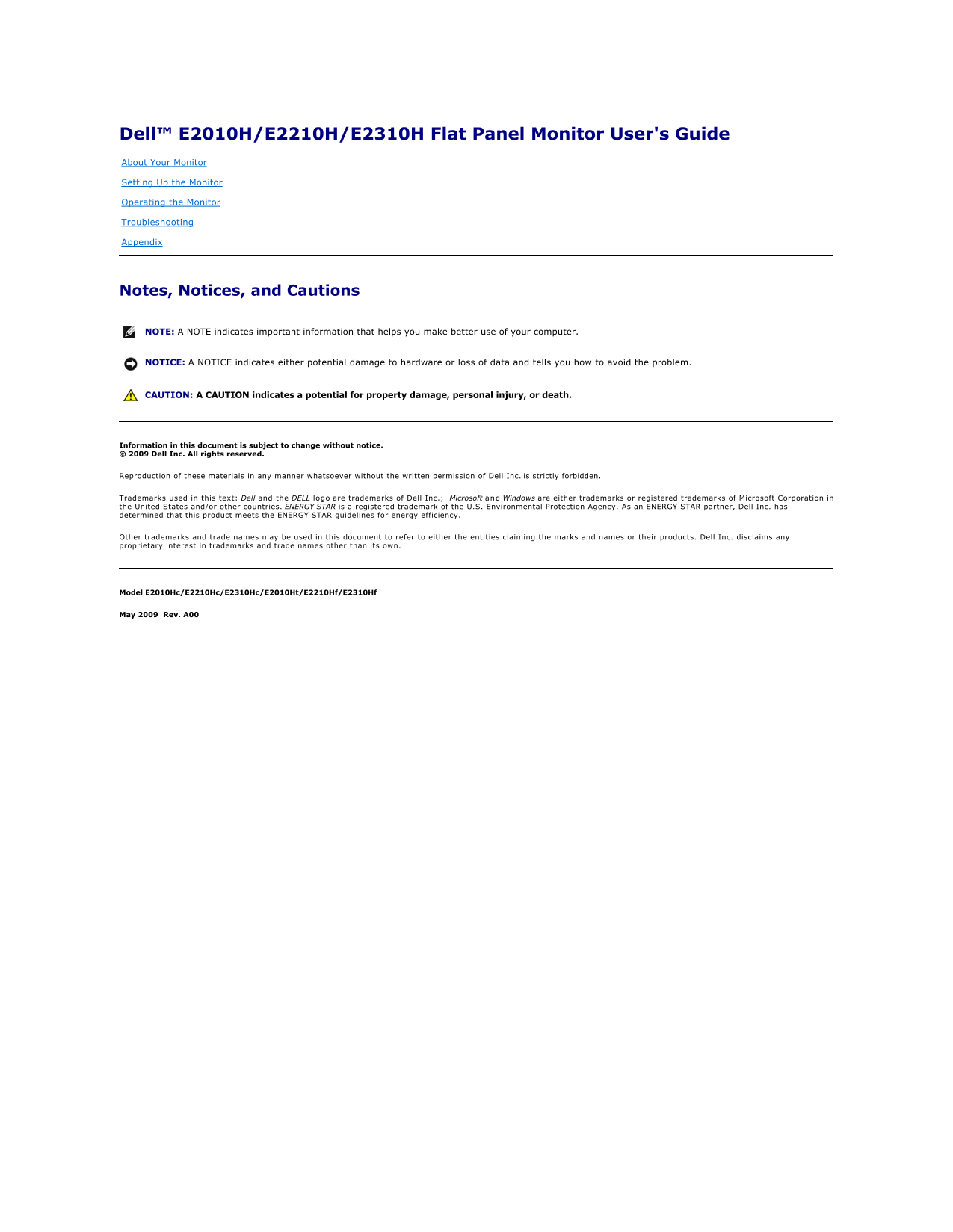

Dell™ E2010H/E2210H/E2310H Flat Panel Monitor User's Guide About Your Monitor Setting Up the Monitor Operating the Monitor Troubleshooting Appendix Notes, Notices, and Cautions NOTE: A NOTE indicates ...
Page 2
Back to Contents Page About Your Monitor Dell™ E2010H/E2210H/E2310H Flat Panel Monitor User's Guide Package Contents Product Features Identifying Parts and Controls Monitor Specifications ...
Page 3
VGA Cable (attached to the monitor) Drivers and Documentation media Quick Setup Guide Safety Information Product Features The Dell™ E2010H/E2210H/E2310H flat panel display has an active matrix, thin-f...
Page 4
1. Shortcut Key 1 2. Shortcut Key 2 3. OSD Menu 4. Exit 5. Power On/Off Back View Label Description Use 1 Regulatory rating label List the regulatory approvals. 2 Barcode serial number label Refer to ...
Page 5
Left Side Right Side Bottom View Label Description Use 1 AC power connector To connect the monitor power cable. VGA connector To connect your computer to the monitor using a VGA cable. DVI connect...
Page 6
VESA Modes Horizontal Sync Vertical Sync Video Power Indicator Power Consumption Normal operation Active Active Active Blue 29 W Active-off mode Inactive Inactive Blank Amber Less than 1 W Switch off ...
Page 7
TMDS RX2- TMDS RX2+ TMDS Ground Floating Floating DDC Clock DDC Data Floating TMDS RX1- TMDS RX1+ TMDS Ground Floating Floating +5V/+3.3V power Self test Hot Plug Detect TMDS RX0- TMDS RX0+ TMDS Grou...
Page 8
Resolution Specifications Dell E2010H/E2210H/E2310H Flat Panel Model number Monitor Scan range Horizontal 30 k Hz to 83 k Hz (automatic) Vertical 50 Hz to 75 Hz (automatic) 1600 x 900 at 60 Hz (For E2...
Page 9
Depth 151.9 mm (5.98 inches) 158.9 mm (6.26 inches) 164.0 mm (6.46 inches) Dimensions: (without stand) Height 287.6 mm (11.32 inches) 306.5 mm (12.07 inches) 325.7 mm (12.82 inches) Width 481.2 mm (1...
Page 10
Maintenance Guidelines Caring for Your Monitor CAUTION: Read and follow the safety instructions before cleaning the monitor. CAUTION: Before cleaning the monitor, unplug the monitor power cable from ...
Page 11
Back to Contents Page Appendix Dell™ E2010H/E2210H/E2310H Flat Panel Monitor User's Guide Safety Instructions FCC Notice (U.S. Only) and Other Regulatory Information Contacting Dell CAUTION: Saf...
Page 12
Back to Contents Page Setting Up Your Monitor Dell™ E2010H/E2210H/E2310H Flat Panel Monitor If you have a Dell™ desktop or a Dell™ portable computer with internet access 1. Go to http://support.dell....
Page 13
Back to Contents Page Setting Up Your Monitor Dell™ E2010H/E2210H/E2310H Flat Panel Monitor If you have a non Dell™ desktop, portable computer, or graphics card 1. Right-click on the desktop and click...
Page 14
Back to Contents Page Operating the Monitor Dell™ E2010H/E2210H/E2310H Flat Panel Monitor User's Guide Using the Front Panel Controls Using the On-Screen Display (OSD) Menu Setting the Maximum R...
Page 15
Using the On-Screen Display (OSD) Menu Accessing the Menu Syste 1. Press the button to open the OSD menu and display the main menu. Main Menu 2. Press the and buttons to toggle between options in the...
Page 16
Auto Use this key to activate automatic setup and adjust menu. The following dialog appears on a black screen as the monitor self Adjust Auto Adjustment allows the monitor to self-adjust to the incomi...
Page 17
Standard: Loads the monitor's default color settings. This is the default preset mode. Multimedia: Loads color settings ideal for multimedia applications. Game: Loads color settings ideal for most gam...
Page 18
Press to go back to the main menu. Horizontal Position Use the or buttons to adjust image left and right. Minimum is '0' (-). Maximum is '100' (+). Vertical Position Use the or buttons to adjust image...
Page 19
Menu Timer Allows you to set the time for which the OSD remains active after you press a key on the monitor. Use the and keys to adjust the slider in 1 second increments, from 5 to 60 seconds. Menu Lo...
Page 20
Press to go back to the main menu. OSD Warning Messages When the monitor does not support a particular resolution mode you will see the following message: E2010H: This means that the monitor cannot sy...
Page 21
Activate the computer and wake up the monitor to gain access to the OSD If you press any button other than the power button the following messages will appear depending on the selected input: If eithe...
Page 22
Tilt With the built-in pedestal, you can tilt the monitor for the most comfortable viewing angle. NOTE: The stand is detached when the monitor is shipped from the factory. Back to Contents Page
Page 23
Back to Contents Page Setting Up Your Monitor Dell™ E2010H/E2210H/E2310H Flat Panel Monitor Setting the display resolution to1600 x 900 (for E2010H) or 1920 x 1080 (for E2210H/E2310H) (Maximum) For op...
Page 24
Dell™ E2010H/E2210H/E2310H Flat Panel Monitor User Guide Setting the display resolution to 1600 x 900 (for E2010H) or 1920 x 1080(for E2210H/E2310H) (Maximum) Information in this document is subject ...
Page 25
Back to Contents Page Setting Up the Monitor Dell™ E2010H/E2210H/E2310H Flat Panel Monitor User's Guide Attaching the Stand Connecting Your Monitor Attaching the Dell Soundbar (Optional) Remov...
Page 26
CAUTION: The Graphics are used for the purpose of illustration only. Appearance of the computer may vary. Attaching the Dell Soundbar(Optional) NOTICE: Do not use with any device other than the Dell S...
Page 27
Wall Mounting (Optional) (Screw dimension: M4 x 10mm). Refer to the instructions that come with the VESA compatible base mounting kit. 1. Place the monitor panel on soft cloth or cushion on stable fla...
Page 28
Back to Contents Page Troubleshooting Dell™ E2010H/E2210H/E2310H Flat Panel Monitor Self-Test Common Problems Product Specific Problems CAUTION: Before you begin any of the procedures in this se...
Page 29
A. Ensure that the screen is clean (no dust particles on the surface of the screen). B. Unplug the video cable from the back of the computer or monitor. The monitor then goes into the self-test mode. ...
Page 30
Settings OSD if the Color Management is turned off. Change the Input Color Format to PC RGB or YPb Pr in the Advance Setting OSD. Run the built-in diagnostics. Image retention from a static Faint shad...
