Dell S500 S500wi RS232 Protocol Owner's Manual
Summary
Dell S500/S500wi Projector RS232 Protocol Document. Technical specification for serial control of Dell S500/S500wi projectors via RS232 interface. Covers pin assignment (RS232 D-SUB 9-pin and MINI DIN-6), communication settings (19200 bps, 8 data bits, no parity, 1 stop bit, no flow control), command syntax (Header, Address Code, Size of Payload, CRC16, MsgID, MsgSize, Command Code, optional Value), and response message format including success/error codes and status reporting for power, lamp hour, and system status queries.
Page 1 Text Content

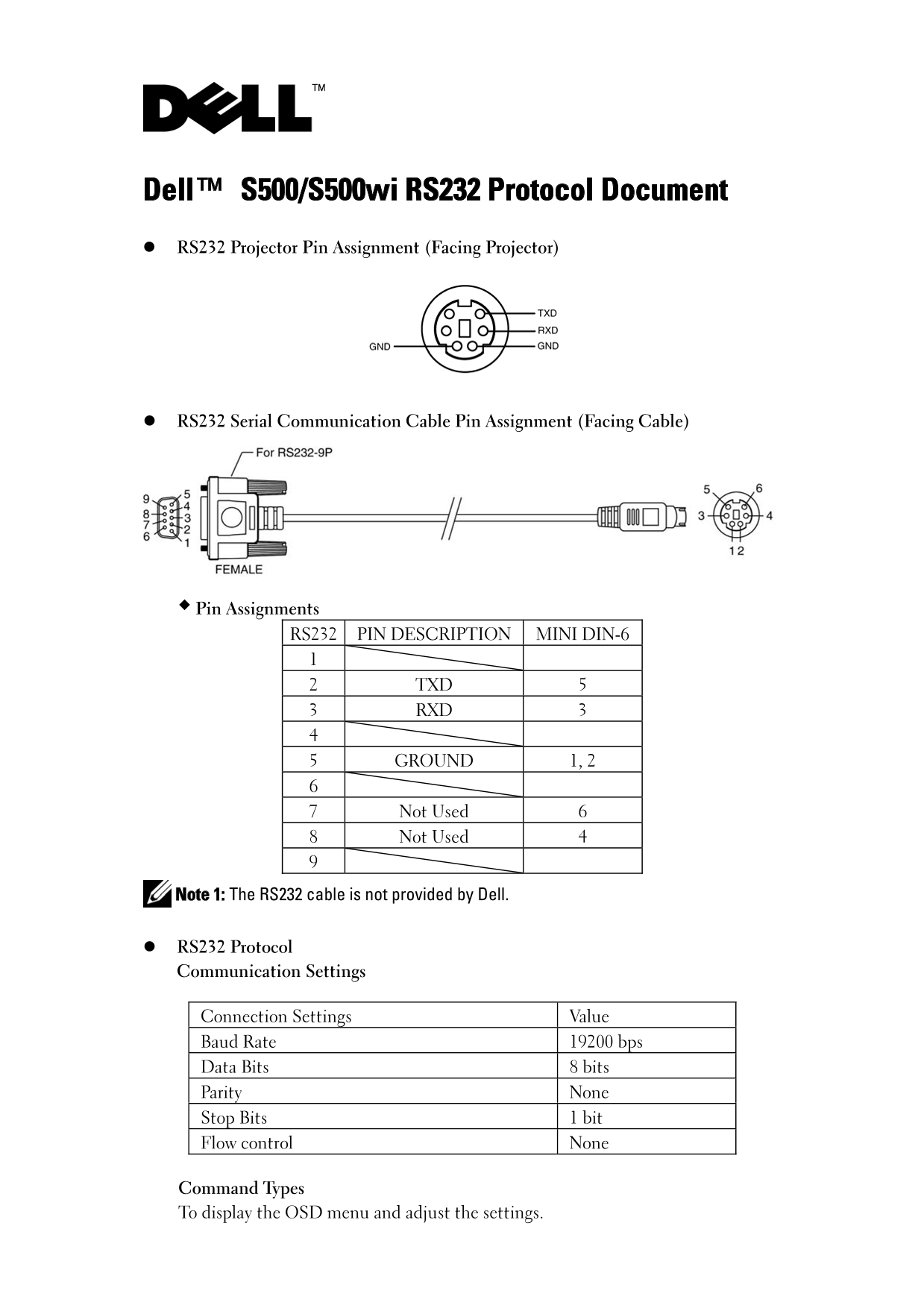

Dell™ S500/S500wi RS232 Protocol Document RS232 Projector Pin Assignment (Facing Projector)
RS232 Serial Communication Cable Pin Assignment (Facing Cable)
Pin Assignments RS232 PIN DESCRIPTION MINI DIN-6
2 TXD 5 3 RXD 3
5 GROUND 1, 2
7 Not Used 6 8 Not Used 4
Note 1: The RS232 cable is not provided by Dell.
RS232 Protocol Communication Settings
Connection Settings Value Baud Rate 19200 bps Data Bits 8 bits Parity None Stop Bits 1 bit Flow control None
Command Types To display the OSD menu and adjust the settings.
Page Summary Contents For Dell S500 S500wi RS232 Protocol Owner's Manual
Manual Details
| Brand | Dell |
|---|---|
| Pages | 6 |
| File Size | 196.22 KB |
| Published | July 03, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the required RS232 communication settings?
The connection must use a Baud Rate of 19200 bps, 8 data bits, None parity, 1 stop bit, and no flow control.
How can I check the projector's current lamp hour status?
Send the Lamp-Hours command (Code: 0x2f). A successful response will have Byte0 of 0x00, with the LSB in Byte2 and MSB in Byte3.
What steps are necessary to power on the projector remotely?
The Power On command sequence is: 0xefbe, 0x10, 0x0005, 0xffc6, 0x1111, 0x0001, 0x01.
What do the response codes mean if a manual command fails?
Byte0=0x00 means Success; Byte0=0x01 indicates an Invalid Command; and Byte0=0x02 signals an Error Command (e.g., CRC error).
