Dell S3422DWG Monitor Outline Dimension
Summary

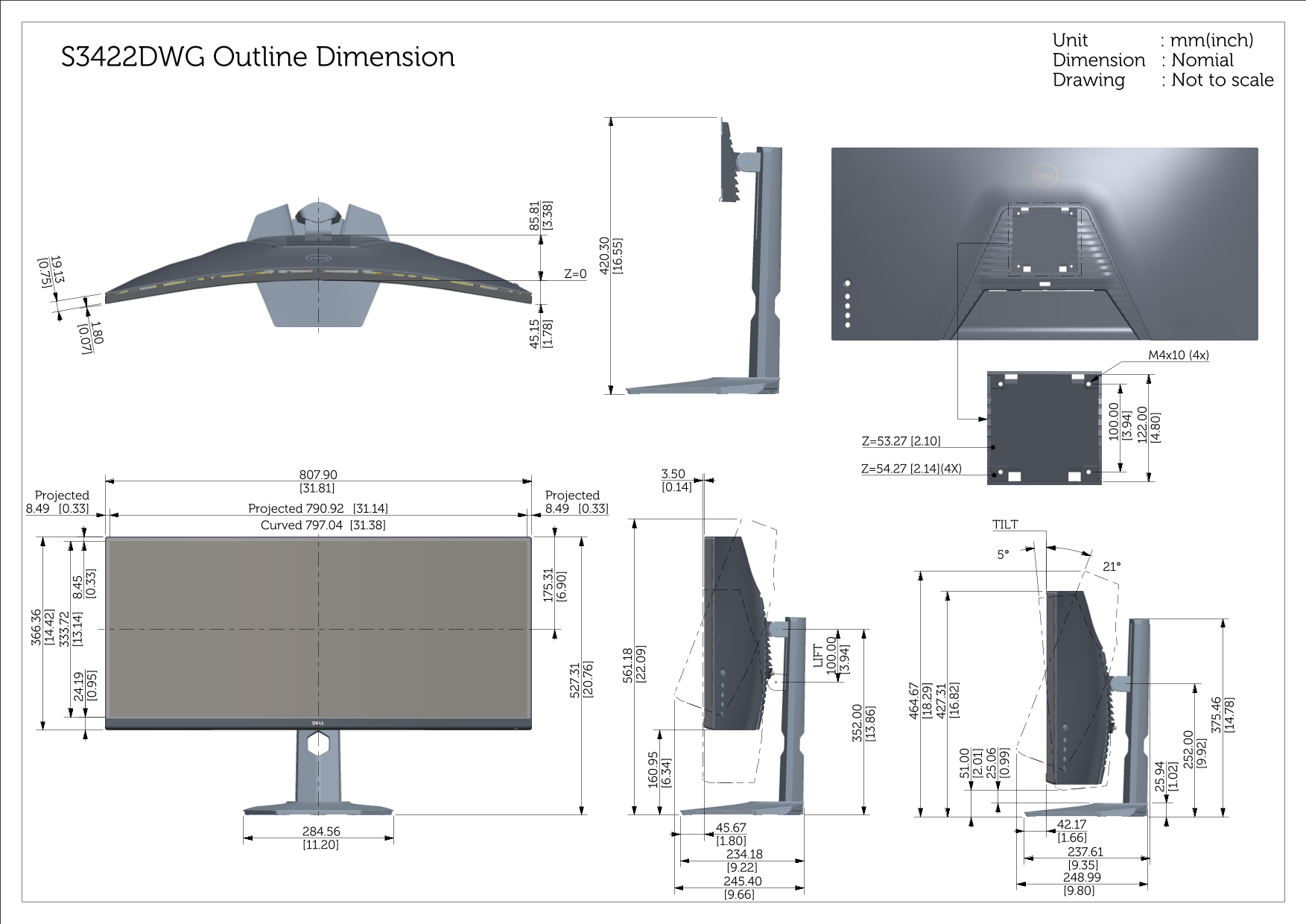

Dell S3422DWG 34-inch curved monitor mechanical outline dimension drawing specifying physical measurements including tilt, swivel, lift, and VESA mount dimensions in millimeters and inches. Intended for hardware engineers and mount manufacturers needing precise dimensional data for installation planning.
Page 1 Text Content
Unit : mm(inch)
S3422DWG Outline Dimension 3. Dimension : Nomial
.1 [1 3. .4 Drawing : Not to scale [0 .9 [0 .3 3]
Projected Projected 8.49 [0.33] [31.14] 8.49 [0.33]Projected 790.92
Curved 797.04 [31.38] TILT
LI FT
Page Summary Contents For Dell S3422DWG Monitor Outline Dimension
Manual Details
| Brand | Dell |
|---|---|
| Pages | 1 |
| File Size | 432.10 KB |
| Published | June 24, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the projected dimensions of the unit?
The projected dimensions are 807.90 mm (31.81 inch).
What is the total height range of the unit?
The unit can lift up to 464.67 mm (18.29 inch) high.
What is the minimum width of the unit?
The minimum width is 160.95 mm (6.34 inch).
What is the maximum height of the unit?
The maximum height is 561.18 mm (22.09 inch).
What is the total depth of the unit?
The total depth is 420.30 mm (16.55 inch).
