Unit : mm [inch] Dimension : Nominal

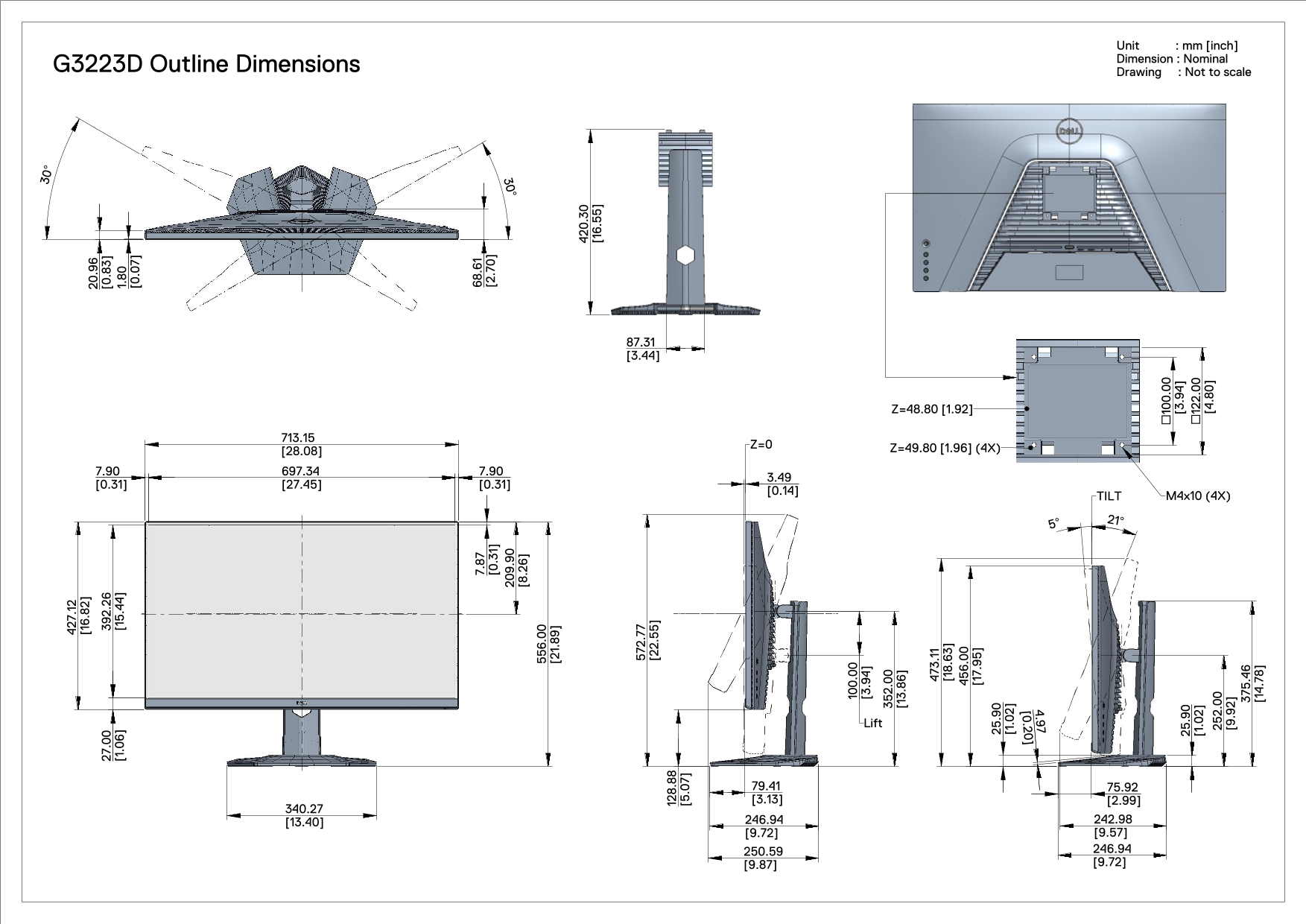

G3223D Outline Dimensions
7. Drawing : Not to scale [1 .8 2]
TILT M4x10 (4X)
