Dell SE3223Q Monitor Outline Dimension User's Guide
Summary
The SE3223Q Outline Dimensions document provides technical specifications and physical measurements for a display device. It includes dimensional drawings with measurements in millimeters and inches, mounting specifications (M4x10), tilt angles, and structural dimensions. The document serves as an engineering reference for product integration and installation planning. Target users are system integrators, installation engineers, and product designers requiring precise physical specifications.

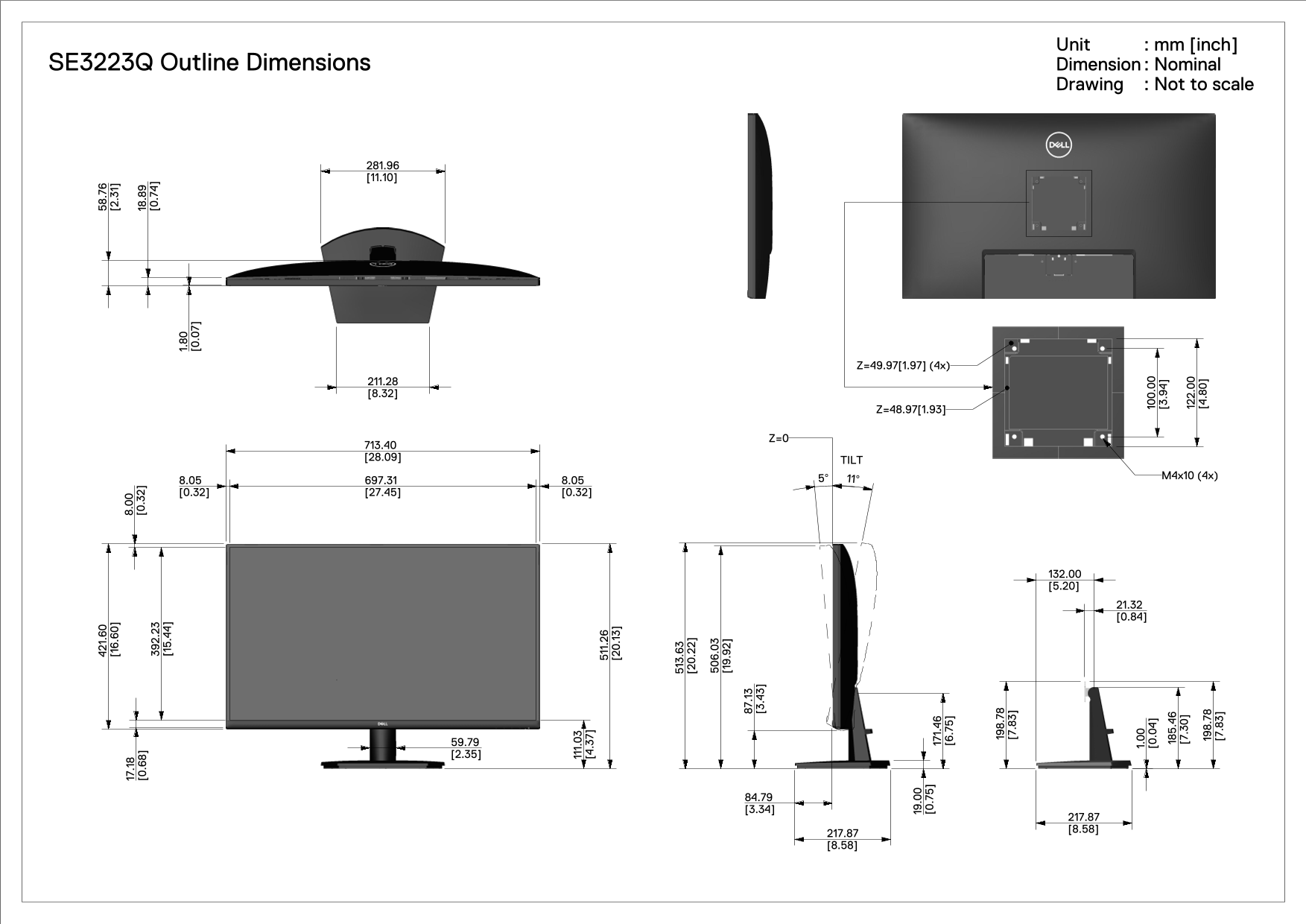

Page 1 Text Content
Unit : mm [inch]
SE3223Q Outline Dimensions Dimension : Nominal
Drawing : Not to scale
713.40 [28.09] TILT
Page Summary Contents For Dell SE3223Q Monitor Outline Dimension User's Guide
Manual Details
| Brand | Dell |
|---|---|
| Pages | 1 |
| File Size | 242.17 KB |
| Published | July 01, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the overall dimensions of the SE3223Q?
The nominal outer dimensions are approximately 713.40 mm (28.09 inches) by 511.26 mm (20.13 inches).
Does the SE3223Q support tilt mounting?
Yes, it is designed with four M4x10 tilt mounts.
What are the materials specifications for the unit?
The document provides dimensional drawings but lacks explicit material composition details.
