The S3423DWC is a curved monitor with detailed outline dimension specifications in this technical drawing. It includes precise measurements in millimeters and inches, covering physical dimensions, tilt angles, and VESA mounting specifications with M4x10 screws. Target users are system integrators, installation technicians, and IT deployment teams planning monitor installations.
Page 1 Text Content
Unit : mm(inch)

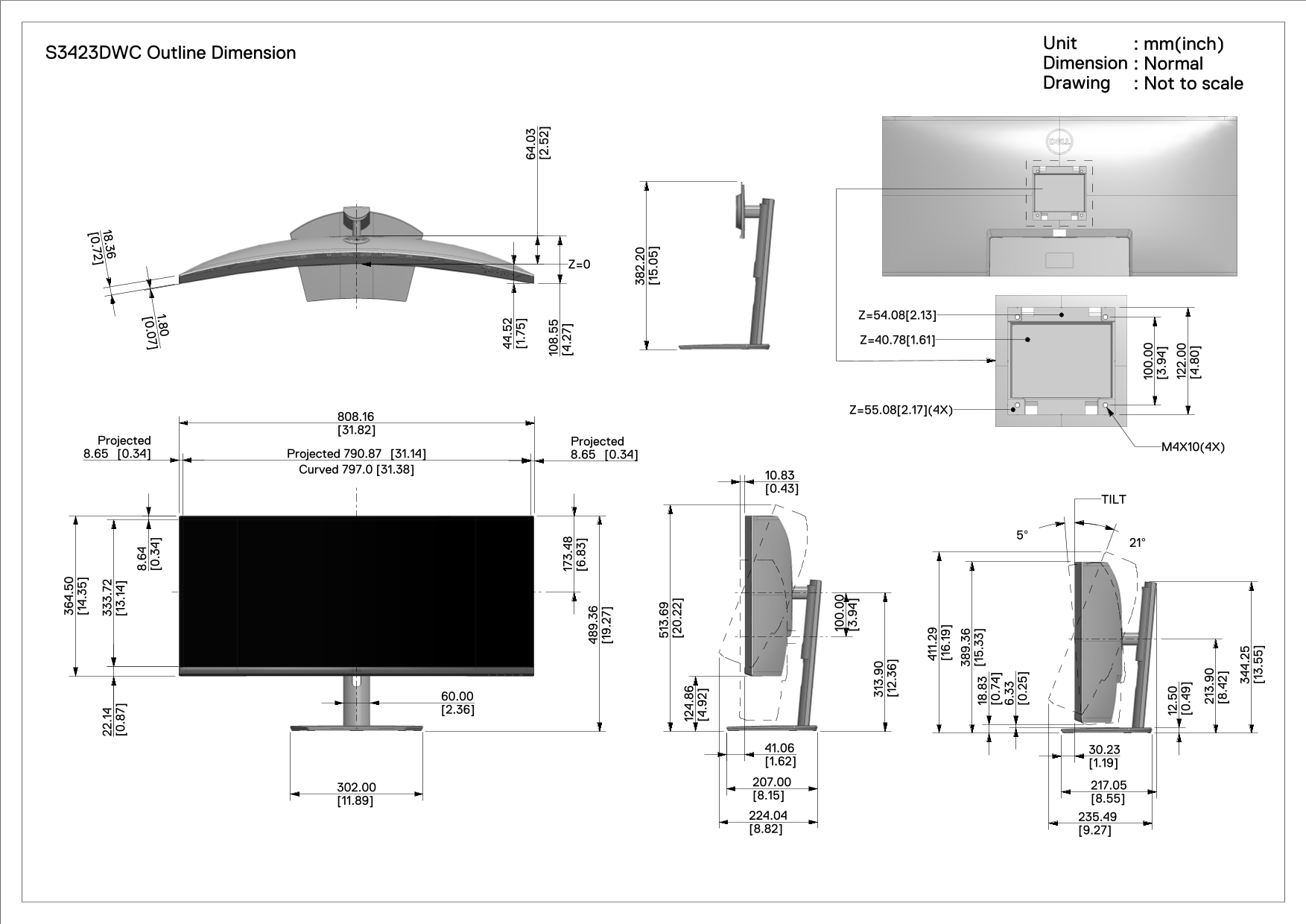

S3423DWC Outline Dimension
Dimension : Normal
4. [1 4. Drawing : Not to scale
Projected Projected
8.65 [0.34] Projected 790.87 [31.14] 8.65 [0.34]
Curved 797.0 [31.38]
Page Summary Contents For Dell S3423DWC Monitor Outline Dimension Manual - User Guide
Manual Details
| Brand | Dell |
|---|---|
| Pages | 1 |
| File Size | 368.47 KB |
| Published | July 01, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What material is used for the outline dimensions?
The detailed technical drawing provides the outline dimensions and projected views.
Are there mounting holes specified?
Yes, the plans show a section for M4x10 (4X) projections.
What are the approximate overall length measurements?
The total length data ranges from approximately 808.16 mm to 513.69 mm depending on the view and components.
Where is the curved profile indicated?
The Curved section specifies dimensions starting at coordinates like (797.0 [31.38]) and continues through various measurements.
