Dell S3222DGM Monitor Simplified Service Manual

Summary

This document is the service manual for the Dell S3222DGM 32-inch LCD Monitor. It provides important safety notices, proper service procedures, and cautions for service personnel. The manual covers safety warnings regarding laser products, substitute replacement parts, and design modification restrictions. It is intended for authorized service technicians and repair professionals who perform maintenance, troubleshooting, and component replacement on Dell monitors.

📄 Preview PAGE OF 22

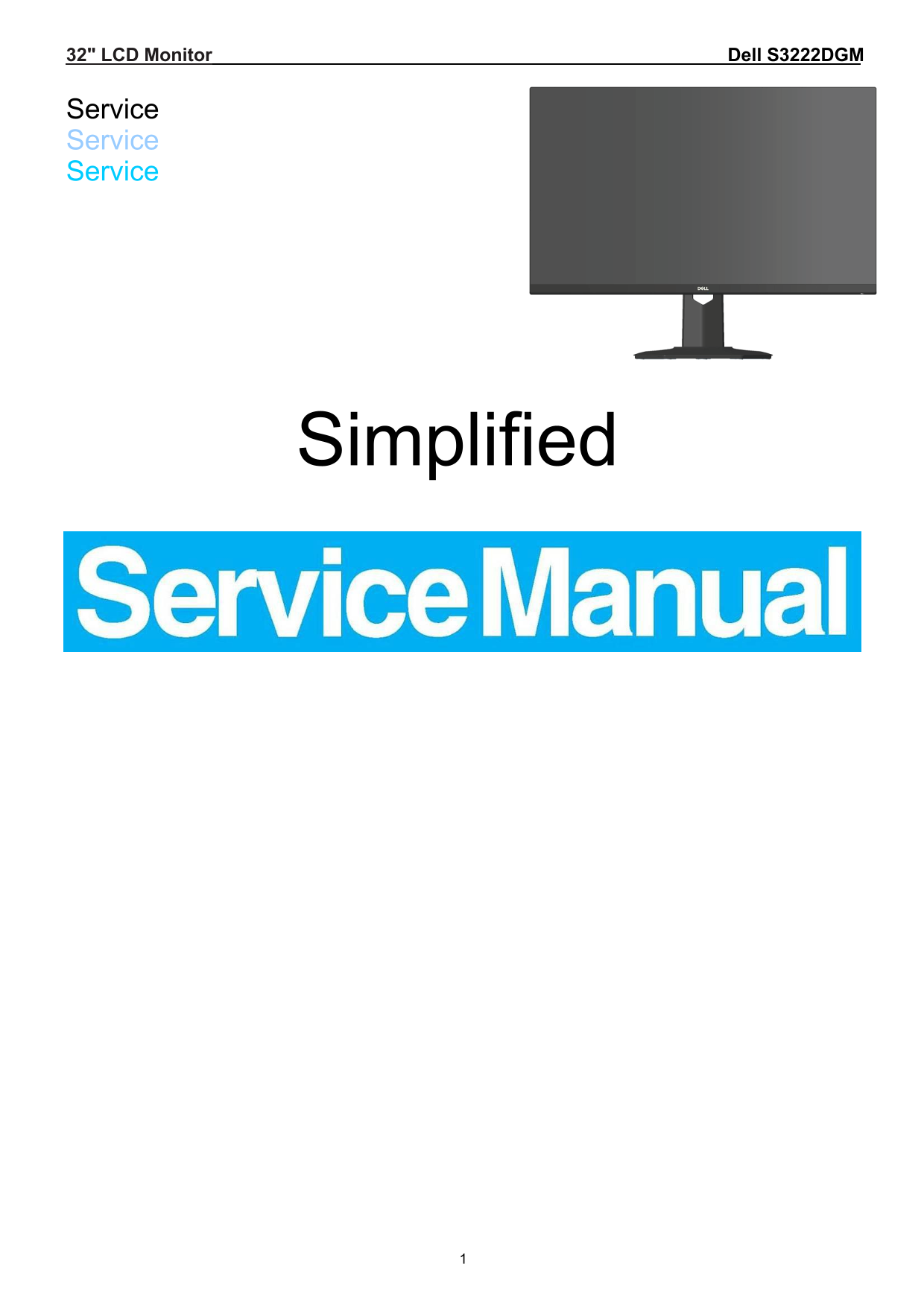

Page 1 Text Content

32" LCD Monitor Dell S3222DGM

Service Service Service

Simplified

Page Summary Contents For Dell S3222DGM Monitor Simplified Service Manual

Page 1 32" LCD Monitor Dell S3222DGM Service Service Service Simplified
Page 2 Important Safety Notice Proper service and repair is important to the safe, reliable operation of all DELL Company Equipment. The service procedures recommended by DELL and described in this service m...
Page 3 1. Exploded view diagram with list of items
Page 4 No. Part No. Description Q’ty 1 Q23G315570001500DR LOGO DELL 22*7.37*0.24 1 2 Q34GA0940VH01S0130 DECO_BEZEL L315WR-Edell2Q-p2 1 3 Q15G452220110100YX BEZEL_BTM 1 4 Q16G00036520000ADG SPONGE 1 5 Q34GA09...
Page 5 2. Wiring connectivity diagram Connector Ass’y PN: Connector Ass’y PN: Connector Ass’y PN: 395G176W01079300HF 395GH20011AM0070HF 395G179X51N56900HF Connector Ass’y PN: Connector Ass’y PN: Connector As...
Page 6 3. Mechanical Instruction Tools Required List the type and size of the tools that would typically can be used to disassemble the product to a point where components and materials requiring selective t...
Page 7 3.1 Disassembly Procedures: Step Figure Remark Turn off power, Unplug S1.Before external cables from disassemble product Put the MNT the curve cushion. S2.Remove the STAND-BASE Push the button to ASS’...
Page 8 Tear off 4 pieces of aluminum foil and 3 S4.Tear off the pieces of tapes. tapes and disconnect the Disconnect the cables connectors from the connectors. Use a Philips-head screwdriver to remove 3 scre...
Page 9 Use a Philips-head screwdriver to remove 6 screws for unlocking the main frame (No.1~4 screw size=M3x4, Torque: 3±0.5kgf.cm) Disconnect the FFC cable Remove the mylar and connector S6. Remove the main...
Page 10 Use a Philips-head screwdriver to remove S7. Remove the 14 screws for unlocking Panel and middle the middle frame frame (No.1~13 screw size=M3x4, Torque=3±0.5kgfxcm)
Page 11 Use a Philips-head screwdriver to remove 5 screws to remove the S8.Remove the DECO_BEZEL. DECO_BEZEL (No.1~3 screw size=M2x2.5, Torque=1±0.2kgf.cm) Use a Philips-head screwdriver to remove 3 screws fo...
Page 12 3.2 Assembly Procedures: Step Figure Remark Use a Philips-head screwdriver to lock 3 screws for tighten the key board (No.1~3 screw size=M2.5x2, Torque=0.9±0.4kgf.cm) S1.Assembly the KEY BOARD Use a P...
Page 13 Connect the connectors Use a Philips-head screwdriver to lock 8 S3.Assembly the screws for locking the main board and Main board, Power power board board (No.1~7 screw size=D3x6, Torque=6±1kgfxcm No.8...
Page 14 Use a Philips-head screwdriver to lock 3 screws to unlocking the S4. Assembly the latch. latch (No.1~3 Screw size=D3x6, Torque: 6±1kgf.cm) Paste 4 pieces of aluminum foil and 3 pieces of tapes. S5. Co...
Page 15 S7.Assembly the Stand
Page 16 4. Trouble shooting instructions

Manual Details

Brand Dell
Pages 22
File Size 4.71 MB
Published June 24, 2026
2 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What safety precautions should be taken when handling the LCD module?

Mount using corner holes, avoid pressing the panel or frame, do not scratch with sharp objects, ground the body with a wristband to prevent ESD damage, and avoid water or high humidity.

What tools are required to disassemble this monitor?

A Philips-head screwdriver and a penknife are required to disassemble the product.

What torque settings are used for the main board and power board screws?

Use 6±1kgf.cm torque for D3x6 screws and 6±1kgf.cm torque for the M6x4 screw.

Can the original design be modified?

No, the original design must not be modified or altered without written permission from DELL.
