Dell S2721HGF Monitor Simplified Service Manual

Summary

This comprehensive service manual provides qualified technicians with everything needed to safely repair and maintain your LCD monitor. It includes step-by-step disassembly procedures, identification of key components (like power boards and display modules), and thorough wiring diagrams. The guide covers advanced troubleshooting for common issues such as missing color, wrong color, and no input signal. Designed for service professionals, it ensures adherence to safety standards and proper repair techniques, maximizing the product's reliable performance.

📄 Preview 📖 Table of Contents Contents PAGE OF 14

Page 1 Text Content

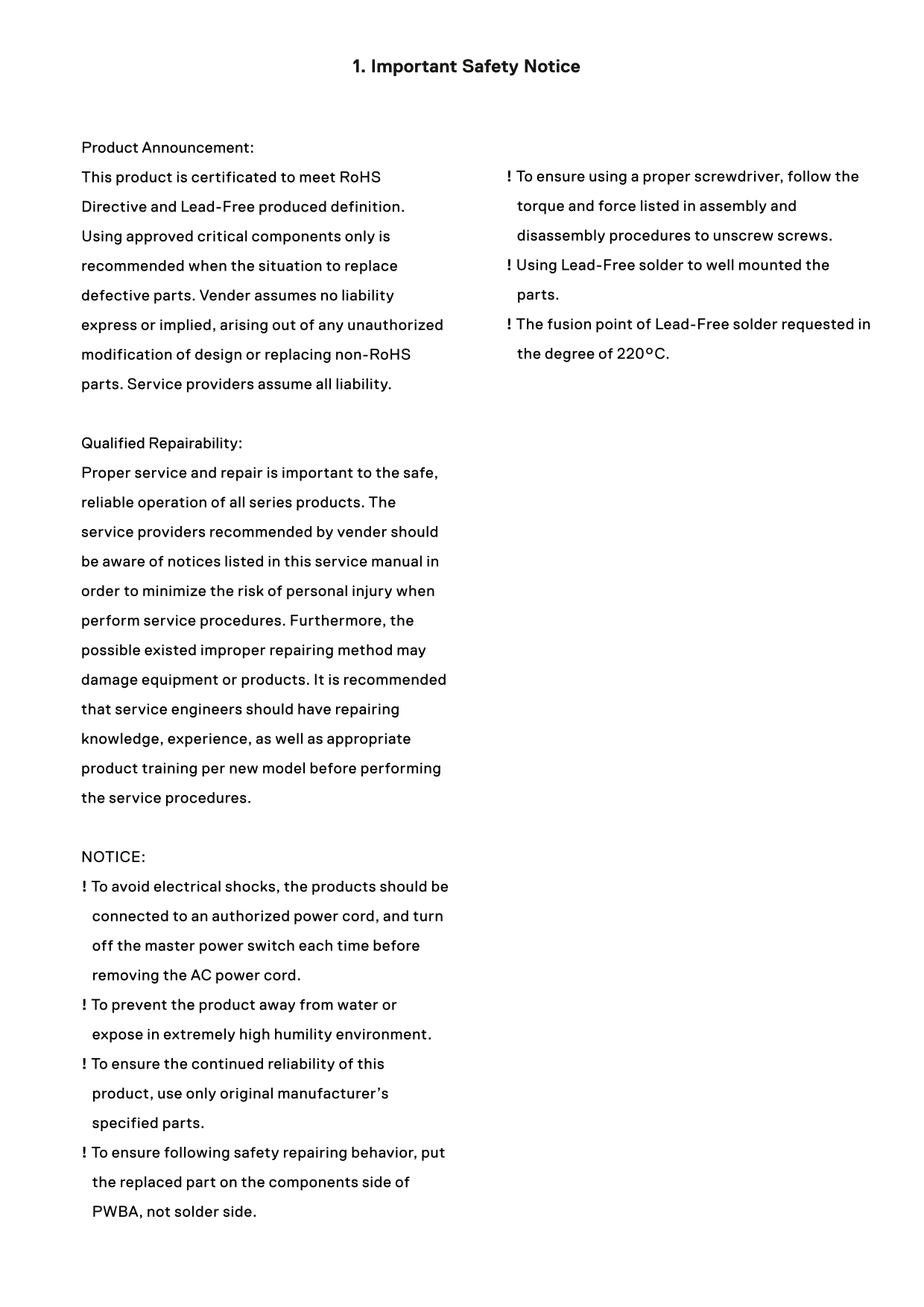

1. Important Safety Notice

Product Announcement:

This product is certificated to meet Ro HS ! To ensure using a proper screwdriver, follow the Directive and Lead-Free produced definition. torque and force listed in assembly and Using approved critical components only is disassembly procedures to unscrew screws. recommended when the situation to replace ! Using Lead-Free solder to well mounted the defective parts. Vender assumes no liability parts. express or implied, arising out of any unauthorized ! The fusion point of Lead-Free solder requested in modification of design or replacing non-Ro HS the degree of 220°C.

parts. Service providers assume all liability.

Qualified Repairability: Proper service and repair is important to the safe, reliable operation of all series products. The service providers recommended by vender should be aware of notices listed in this service manual in order to minimize the risk of personal injury when perform service procedures. Furthermore, the possible existed improper repairing method may damage equipment or products. It is recommended that service engineers should have repairing knowledge, experience, as well as appropriate product training per new model before performing the service procedures.

NOTICE: ! To avoid electrical shocks, the products should be connected to an authorized power cord, and turn off the master power switch each time before removing the AC power cord. ! To prevent the product away from water or expose in extremely high humility environment. ! To ensure the continued reliability of this product, use only original manufacturer’s specified parts. ! To ensure following safety repairing behavior, put the replaced part on the components side of PWBA, not solder side.

Page Summary Contents For Dell S2721HGF Monitor Simplified Service Manual

Page 1 1. Important Safety Notice Product Announcement: This product is certificated to meet Ro HS ! To ensure using a proper screwdriver, follow the Directive and Lead-Free produced definition. torque and f...
Page 2 2. Exploded view diagram with list of items ain ch assis ack co ver er m ylar P In terface b ard id co ver er b ard er key an el SD Jo ysick b ard Fro t trim er b tto Jo ystick b tto SD tto
Page 3 3. Wiring Connectivity Diagram LED DRIVER LCD PANEL 27" 16:9 1920*1080@144Hz LCD1 LCD2 POWER BOARD INTERFACE BOARD Function Key BD AC JACK LED key Board AC INPUT HDMI1 HDMI2 DP1 Headphone 110V/22...
Page 4 4. Disassembly and Assembly Procedures Necessary repair and test equipment: Lift the rear cover up carefully. Disconnect the 1. Philips-head screwdriver function key cable and power key cable from the...
Page 5 4. Disassembly and Assembly Procedures se a Philips-head screwdriver to remove 4pcs Remove the middle bezel and put it into a fixture jip, screws for locking the bracket chassis module with then tear ...
Page 6 4. Disassembly and Assembly Procedures Turn over the bracket chassis module. Remove the Mylar from the hooks of the bracket. S12 Use a Philips-head screwdriver to remove 6pcs screws for unlocking circ...
Page 7 4. Disassembly and Assembly Procedures 4.2 Assembly Procedures: Take 1pcs mylar to insert the hooks of the bracket to Place a bracket chassis base on a protective cover the power board, then locate th...
Page 8 4. Disassembly and Assembly Procedures Take 1pcs power key board and 1pcs middle bezel, Use a Philips-head screwdriver to tighten 6pcs then locate the power key board to the specific screws for lockin...
Page 9 4. Disassembly and Assembly Procedures Locate the function key board with Joystick key to the specific position of the rear cover, then use a Philips- head screwdriver to tighten 4pcs screws for locki...
Page 10 4. Disassembly and Assembly Procedures Use a Philips-head screwdriver to tighten 4pcs screws for locking the rear cover with the assembled S18 unit. Paste 2pcs labels on the specific positions. (No.1~...
Page 11 5. Trouble Shooting Instructions Self-test Your monitor provides a self-test feature that allows you to check whether your monitor is functioning properly. If your monitor and computer are properly co...
Page 12 5. Trouble Shooting Instructions Built-in diagnostics Your monitor has a built-in diagnostic tool that helps you determine if the screen abnormality you are experiencing is an inherent problem with yo...
Page 13 5. Trouble Shooting Instructions Common problems The following table contains general information about common monitor problems you might encounter and the possible solutions: Common What You Possible...
Page 14 5. Trouble Shooting Instructions Common What You Possible Solutions Symptoms Experience Missing Color Picture missing • Perform monitor self-test. color • Ensure that the video cable connecting the mo...
