This document provides the outline dimension drawings for both the Dell S2216H (21.5-inch) and S2316H (23-inch) monitors, showing detailed physical measurements in millimeters and inches. It includes overall dimensions for both models (488.0mm and 520.7mm widths respectively), stand footprints, tilt specifications, VESA mounting hole patterns, and back-of-monitor views without stand. Designed for workspace planners, IT procurement teams, and users needing precise dimensional data for monitor deployment in office or home environments.
Page 1 Text Content

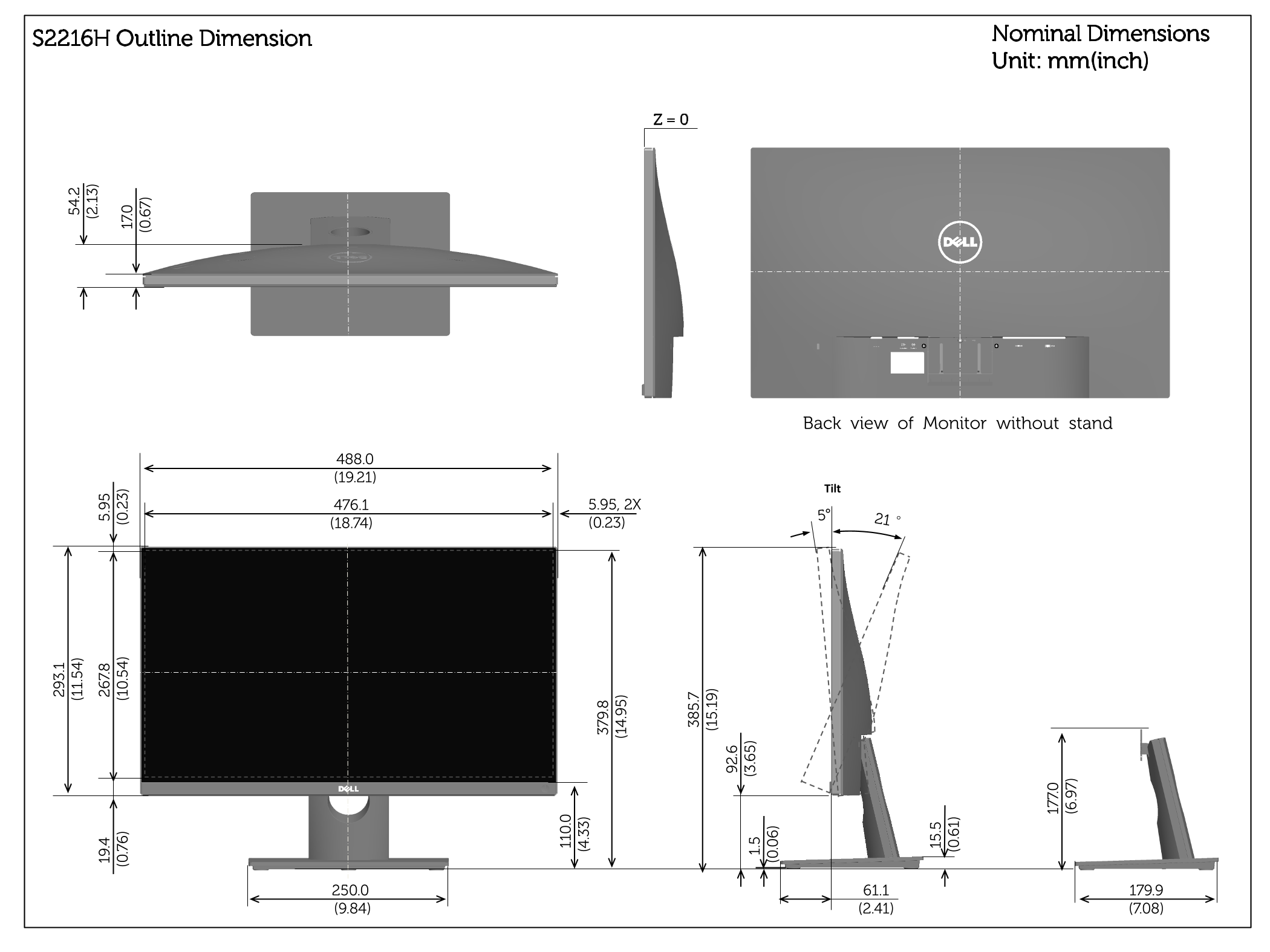

S2216H Outline Dimension Nominal Dimensions
.1 Unit: mm(inch)
Back view of Monitor without stand
Page Summary Contents For Dell S2316H Toner Guide User Manual
Manual Details
| Brand | Dell |
|---|---|
| Pages | 2 |
| File Size | 306.61 KB |
| Published | July 02, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the overall back view outline dimensions for the S2216H monitor without a stand?
The nominal length is 488.0 mm (19.21 inches), and the height measurement is 250.0 mm.
How much wider is the S2316H model compared to the S2216H?
The S2316H has an overall back view outline dimension of 520.7 mm (20.50 inches), while the S2216H is 488.0 mm (19.21 inches).
What is the depth measurement at 'Tilt' for the S2316H monitor?
For the S2316H model, the recorded dimension at 'Tilt' is 509.2 mm (20.05 inches).
