Dell S2218M Outline Spec Sheet User Guide
Summary
Outline dimension drawings for Dell S2218H/S2218M and S2318H/S2318M monitors showing nominal dimensions in millimeters and inches. Covers back view without stand, tilt range, VESA mounting pattern, and detailed height/width/depth measurements for both 21.5-inch and 23-inch display variants. Technical reference for installation planning, wall mounting, and workspace fit assessment.
Page 1 Text Content

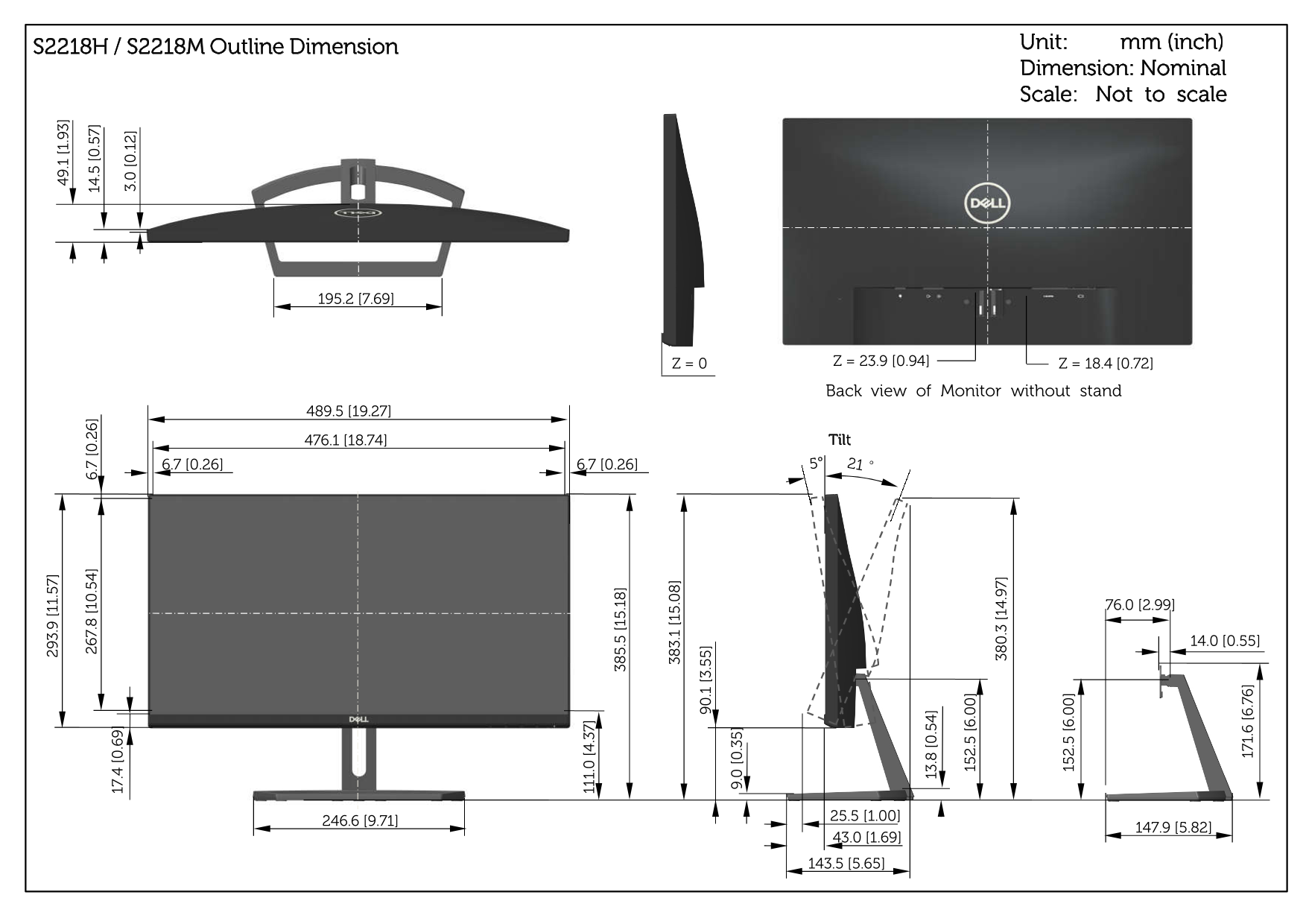

S2218H / S2218M Outline Dimension Unit: mm (inch)
Dimension: Nominal
.8 .5 .7 .2 .5 .5 Scale: Not to scale
Back view of Monitor without stand
476.1 [18.74] Tilt
Page Summary Contents For Dell S2218M Outline Spec Sheet User Guide
Manual Details
| Brand | Dell |
|---|---|
| Pages | 2 |
| File Size | 196.62 KB |
| Published | July 03, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is one key dimension of the S2318 model's back view?
The back view width of the S2318 system measures 522.2 mm (20.56 inches).
How do the dimensions of the S2318 compare to the S2218 model?
The S2318 has a wider back view (522.2 mm) compared to the S2218's width of 489.5 mm.
What are the displayed dimensions for the monitor tilt?
Tilt measurements include a vertical change of 43.0 mm (1.69 inches) and an associated depth of 25.5 mm (1.00 inch).
