Dell E2421HN Outline Dimensions Guide
Summary
This document provides the outline dimension specifications for the Dell E2421HN monitor, including detailed measurements in millimeters and inches for the display unit, stand, and mounting points. It features technical drawings with tilt angles, screw specifications, and physical dimensions to assist with installation, mounting, and space planning. This manual is intended for system integrators, installers, and end users who need precise physical specifications for the monitor.
Page 1 Text Content
Unit : mm(inch)

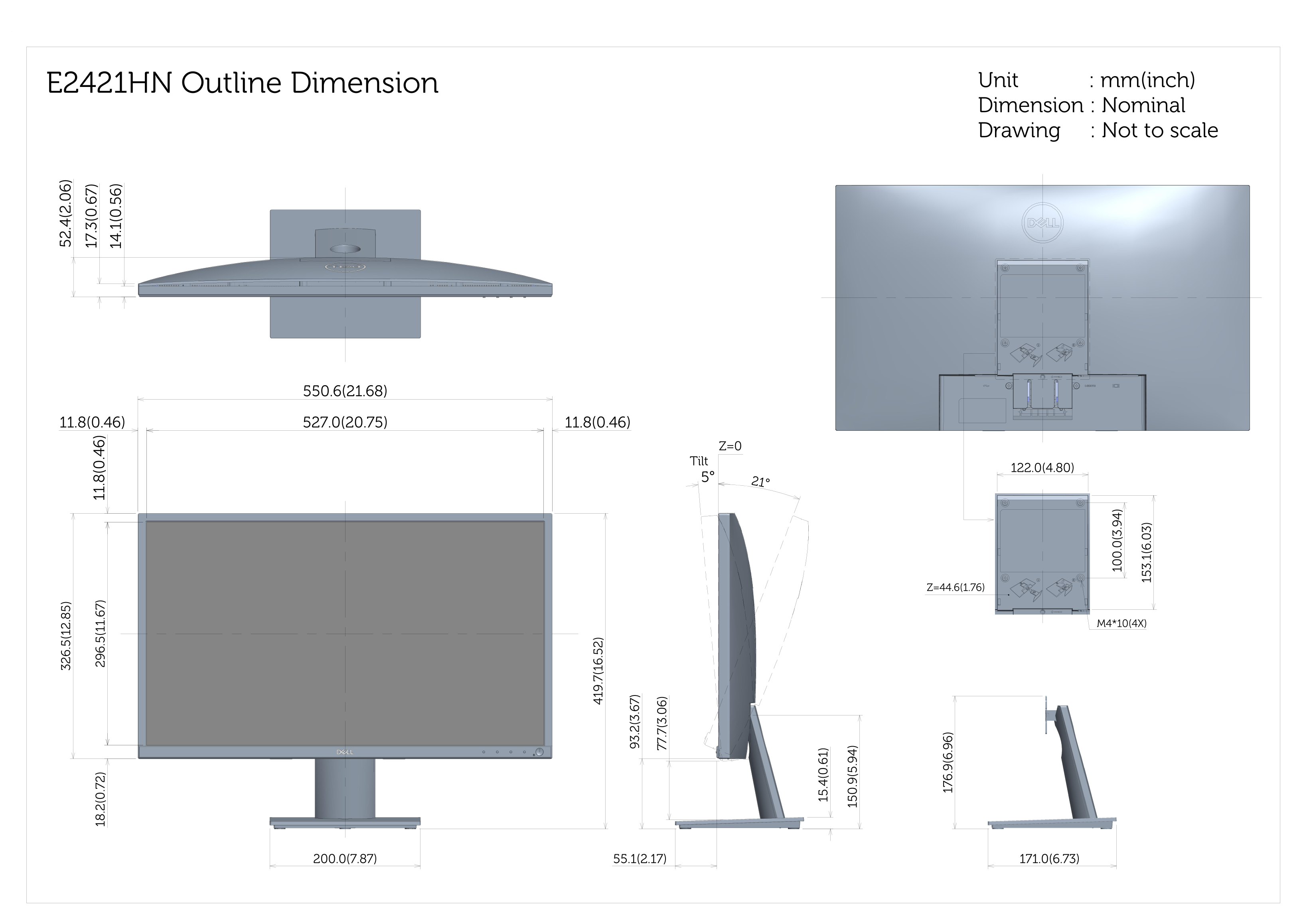

E2421HN Outline Dimension Dimension : Nominal
Drawing : Not to scale 550.6(21.68)
527.0(20.75) 11.8(0.46)11.8(0.46) Z=0 Tilt
Page Summary Contents For Dell E2421HN Outline Dimensions Guide
Page 1
Unit : mm(inch) E2421HN Outline Dimension Dimension : Nominal Drawing : Not to scale 550.6(21.68) 527.0(20.75) 11.8(0.46)11.8(0.46) Z=0 Tilt
Manual Details
| Brand | Dell |
|---|---|
| Pages | 1 |
| File Size | 295.56 KB |
| Published | May 19, 2026 |
42 views
Enter the captcha to get the download link:
Frequently Asked Questions
What are the physical dimensions of the E2421HN?
The dimensions are 122.0mm (4.80) by 200.0mm (7.87) by 527.0mm (20.75).
What is the maximum height of the unit?
The maximum height is 550.6mm (21.68).
Does the unit have a tilt adjustment?
Yes, the unit has a tilt adjustment range of 0° to 21°.
