Dell S2715H Outline Guide Specification User Guide
Summary
This document provides the outline dimensions and mechanical specifications for the Dell S2715H monitor. It includes detailed nominal dimensions in millimeters and inches for the monitor without stand, as well as measurements for tilt adjustment and stand depth. The technical drawing covers the back view and physical footprint, providing precise measurements for width, height, depth, and stand dimensions. This specification sheet is intended for workspace planners, system integrators, and IT professionals who need accurate physical dimensions for desk layout, mounting configurations, or multi-monitor setup planning.
Page 1 Text Content
Nominal Dimensions

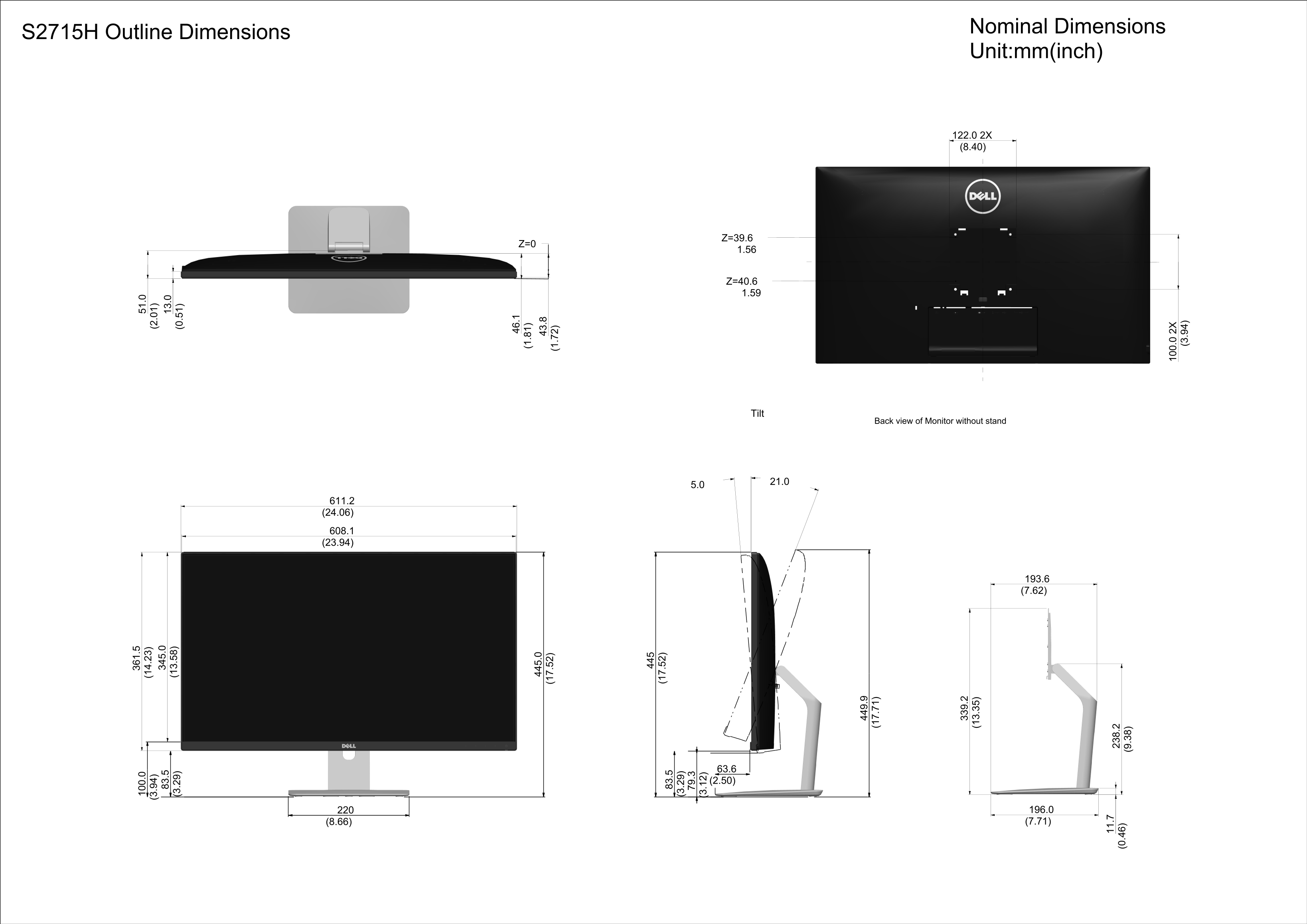

S2715H Outline Dimensions
Unit:mm(inch)
Back view of Monitor without stand
Page Summary Contents For Dell S2715H Outline Guide Specification User Guide
Manual Details
| Brand | Dell |
|---|---|
| Pages | 1 |
| File Size | 2.18 MB |
| Published | June 05, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the nominal dimensions of the S2715H monitor?
The monitor has a depth of 83.5mm (3.29) and a width of 611.2mm (24.06).
What is the depth of the monitor?
The nominal depth of the monitor is 83.5mm (3.29).
What is the width of the monitor?
The nominal width of the monitor is 611.2mm (24.06).
How does the monitor depth vary with tilt?
The depth varies from 39.6mm (1.56) to 608.1mm (23.94) depending on the tilt angle.
