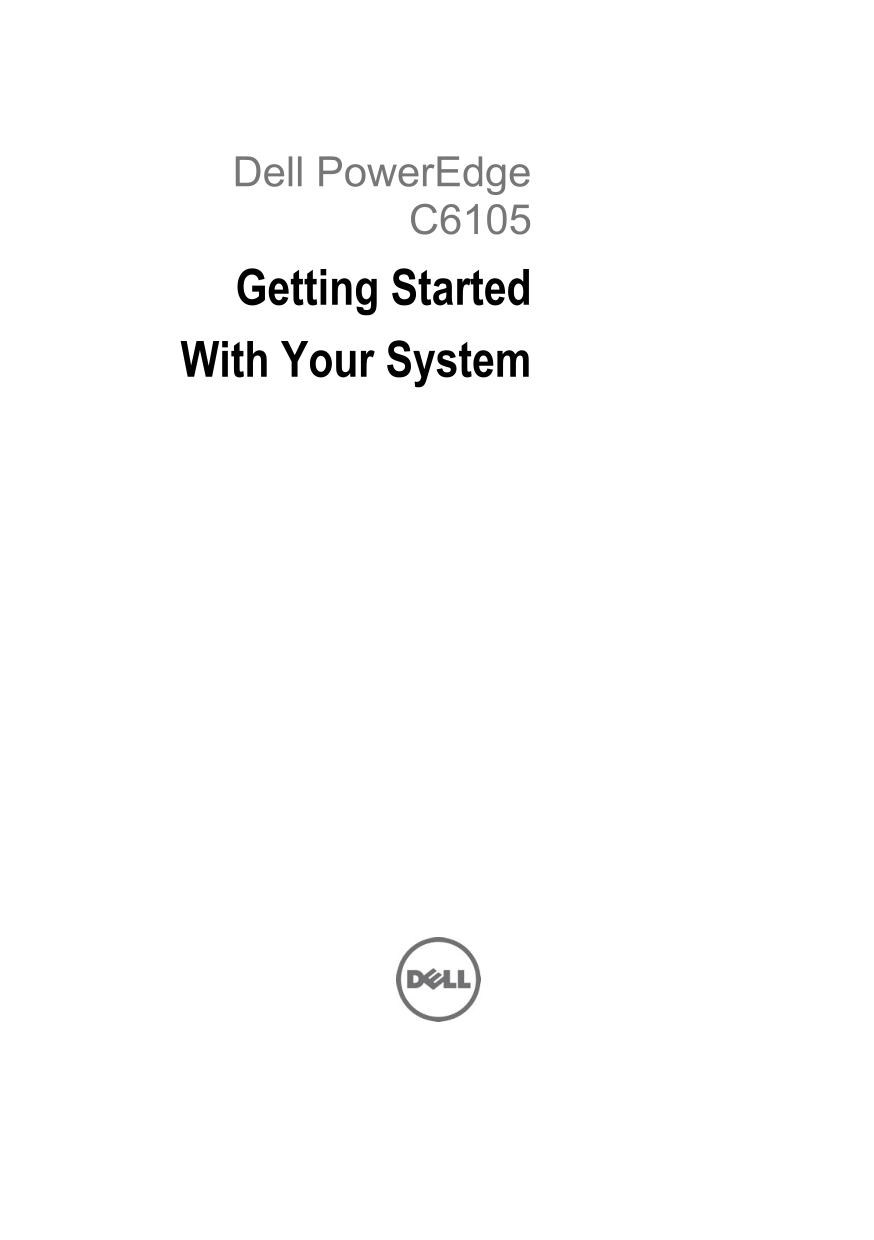

Dell Power Edge Getting Started With Your System
Page 3
Dell Power Edge Getting Started With Your System
Page 4
Notes, Cautions, and Warnings NOTE: A NOTE indicates important information that helps you make better use of your computer. CAUTION: A CAUTION indicates potential damage to hardware or loss of data if...
Page 5
Information in this document is subject to change without notice. 2014 Dell Inc. All rights reserved. Reproduction of these materials in any manner whatsoever without the written permission of Dell In...
Page 6
CAUTION: Restricted Access Location This server is intended for installation only in restricted access locations as defined in Cl. 1.2.7.3 of IEC 60950-1: 2001 where both these conditions apply: Acc...
Page 7
1 Align the end pieces of the rails on the vertical rack flanges to seat the pegs in the bottom hole of the first U and the top hole of the second U. Engage the back end of the rails until the latches...
Page 8
Figure 2. Installing the Chassis Stabilizer Shipping Brackets 5 Tighten the thumbscrews to secure the ears of the system to the front of the rack flanges. Figure 3. Installing the Chassis onto the Rac...
Page 9
Optional-Connecting the Keyboard, Mouse, and Monitor Figure 4. Optional—Connecting the Keyboard, Mouse and Monitor Connect the keyboard, mouse, and monitor (optional). The connectors on the back of yo...
Page 10
Connecting the Power Cable(s) Figure 5. Connecting the Power Cable Connect the system’s power cable(s) to the system and, if a monitor is used, connect the monitor’s power cable to the monitor. Plug t...
Page 11
Turning on the System Figure 6. Pressing the Power Button on the Front of the System and the Monitor Figure 7. Pressing the Power Button on the Back of the System Press the power button(s) either on t...
Page 12
Complete the Operating System Setup To install an operating system for the first time, see the installation and configuration documentation for your operating system. Be sure the operating system is i...
Page 13
NOM Information (Mexico Only) The following information is provided on the device described in this document in compliance with the requirements of the official Mexican standards (NOM): Importer Dell ...
Page 14
Technical Specifications Processor (Per System Board) Processor type One or two AMD C32 Series processors One or two AMD Opteron 4000 Series processors One or two AMD Opteron 4200 Series processors On...
Page 15
Connectors (Per System Board) NIC Two RJ-45 (10/100/1000 Mbps Ethernet) Serial 9-pin, DTE, 16550-compatible USB Two 4-pin, USB 2.0-compliant Video 15-pin D-Sub VGA Management port Dedicated Ethernet p...
Page 16
Maximum inrush current Initial In-rush Current cannot exceed 55 Amps (peak). Secondary In-rush Current cannot exceed 35 Amps (peak). Battery (per system board) System battery CR 2032 3.0-V lithium ion...
Page 17
Operating One shock pulse in the positive z axis (one pulse on each side of the system) of 31 G for 2.6 ms in the operational orientation Storage Six consecutively executed shock pulses in the positiv...
Page 18
