The Pin Assignments for I/O Connectors document for Dell Latitude C810 provides pinout specifications for all connectors. It includes USB, PS/2, serial, S-Video, parallel, docking, video, and IEEE 1394 connectors with signal names. Target users are hardware technicians needing detailed pinout information for troubleshooting and repair.

📄 Preview PAGE OF 4

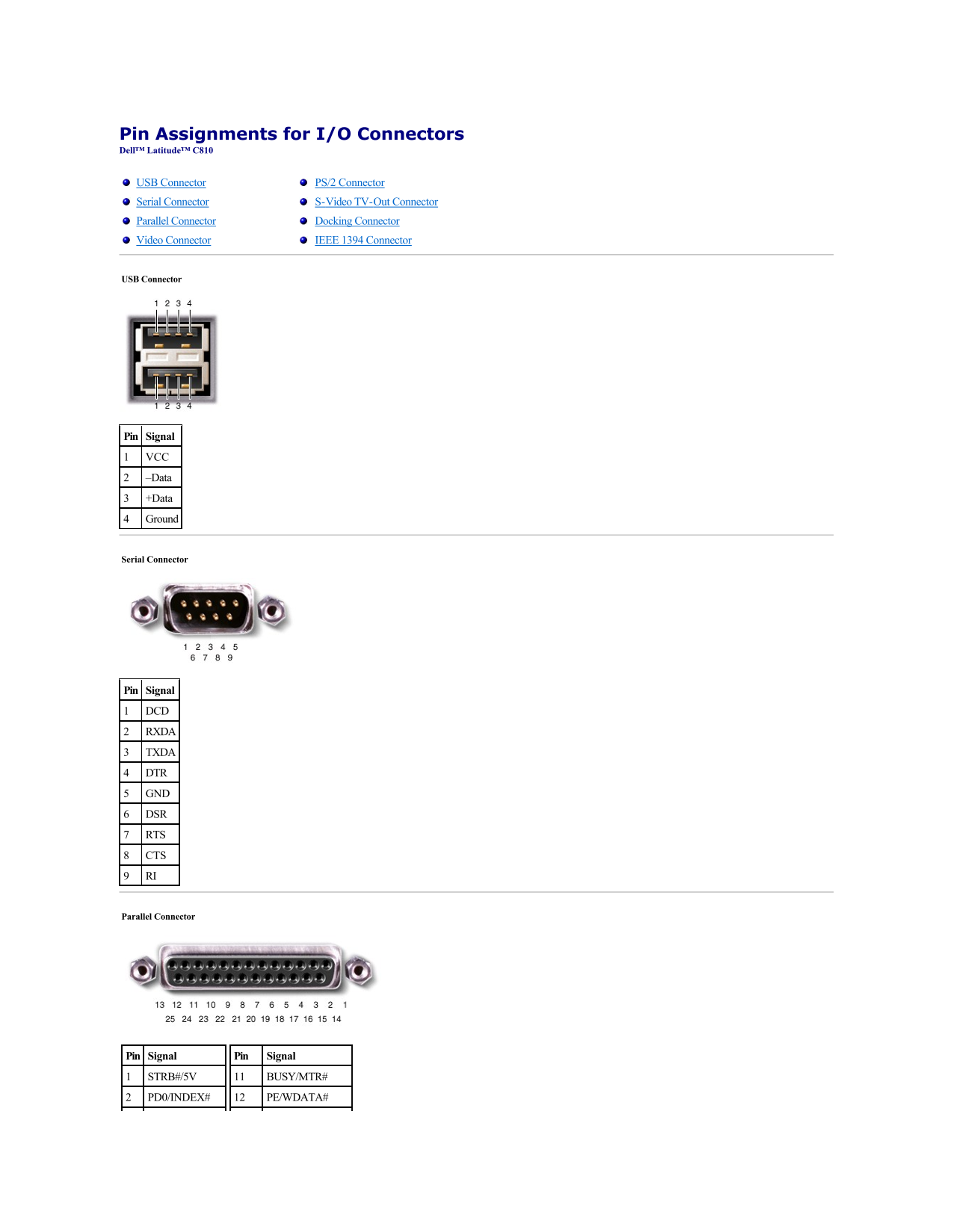

Page 1 Text Content

Pin Assignments for I/O Connectors  Dell™ Latitude™ C810 USB Connector PS/2 Connector Serial Connector S-Video TV-Out Connector Parallel Connector Docking Connector Video Connector IEEE 1394 Connector  USB Connector

Pin Signal 1 VCC 2 –Data 3 +Data 4 Ground  Serial Connector

Pin Signal 1 DCD 2 RXDA 3 TXDA 4 DTR 5 GND 6 DSR 7 RTS 8 CTS 9 RI  Parallel Connector

Pin Signal Pin Signal STRB#/5V BUSY/MTR# PD0/INDEX# PE/WDATA#

Page Summary Contents For Dell Pin Assignments User's Manual

Page 1 Pin Assignments for I/O Connectors  Dell™ Latitude™ C810 USB Connector PS/2 Connector Serial Connector S-Video TV-Out Connector Parallel Connector Docking Connector Video Connector IEEE 1394 Connector...
Page 2 PD1/TRK0# SLCT/WGATE# PD2/WP# AFDF# PD3/RDATA# ERROR#HDSEL# PD4/DSKCHG# INIT#/DIR# PD5F SLCT_IN#STEP# PD6F 18- ACK#/DRV#  Video Connector  Pin Signal Pin Signal 1 RED 9 CRT_VCC 2 GREEN 10 GND 3 BLUE 1...
Page 3 S-Video Composite Pin Signal Pin Signal GND SPDIF GND DCMPS- DLUMA- SPGND DCRMA-  Docking Connector  Pin Signal Pin Signal Pin Signal Pin Signal 1 STRB#/5V 51 HSYNC 101 VGA_GRN 151 GND 2 PD0 52 VSYNC ...
Page 4 34 +5VDOCK 84 CLK_DOCKSM1 134 GND 184 SAD23 35 GND 85 DAT_DOCKKBD 135 SWRPRT# 185 SAD24 36 DOCK_PWR_SRC 86 CLK_DOCKKBD 136 SDSKCHG#/DRQ 186 SC/BE3# 37 DOCK_PWR_SRC 87 GND 137 SDIR# 187 SAD25 38 DOCK_P...

Manual Details

Brand Dell
Pages 4
File Size 177.38 KB
Published June 27, 2026
8 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What is the pinout for the Parallel Connector?

Pin 1 (STRB#/5V), Pin 11 (BUSY/MTR#), Pin 2 (PD0/INDEX#) through Pin 9 (PD7F) are specified.

How many pins does the Docking Connector have?

The Docking Connector has 19 pins, numbered 1 through 19.

Does the PS/2 Connector provide power?

Yes, pin 4 provides PS2VCC and pin 3 connects to GND.

Which connector uses a red, green, and blue color assignment for video?

The Video Connector handles these colors: Red on Pin 1, Green on Pin 2, and Blue on Pin 3.
