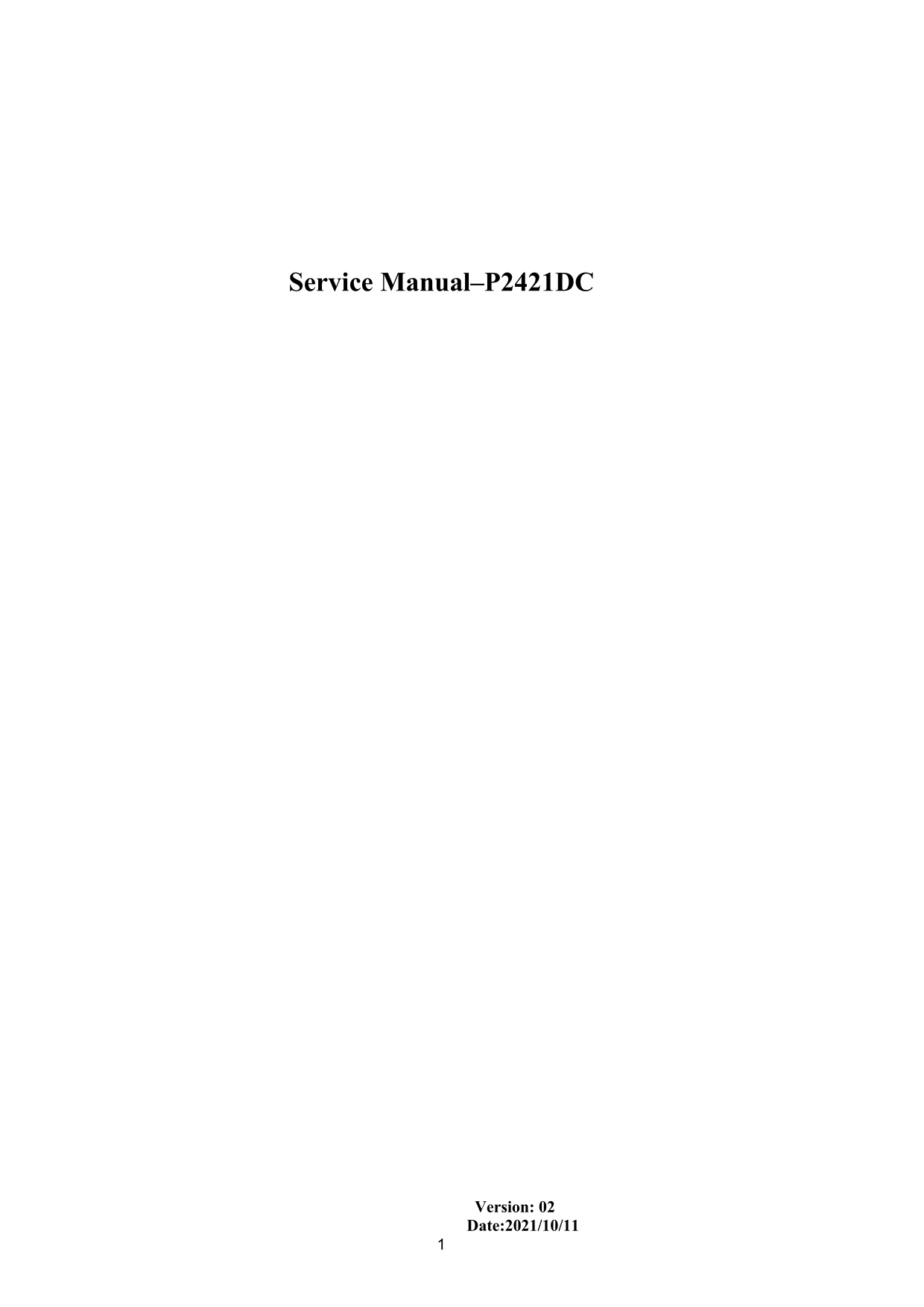

Service Manual–P2421DC Version: 02 Date:2021/10/11
Page 2
Content Index 1. General Safety Instructions ....................................................................................... 3 1.1 SAFETY: General Safety .........................................
Page 3
1. General Safety Instructions Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and working environment from potential damage. NOTE: In th...
Page 4
if all cables have been disconnected. Do not spill food or liquids on your equipment. Before you clean your equipment, disconnect it from the electrical outlet. Clean your device with a soft cloth...
Page 5
1.2 SAFETY: General Power Safety Observe the following guidelines when connecting your equipment to a power source: Check the voltage rating before you connect the equipment to an electrical outlet ...
Page 6
2. Exploded view diagram with list of items
Page 7
No. Description Q’ty Remark 1 LOGO 1 2 DECO-CHIN 1 3 DECO PLATE 1 4 MID-FRAME 1 5 FUNCTION KEY 1 6 POWER KEY 1 7 REAR COVER 1 8 SPRING 2 For EMEA Only, 9 QR SLIDE 1 not for 10 QR BUTTON 1 other region...
Page 8
3. Click Contact Us next to the country dropdown. 4. Select the appropriate service or support link based on your need. 5. Choose the method of contacting Dell that is convenient for you
Page 9
3. Wiring connectivity diagram
Page 10
4. How to connect and disconnect power cable/ connectivity cable
Page 13
5. Mechanical Instruction NOTE: This “Disassembly and Assembly Procedures” is for EMEA only, not for other regions. Please note that Dell will deem warranty void if any disassembly is done on the moni...
Page 14
5.1Disassembly Procedures Turn off power 2 the middle bezel on the corners of the top side of the monitor to release the rear cover, then use S2 Unplug external cables from product Scraper to separate...
Page 15
Tear out all the cable to remove the rear cover and Disconnect all of the cables to separate the put it on a protective cushion. Use a Philips-head power board and main board. screwdriver to remove 10...
Page 16
Use a Philips-head screwdriver to remove 3 screws for unlocking the bezel and the middle frame. S10 (No.1~3 screw size=M2X2.5, Torque: 6±1kgf.cm) Use a Philips-head screwdriver to remove 3 screws S12 ...
Page 17
5.2 Assembly Procedures Use a Philips-head screwdriver to lock 1 screw to assemble the USB board. Connect the cables of the USB board (No.1 screw size=M3x6, Torque=4±1kgf.cm)
Page 18
Use a Philips-head screwdriver to lock 3 screws for locking the key board and the middle frame. S2 (No.1~3 screw size=M2X2.5, Torque: 6±1kgf.cm) S3 Use a Philips-head screwdriver to lock 3 screws for ...
Page 19
S6 Connect all the cable on the rear cover and put it on a protective cushion. Use a Philips-head screwdriver to lock 10 screws for locking the middle plastic bezel with the whole unit,. (No.1~20 scre...
Page 20
6. Trouble shooting instructions
