Dell P2217Wh Monitor Simplified Service Manual
Summary
This service manual covers the Dell P2217 and P2217Wh 22-inch LCD monitors. It includes important safety notices, service procedures, disassembly instructions, and technical specifications. The manual is intended for trained service technicians who need to repair or maintain these Dell monitor models.
Page 1 Text Content

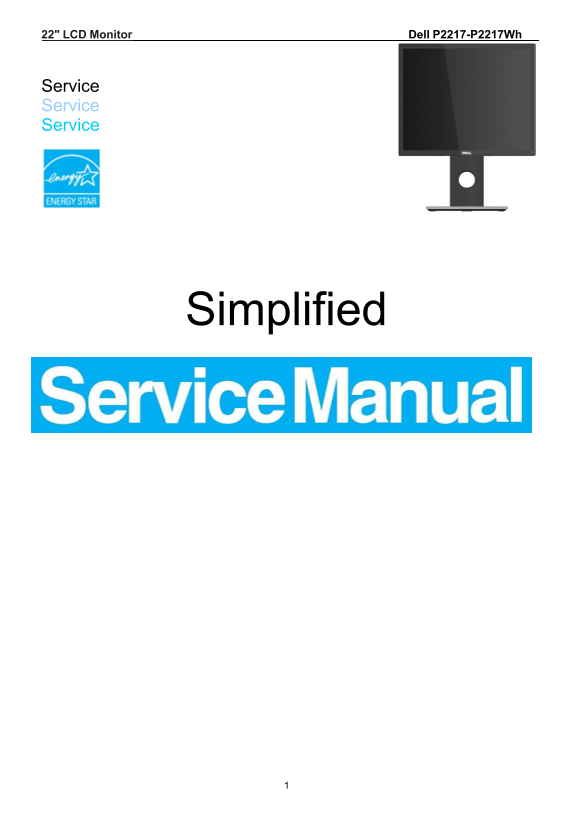

22" LCD Monitor Dell P2217-P2217Wh
Service Service Service
Simplified
Page Summary Contents For Dell P2217Wh Monitor Simplified Service Manual
Page 1
22" LCD Monitor Dell P2217-P2217Wh Service Service Service Simplified
Page 2
Important Safety Notice Proper service and repair is important to the safe, reliable operation of all DELL Company Equipment. The service procedures recommended by DELL and described in this service m...
Page 3
1. Exploded view diagram with list of items
Page 4
No. Description Q’ty 1 LOGO 1 2 INSULATING SHEET 1 3 BEZEL 1 4 KEY_FUNCTION 1 5 KEY_POWER 1 6 KEY BOARD 1 7 PANEL 1 8 INSULATING SHEET 1 9 ADAPTER BOARD 1 10 INSULATING SHEET 1 11 MAIN BOARD PCB 1 12 ...
Page 5
2. Wiring connectivity diagram Connector Ass’y PN: Connector Ass’y PN: Connector Ass’y PN: 395GH20006DM0920HF 395G179X30B55600HF 395G279M02650200HF Connector Ass’y PN: 395GH25V07LM0200HF This Connecto...
Page 6
3. Mechanical Instruction Tools Required List the type and size of the tools that would typically can be used to disassemble the product to a point where components and materials requiring selective t...
Page 7
3.1 Disassembly Procedures: Step Figure Remark Turn off power, S1.Before Unplug external disassemble cables from product Press the button on the red then pull out the stand upward, stand will be re...
Page 8
Use a Philips-head screwdriver to remove 4 screws for unlocking mechanisms. (No.1~4 screw size=M4x10; S3.Remove the Torque=12±2kgf.cm REAR COVER 2. Use Penknife to separate the bezel and rear cove fol...
Page 9
Use a Philips-head screwdriver to remove 3 screws for unlocking key board (No.1~3 screw size=M2x2.5; Torque=0.9±0.4kgf.cm Remove the mylar Use a Philips-head screwdriver to remove 6 screws for unlocki...
Page 10
S6.The Mainframe Mainframe
Page 11
3.2 Assembly Procedures: Step Figure Remark Use a Philips-head screwdriver to screw 6 screws for locking Main board and Power board (No.1~5 screw size=D3x6; Torque=6±1kgf.cm S1.Assembly No.6 screw the...
Page 12
Connect the pin Use a Philips-head screwdriver to screw 2 screws for locking USB board. (No.1~2 screw size=Q3x4; Torque=4±1kgf.cm) S3.Assembly the USBboard and key board Use a Philips-head screwdriver...
Page 13
Use a Philips-head 1 2 screwdriver to screw 4 S4.Assembly screws for locking the REAR mechanisms. COVER (No.1~4 screw size=M4x10; Torque=12±2kgf.cm S5. Assembly stand
Page 14
4. Trouble shooting instructions
