Dell OptiPlex 7060 Tower - Statement of Volatility
Summary
Statement of volatility for the Dell OptiPlex 7060 Tower desktop (dated April 2, 2018), documenting all volatile and non-volatile memory components on the system board. Non-volatile items include embedded controller Flash (SMSC SCH5555V-NU, 2KB ROM + 256 bytes RAM), USB Type-C port controller Flash (Cypress CYPD4125-40LQXIT, 128KB + 8KB SRAM), 32MB System BIOS U8 with ePSA diagnostics, 24KB TPM Nuvoton NPCT750JAAYX (U48), and 256-byte SPD EEPROM per DIMM. DDR4 memory supports 4GB to 64GB via fou

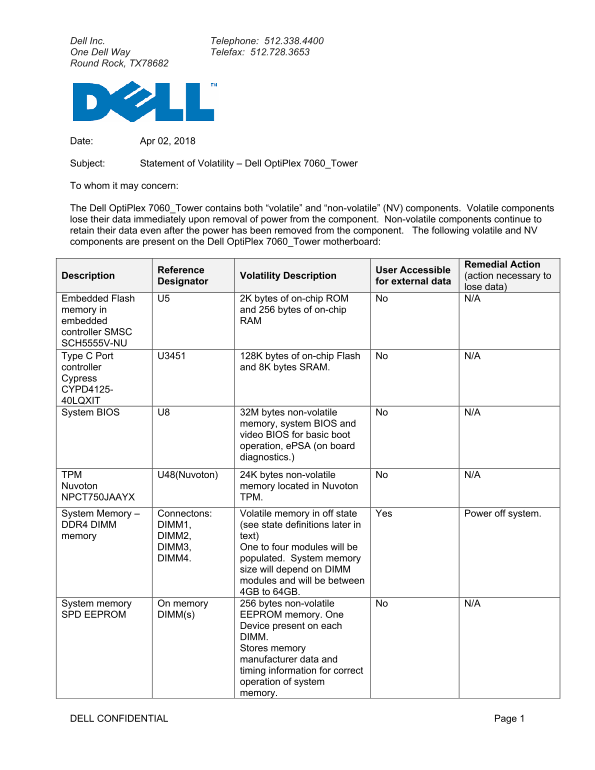

Page 1 Text Content
Dell Inc. Telephone: 512.338.4400 One Dell Way Telefax: 512.728.3653 Round Rock, TX78682
Date: Apr 02, 2018
Subject: Statement of Volatility – Dell Opti Plex 7060_Tower
To whom it may concern:
The Dell Opti Plex 7060_Tower contains both “volatile” and “non-volatile” (NV) components. Volatile components lose their data immediately upon removal of power from the component. Non-volatile components continue to retain their data even after the power has been removed from the component. The following volatile and NV components are present on the Dell Opti Plex 7060_Tower motherboard:
Remedial Action
Reference User Accessible
Description Volatility Description (action necessary to
Designator for external data
lose data)
Embedded Flash U5 2K bytes of on-chip ROM No N/A memory in and 256 bytes of on-chip embedded RAM controller SMSC SCH5555V-NU Type C Port U3451 128K bytes of on-chip Flash No N/A controller and 8K bytes SRAM. Cypress CYPD4125- 40LQXIT System BIOS U8 32M bytes non-volatile No N/A
memory, system BIOS and video BIOS for basic boot operation, e PSA (on board diagnostics.)
TPM U48(Nuvoton) 24K bytes non-volatile No N/A Nuvoton memory located in Nuvoton NPCT750JAAYX TPM.
System Memory – Connectons: Volatile memory in off state Yes Power off system.
DDR4 DIMM DIMM1, (see state definitions later in memory DIMM2, text)
DIMM3, One to four modules will be
DIMM4. populated. System memory
size will depend on DIMM modules and will be between 4GB to 64GB.
System memory On memory 256 bytes non-volatile No N/A SPD EEPROM DIMM(s) EEPROM memory. One
Device present on each DIMM. Stores memory manufacturer data and timing information for correct operation of system memory.
DELL CONFIDENTIAL Page 1
Page Summary Contents For Dell OptiPlex 7060 Tower - Statement of Volatility
Manual Details
| Brand | Dell |
|---|---|
| Pages | 3 |
| File Size | 95.07 KB |
| Published | June 18, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
Which data types are volatile and lose information immediately when power is lost?
Components like System Memory (DDR4 DIMM) and the RTC CMOS BATTERY are flagged as volatile.
What action is needed to prevent data loss from system memory?
The system must be powered off completely, or use a non-volatile state like S4 (suspend to disk).
Can I access stored configuration or time-of-day information if only the coin cell battery is removed?
Removing just the secondary power source (coin cell) will destroy system data on the system configuration and time-of-day information.
What are the different states (ACPI states) available for the Dell OptiPlex 7060_Tower?
The supported ACPI states include S0 (working state), S1 (low wake-up latency sleep), S3 (suspend to RAM), S4 (hibernate), and S5 (soft off).
