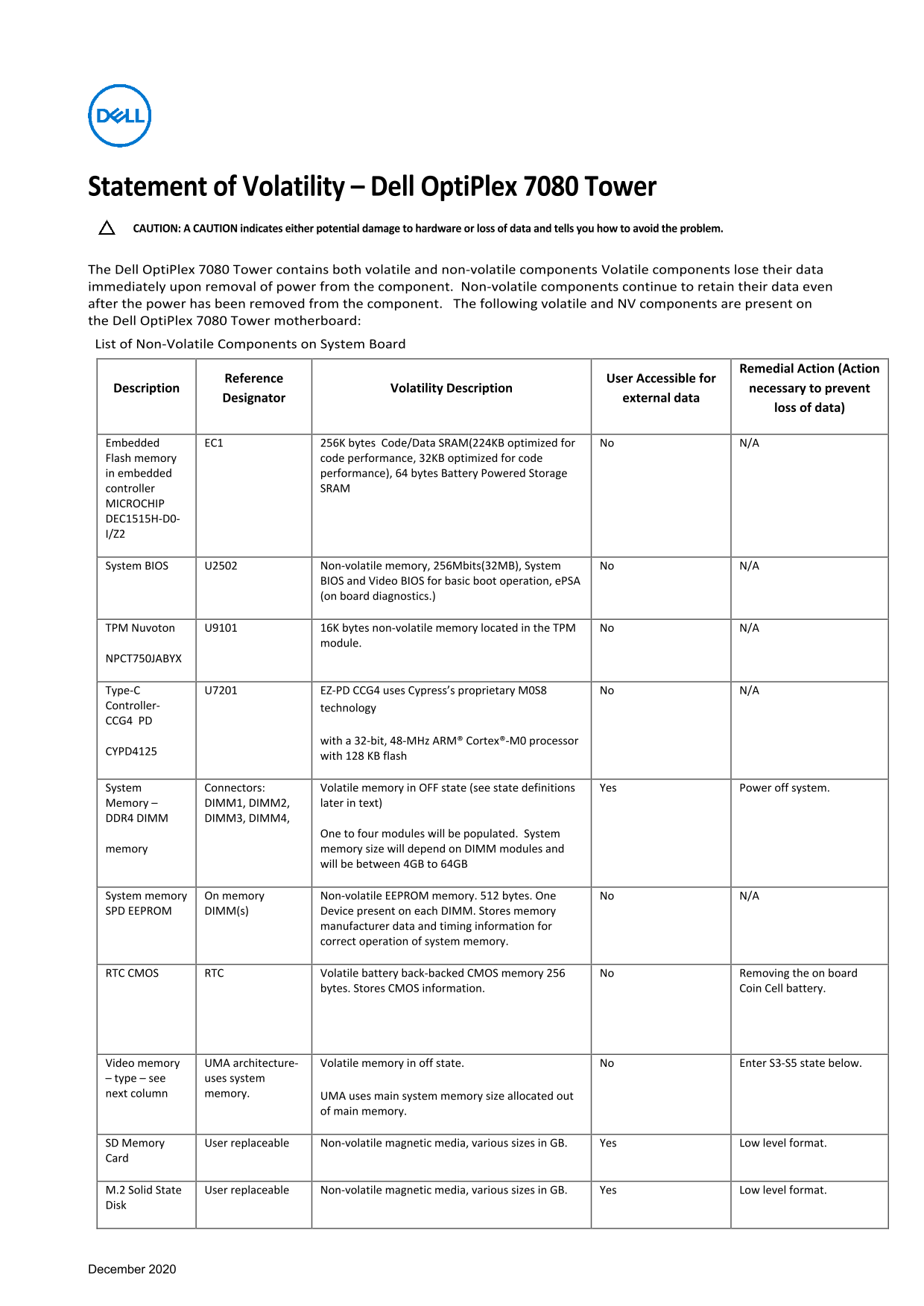

Dell OptiPlex 7080 Tower - Statement of Volatility

Statement of Volatility – Dell Opti Plex 7080 Tower CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. The Dell Opti Plex 7080 Tower contains both volatile and non-volatile components Volatile components lose their data immediately upon removal of power from the component. Non-volatile components continue to retain their data even after the power has been removed from the component. The following volatile and NV components are present on the Dell Opti Plex 7080 Tower motherboard: List of Non-Volatile Components on System Board

Remedial Action (Action

Reference User Accessible for

Description Volatility Description necessary to prevent

Designator external data

loss of data)

Embedded EC1 256K bytes Code/Data SRAM(224KB optimized for No N/A Flash memory code performance, 32KB optimized for code in embedded performance), 64 bytes Battery Powered Storage controller SRAM MICROCHIP DEC1515H-D0- I/Z2

System BIOS U2502 Non-volatile memory, 256Mbits(32MB), System No N/A

BIOS and Video BIOS for basic boot operation, e PSA (on board diagnostics.)

TPM Nuvoton U9101 16K bytes non-volatile memory located in the TPM No N/A

module.

NPCT750JABYX

Type-C U7201 EZ-PD CCG4 uses Cypress’s proprietary M0S8 No N/A Controller- technology CCG4 PD

with a 32-bit, 48-MHz ARM® Cortex®-M0 processor

CYPD4125

with 128 KB flash

System Connectors: Volatile memory in OFF state (see state definitions Yes Power off system. Memory – DIMM1, DIMM2, later in text) DDR4 DIMM DIMM3, DIMM4,

One to four modules will be populated. System

memory memory size will depend on DIMM modules and

will be between 4GB to 64GB

System memory On memory Non-volatile EEPROM memory. 512 bytes. One No N/A SPD EEPROM DIMM(s) Device present on each DIMM. Stores memory

manufacturer data and timing information for correct operation of system memory.

RTC CMOS RTC Volatile battery back-backed CMOS memory 256 No Removing the on board

bytes. Stores CMOS information. Coin Cell battery.

Video memory UMA architecture- Volatile memory in off state. No Enter S3-S5 state below. – type – see uses system next column memory. UMA uses main system memory size allocated out

of main memory.

SD Memory User replaceable Non-volatile magnetic media, various sizes in GB. Yes Low level format. Card

M.2 Solid State User replaceable Non-volatile magnetic media, various sizes in GB. Yes Low level format. Disk

December 2020
