Dell OptiPlex 5000 Tower Statement of Volatility
Summary
Statement of Volatility for Dell OptiPlex 5000 Tower desktop computer, cataloging all volatile and non-volatile components on the system board including embedded controller flash memory, system BIOS, TPM module, DDR4 DIMM memory, SPD EEPROM, RTC CMOS battery, and storage devices. The document specifies remedial actions for data loss prevention and is intended for IT security professionals, system administrators, and compliance officers managing data security policies.

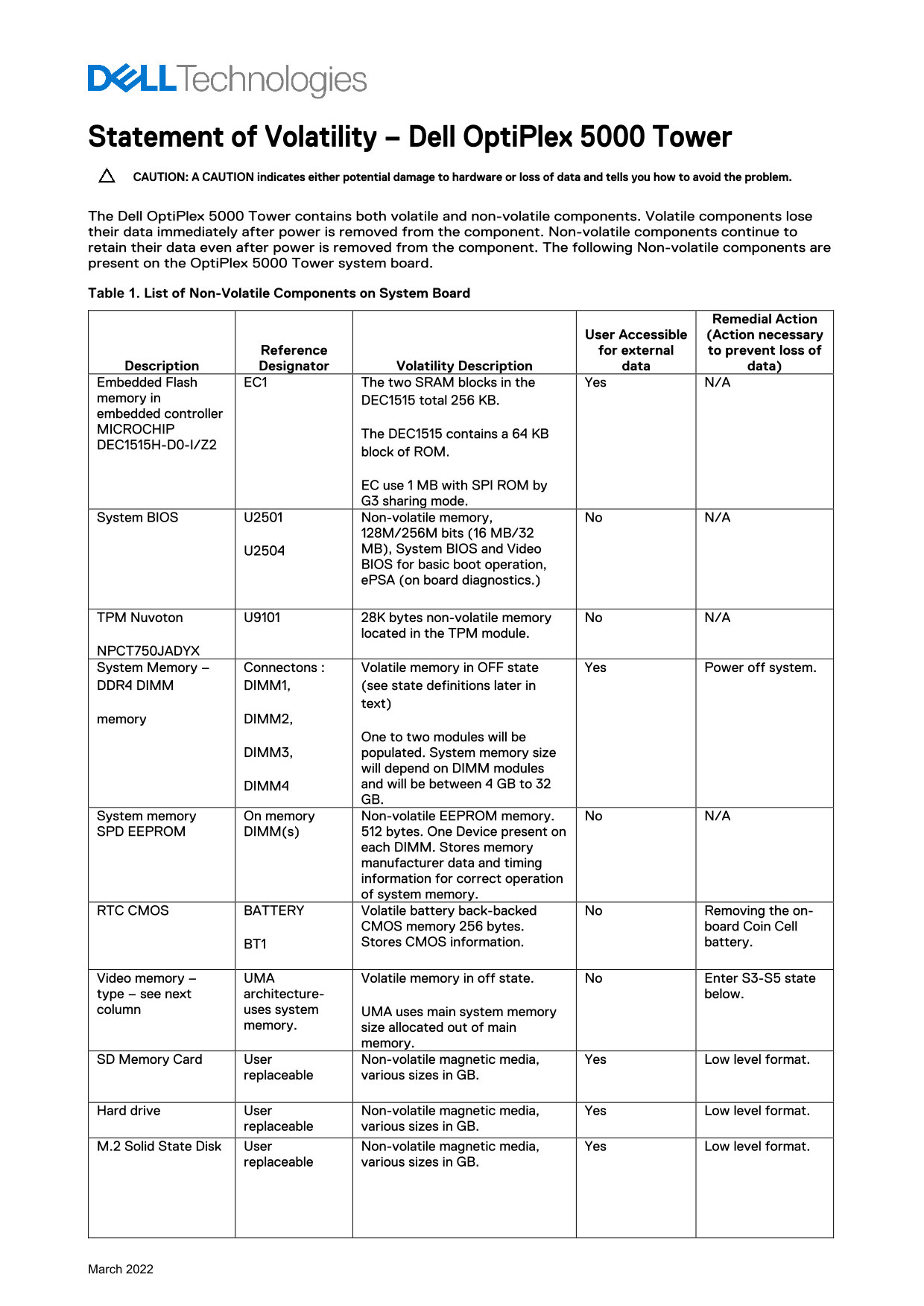

Page 1 Text Content
Statement of Volatility – Dell Opti Plex 5000 Tower CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. The Dell Opti Plex 5000 Tower contains both volatile and non-volatile components. Volatile components lose their data immediately after power is removed from the component. Non-volatile components continue to retain their data even after power is removed from the component. The following Non-volatile components are present on the Opti Plex 5000 Tower system board. Table 1. List of Non-Volatile Components on System Board
Remedial Action
User Accessible (Action necessary
Reference for external to prevent loss of
Description Designator Volatility Description data data) Embedded Flash EC1 The two SRAM blocks in the Yes N/A memory in DEC1515 total 256 KB. embedded controller MICROCHIP
The DEC1515 contains a 64 KB
DEC1515H-D0-I/Z2
block of ROM.
EC use 1 MB with SPI ROM by G3 sharing mode.
System BIOS U2501 Non-volatile memory, No N/A
128M/256M bits (16 MB/32 U2504 MB), System BIOS and Video BIOS for basic boot operation, e PSA (on board diagnostics.)
TPM Nuvoton U9101 28K bytes non-volatile memory No N/A
located in the TPM module.
NPCT750JADYX System Memory – Connectons : Volatile memory in OFF state Yes Power off system. DDR4 DIMM DIMM1, (see state definitions later in
text)
memory DIMM2,
One to two modules will be
DIMM3, populated. System memory size
will depend on DIMM modules DIMM4 and will be between 4 GB to 32 GB.
System memory On memory Non-volatile EEPROM memory. No N/A SPD EEPROM DIMM(s) 512 bytes. One Device present on
each DIMM. Stores memory manufacturer data and timing information for correct operation of system memory.
RTC CMOS BATTERY Volatile battery back-backed No Removing the on-
CMOS memory 256 bytes. board Coin Cell BT1 Stores CMOS information. battery.
Video memory – UMA Volatile memory in off state. No Enter S3-S5 state type – see next architecture- below. column uses system UMA uses main system memory
memory. size allocated out of main
memory.
SD Memory Card User Non-volatile magnetic media, Yes Low level format.
replaceable various sizes in GB.
Hard drive User Non-volatile magnetic media, Yes Low level format.
replaceable various sizes in GB.
M.2 Solid State Disk User Non-volatile magnetic media, Yes Low level format.
replaceable various sizes in GB.
March 2022
Page Summary Contents For Dell OptiPlex 5000 Tower Statement of Volatility
Manual Details
| Brand | Dell |
|---|---|
| Pages | 2 |
| File Size | 166.86 KB |
| Published | June 26, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What types of power loss destroy all user data on the memory?
Primary power loss (unplugging the power cord or removing the battery) will destroy all user data on the DDR4 memory.
How is "suspend to RAM" mode defined regarding power?
S3 state maintains dynamic RAM. It requires that both the OS and peripherals support this state.
Which components retain their data after power is removed?
Non-volatile components like hard drives, M.2 SSDs, and embedded flash retain data even if power is disconnected.
What does removing the on-board coin cell battery affect?
Removing the coin cell (BT1) will destroy system configurational and time-of-day information stored in the CMOS memory.
