Dell OptiPlex 7000 Tower Statement of Volatility

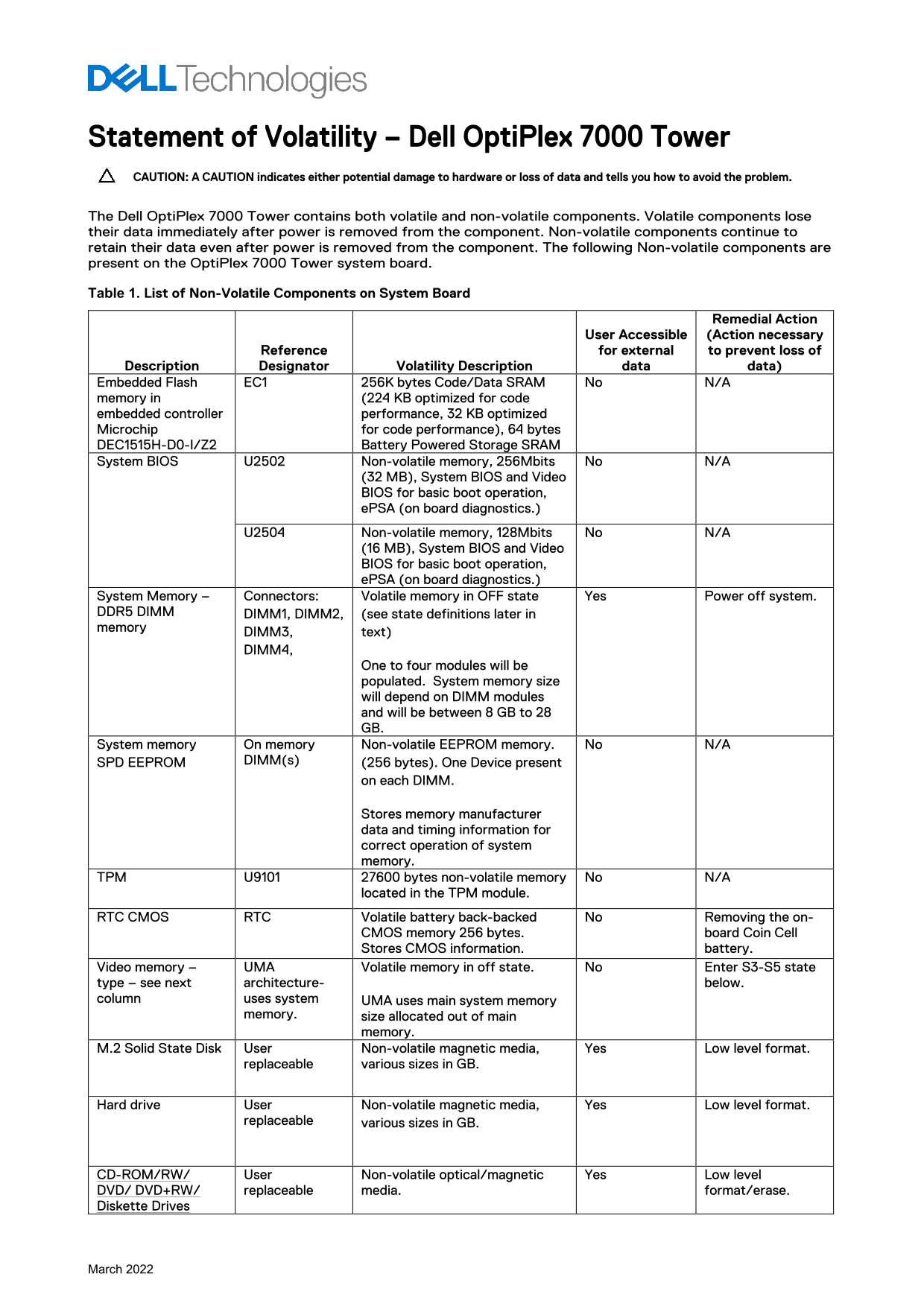

Statement of Volatility – Dell Opti Plex 7000 Tower CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. The Dell Opti Plex 7000 Tower contains both volatile and non-volatile components. Volatile components lose their data immediately after power is removed from the component. Non-volatile components continue to retain their data even after power is removed from the component. The following Non-volatile components are present on the Opti Plex 7000 Tower system board. Table 1. List of Non-Volatile Components on System Board

Remedial Action

User Accessible (Action necessary

Reference for external to prevent loss of

Description Designator Volatility Description data data) Embedded Flash EC1 256K bytes Code/Data SRAM No N/A memory in (224 KB optimized for code embedded controller performance, 32 KB optimized Microchip for code performance), 64 bytes DEC1515H-D0-I/Z2 Battery Powered Storage SRAM System BIOS U2502 Non-volatile memory, 256Mbits No N/A

(32 MB), System BIOS and Video BIOS for basic boot operation, e PSA (on board diagnostics.)

U2504 Non-volatile memory, 128Mbits No N/A

(16 MB), System BIOS and Video BIOS for basic boot operation, e PSA (on board diagnostics.)

System Memory – Connectors: Volatile memory in OFF state Yes Power off system. DDR5 DIMM DIMM1, DIMM2, (see state definitions later in memory

DIMM3, text) DIMM4,

One to four modules will be populated. System memory size will depend on DIMM modules and will be between 8 GB to 28 GB.

System memory On memory Non-volatile EEPROM memory. No N/A

SPD EEPROM DIMM(s) (256 bytes). One Device present

on each DIMM.

Stores memory manufacturer data and timing information for correct operation of system memory.

TPM U9101 27600 bytes non-volatile memory No N/A

located in the TPM module.

RTC CMOS RTC Volatile battery back-backed No Removing the on-

CMOS memory 256 bytes. board Coin Cell Stores CMOS information. battery.

Video memory – UMA Volatile memory in off state. No Enter S3-S5 state type – see next architecture- below. column uses system UMA uses main system memory

memory. size allocated out of main

memory.

M.2 Solid State Disk User Non-volatile magnetic media, Yes Low level format.

replaceable various sizes in GB.

Hard drive User Non-volatile magnetic media, Yes Low level format.

replaceable various sizes in GB.

CD-ROM/RW/ User Non-volatile optical/magnetic Yes Low level DVD/ DVD+RW/ replaceable media. format/erase. Diskette Drives
