Dell Inspiron 24-5400 Service Manual
Summary
The Dell Inspiron 24-5400 Service Manual with regulatory model W24C provides component-level repair instructions for this all-in-one desktop. It covers electrostatic discharge (ESD) protection procedures, ESD field service kit requirements, and an inside-view diagram of all internal components. Technicians can follow step-by-step removal and replacement instructions for memory, storage, wireless modules, and the system board on the Inspiron 24-5400 compact desktop.
Page 1 Text Content

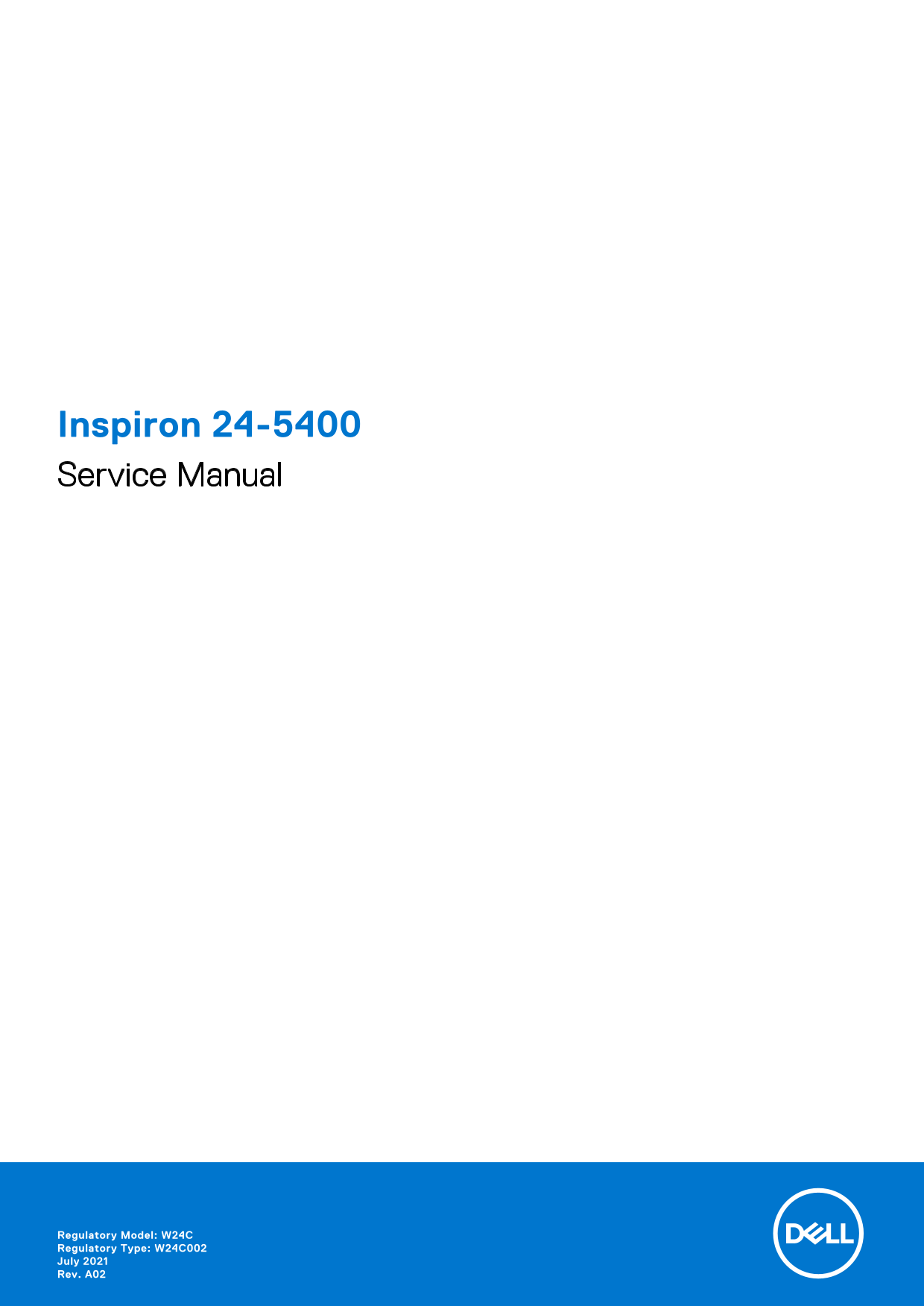

Inspiron 24-5400 Service Manual
Regulatory Model: W24C Regulatory Type: W24C002 July 2021 Rev. A02
Page Summary Contents For Dell Inspiron 24-5400 Service Manual
Page 1
Inspiron 24-5400 Service Manual Regulatory Model: W24C Regulatory Type: W24C002 July 2021 Rev. A02
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3
Contents Chapter 1: Safety instructions.......................................................................................................6 Before working inside your computer........................
Page 4
Installing the media-card reader.............................................................................................................................. Speakers....................................
Page 5
Display built-in self test................................................................................................................................................... Diagnostics..................
Page 6
Safety instructions Use the following safety guidelines to protect your computer from potential damage and to ensure your personal safety. Unless otherwise noted, each procedure included in this docum...
Page 7
5. Remove any media card and optical disc from your computer, if applicable. 6. After the computer is unplugged, press and hold the power button for 5 seconds to ground the system board. CAUTION: Plac...
Page 8
ESD Wrist Strap Tester – The wires inside of an ESD strap are prone to damage over time. When using an unmonitored kit, it is a best practice to regularly test the strap prior to each service call, an...
Page 9
Removing and installing components NOTE: The images in this document may differ from your computer depending on the configuration you ordered. Inside view of your computer NOTE: The appearance of heat...
Page 10
Phillips screwdriver #1 Flat-head screwdriver Plastic scribe Screw list NOTE: When removing screws from a component, it is recommended to note the screw type, the quantity of screws, and then place th...
Page 11
Table 1. Screw list (continued) Component Secured to Screw type Quantity Screw image Antenna modules Base panel M2x2.5 System board Display-assembly base M3 0.5x5 Base panel Display-assembly base M3x5...
Page 12
Steps 1. Place your palm in the middle of the back cover then pry the back cover from the display-assembly base starting from the top corners. 2. Remove the back cover from the display-assembly base. ...
Page 13
Steps Align the slots on the back cover with the slots on the computer and press along the side to snap the back cover into place. Next steps 1. Follow the procedure in After working inside your compu...
Page 14
Steps 1. Remove the five screws (M3x5) that secure the bottom cover to the display-assembly base. 2. Lift the bottom cover off the display-assembly base. Installing the bottom cover Prerequisites If y...
Page 15
Steps 1. Align the screw holes on the bottom cover with the screw holes on the display-assembly base. 2. Replace the five screws (M3x5) that secure the bottom cover to the display-assembly base and sn...
Page 16
Steps 1. In the reverse sequential order indicated on the stand, remove the eight screws (M3x4) that secure the stand to the display-assembly base. 2. Remove the stand from the slots on the display-as...
Page 17
Steps 1. Align the screw holes on the stand with the screw holes on the display-assembly base and slide the stand on the display- assembly base. 2. In the sequential order indicated on the stand, repl...
Page 18
Steps 1. Remove the two screws (M3x5) that secure the hard-drive assembly to the display-assembly base. 2. Slide the hard-drive assembly away from the hard-drive slot on the display-assembly base. 3. ...
Page 19
Steps 1. Align the screw holes on the hard drive with the screw holes on the hard-drive bracket. 2. Replace the four screws (M3x3.5) that secure the hard-drive bracket to the hard drive. 3. Slide the ...
Page 20
Steps 1. Remove the four screws (M3x5) that secure the system-board shield to the display-assembly base. 2. Lift the system-board shield off the display-assembly base. Installing the system-board shie...
Page 21
Steps 1. Align the slots on the system-board shield with the ports on the computer. 2. Replace the four screws (M3x5) that secure the system-board shield to the display-assembly base. Next steps 1. In...
Page 22
Steps 1. Using your fingertips, spread apart the securing clips on the memory-module slot until the memory module pops up. 2. Slide and remove the memory module from the memory-module slot. NOTE: Repe...
Page 23
Steps 1. Align the notch on the memory module with the tab on the memory-module slot. 2. Slide the memory module firmly into the slot at an angle and press the memory module down until it clicks into ...
Page 24
Steps 1. Using your fingertip, press on the metal clip to release the coin-cell battery from the coin-cell battery holder. 2. Lift the coin-cell battery from the coin-cell battery holder. Installing t...
Page 25
Steps With the positive-side facing up, insert the coin-cell battery into the battery socket on the system board and snap the battery into place. Next steps 1. Install the system-board shield. 2. Inst...
Page 26
Steps 1. In reverse sequential order (as indicated on the heat sink), loosen the eight captive screws that secure the heat sink to the system board and the display-assembly base. 2. Lift the heat sink...
Page 27
Steps 1. Align the screw holes on the heat sink with the screw holes on the system board and the display assembly base. 2. In sequential order (as indicated on the heat sink), tighten the eight captiv...
Page 28
Steps 1. Remove the two screws (M2x4) that secure the wireless-card shield to the system board. 2. Lift the wireless-card shield off the system board and wireless card. 3. Remove the screw (M2x4) that...
Page 29
5. Disconnect the antenna cables from the wireless card. 6. Slide and remove the wireless card from the wireless-card slot. Installing the wireless card Prerequisites If you are replacing a component,...
Page 30
Steps 1. Connect the antenna cables to the wireless card. The following table provides the antenna-cable color scheme for the wireless card supported by your computer. Table 2. Antenna-cable color sch...
Page 31
Steps 1. Remove the screw (M2x2.5) that secures the solid-state drive to the system board. 2. Slide and remove the solid-state drive from the M.2 card slot on the system board. Installing the solid-st...
Page 32
Steps 1. Align the notch on the solid-state drive with the tab on the M.2 card slot. 2. Slide the solid-state drive into the M.2 card slot on the system board. 3. Replace the screw (M2x2.5) that secur...
Page 33
Steps 1. Remove the screw (M2x3) that secure the media-card reader to the display-assembly base. 2. Open the latch and disconnect the media-card reader cable from the system board. 3. Remove the media...
Page 34
Steps 1. Connect the media-card reader cable to the system board and close the latch to secure the cable. 2. Insert the media-card reader into the media-card reader slot. 3. Align the screws on the me...
Page 35
Steps 1. Disconnect the speaker cable from the system board and remove it from the routing guide on display-assembly base. 2. Remove the six screws (M3 4+7.1x ZN) that secure the speakers to the displ...
Page 36
Steps 1. Align the screw holes on the speakers with the screw holes on the display-assembly base and route the cable through the routing guides on display-assembly base. 2. Replace the eight screws (M...
Page 37
Steps 1. Disconnect the microphone cable from the system board and release it from the routing guides on the display-assembly base. 2. Remove the eight screws (M2X2.5) that secure the microphone modul...
Page 38
Steps 1. Align the microphone modules (2) with their slots on the base panel. 2. Route the cable through the routing guides on the display-assembly base. 3. Replace the eight screws (M2X2.5) that secu...
Page 39
3. Remove the bottom cover. 4. Remove the stand. 5. Remove the system-board shield. About this task The following image indicates the location of the fan and provides a visual representation of the re...
Page 40
Steps 1. Align the screw holes on the fan with the screw holes on the display-assembly base. 2. Replace the three screws (M2x2.5) that secure the fan to the display-assembly base. 3. Route the fan cab...
