Dell Inspiron 24-5400 Setup Guide & Specifications
Summary
This setup and specifications guide provides instructions for setting up and using the Dell Inspiron 24-5400 all-in-one desktop. It covers initial setup, technical specifications, system features, and maintenance procedures. Designed for new owners, the guide explains how to set up the computer, connect peripherals, and configure system settings. Technical specifications and safety information are also provided.
Page 1 Text Content
Inspiron 24-5400 Setup and Specifications
Regulatory Model: W24C Regulatory Type: W24C002 April 2022 Rev. A03
Page Summary Contents For Dell Inspiron 24-5400 Setup Guide & Specifications

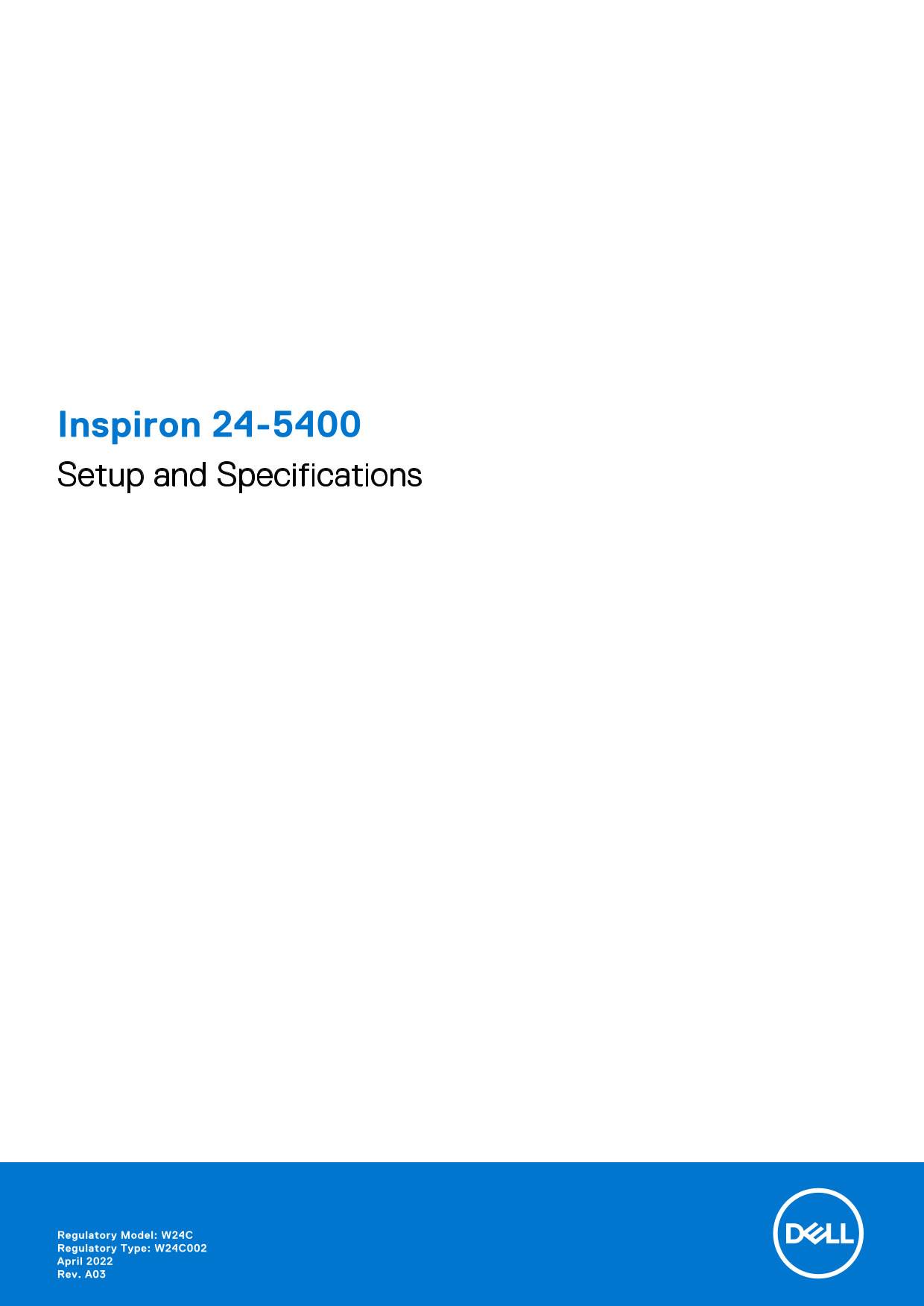

Page 1
Inspiron 24-5400 Setup and Specifications Regulatory Model: W24C Regulatory Type: W24C002 April 2022 Rev. A03
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3
Contents Chapter 1: Set up your computer................................................................................................... Chapter 2: Views of Inspiron 24-5400...........................
Page 4
Set up your computer 1. Set up the keyboard and mouse. NOTE: For setup instructions, see the documentation shipped with the keyboard and mouse. 2. Connect the power cable. 3. Press the power button. S...
Page 5
4. Finish Windows setup. Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you: Connect to a network for Windows updates. NOTE: If connecting to a secured ...
Page 6
Table 1. Locate Dell apps (continued) Resources Description Dell Digital Delivery Download software applications, which are purchased but not preinstalled on your computer. For more information about ...
Page 7
Views of Inspiron 24-5400 1. Retractable-camera assembly Enables you to videochat, capture photos, and record videos. This camera can be retracted to protect your privacy. 2. Left speaker Provides aud...
Page 8
Retractable camera Retractable camera for computers shipped with IR camera 1. Infrared emitter Emits infrared light, which enables the infrared camera to sense and track motion. 2. Infrared camera Enh...
Page 9
Enables you to video chat, capture photos, and record videos. 2. Camera-status light Turns on when the camera is in use. 1. Back panel Connect USB, audio, video, and other devices. For more informatio...
Page 10
Connect a security cable to prevent unauthorized movement of your computer. 2. Power-adapter port Connect a power adapter to provide power to your computer. 3. HDMI port Connect to a TV, external disp...
Page 11
1. Power button Press to turn on the computer if it is turned off, in sleep state, or in hibernate state. When the computer is turned on, press the power button to put the computer into sleep state; p...
Page 12
Tilt Bipod stand Views of Inspiron 24-5400
Page 13
Arch stand Views of Inspiron 24-5400
Page 14
A-Frame stand Views of Inspiron 24-5400
Page 15
Retractable camera Push the top of camera to extend or retract the camera. Extend the camera before use and retract the camera to protect your privacy when not in use. Retractable camera
Page 16
Specifications of Inspiron 24-5400 Stand Table 2. Stand Description Bipod stand Arch stand A-Frame stand Height 131.40 mm (5.17 in.) 127.71 mm (5.02 in.) 135 mm (5.31 in.) Width 477 mm (18.77 in.) 462...
Page 17
Arch stand Table 4. Arch stand Description Dimensions 412.80 mm (16.25 in.) 182 mm (7.16 in.) 395 mm (15.55 in.) 217.95 mm (8.59 in.) 539.65 mm (21.24 in.) A-Frame stand Table 5. A-Frame stand dimensi...
Page 18
Table 5. A-Frame stand dimensions (continued) Description Dimensions 202.30 mm (7.96 in.) 395 mm (15.55 in.) 215 mm (8.46 in.) 539.65 mm (21.24 in.) Dimensions and weight Table 6. Computer dimensions ...
Page 19
Table 7. Processor (continued) Description Option one Option two Option three Processor cache 6 MB 8 MB 12 MB Integrated graphics Intel UHD Graphics Intel Iris Xe Graphics Intel Iris Xe Graphics Chips...
Page 20
Table 9. Memory specifications (continued) Description Values 8 GB, 1 x 8 GB, DDR4, 2666 MHz 8 GB, 2 x 4 GB, DDR4, 2666 MHz 12 GB, 1 x 8 GB + 1 x 4 GB, DDR4, 2666 MHz 16 GB, 1 x 16 GB, DDR4, 2666 MHz ...
Page 21
Ethernet The following table lists the wired Ethernet Local Area Network (LAN) specifications of your Inspiron 24-5400. Table 11. Ethernet specifications Description Values Model number Realtek RTL811...
Page 22
Table 13. Audio specifications (continued) Description Values Speaker output: Average speaker output Peak speaker output Subwoofer output Not supported Microphone Digital-array microphones Storage Thi...
Page 23
Camera The following table lists the camera specifications of your Inspiron 24-5400. Table 16. Camera specifications Description Values Number of cameras Camera type HD RGB camera FHD RGB + infrared c...
Page 24
Table 17. Display specifications (continued) Description Values Megapixels Color gamut 72% NTSC Pixels Per Inch (PPI) Contrast ratio (min) Response time (max) 25 ms Refresh rate 60 Hz Horizontal view ...
Page 25
GPU—Integrated The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your Inspiron 24-5400. Table 19. GPU—Integrated Controller Memory size Process...
Page 26
Getting help and contacting Dell Self-help resources You can get information and help on Dell products and services using these self-help resources: Table 22. Self-help resources Self-help resources R...
Manual Details
| Brand | Dell |
|---|---|
| Pages | 26 |
| File Size | 3.43 MB |
| Published | July 01, 2026 |
5 views
Enter the captcha to get the download link:
Frequently Asked Questions
What are the dimensions and weight of the Inspiron 24-5400?
Dimensions are 21.6 x 7.4 x 18.3 cm, and the weight is 2.5 kg (5.5 lb).
How do I find my Dell Service Tag?
The Service Tag is located on the bottom of the computer, and you can use it at www.dell.com/support to get relevant resources.
What is the altitude range for operating this computer?
The computer is designed to operate between an altitude of 0 to 3,048 meters (0 to 10,000 ft).
How can I contact Dell for support?
Visit www.dell.com/contactdell for sales, technical support, or customer service, or use the 'Contact Support' app in Windows.
