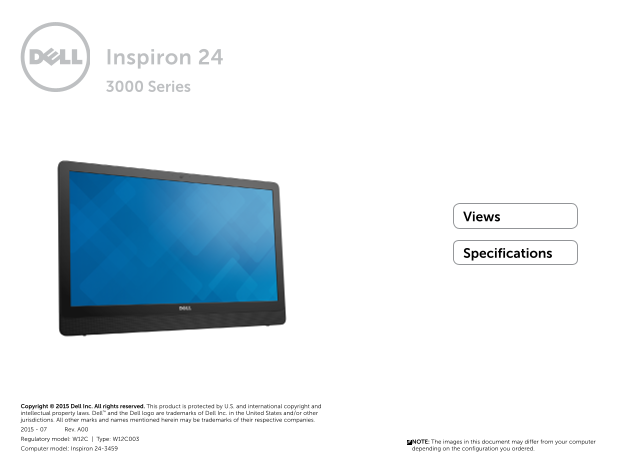

Page 1
Inspiron 24 3000 Series Views Specifications Copyright © 2015 Dell Inc. All rights reserved. This product is protected by U.S. and international copyright and intellectual property laws. Dell™ and the...
Page 2
Views Specifications Camera Microphone (on computers with Allows you to video chat, capture photos, and record non-touchscreen display only) videos. Provides high‑quality digital sound input for audio...
Page 3
Views Specifications Media-card reader Headset port Reads from and writes to media cards. Connect a headphone, a microphone, or a headphone and microphone combo (headset). USB 3.0 ports (2) Connect pe...
Page 4
Views Specifications Optical drive (optional) Power button Reads from and writes to CDs and DVDs. Press to turn on the computer if it is turned off, in sleep state, or in hibernate state. Display-brig...
Page 5
Views Specifications Audio-out port Network port Connect audio‑output devices such as speakers, Connect an Ethernet (RJ45) cable from a router or a amplifiers, and so on. broadband modem for network o...
Page 6
Views Specifications Easel Stand Pedestal Stand
Page 7
Specifications Views Dimensions and weight Height: Easel stand 387.33 mm (15.25 in) Pedestal stand 440.33 mm (17.34 in) Width 576.62 mm (22.70 in) Depth: With easel stand With pedestal stand Without s...
Page 8
Specifications Views System information Computer model Inspiron 24‑3459 Processor 6th Generation Intel Core i3 Processor 6th Generation Intel Core i5 Processor System chipset Integrated in processor D...
Page 9
Specifications Views Memory Slots Two SODIMM slots Type Dual‑channel DDR3L Speed Up to 1600 MHz Configurations supported 2 GB, 4 GB, and 8 GB Dimensions and System Ports and Memory Communications Vide...
Page 10
Specifications Views Ports and connectors External: Network One RJ45 port USB Two USB 2.0 ports Two USB 3.0 ports Audio/Video One combo jack port One audio line‑out port One HDMI‑in port Internal: M.2...
Page 11
Specifications Views Communications Ethernet 10/100/1000 Mbps Ethernet controller integrated on system board Wireless Wi‑Fi 802.11b/g/n Wi‑Fi 802.11ac Bluetooth 4.0 Dimensions and System Ports and Mem...
Page 12
Specifications Views Video Controller: Integrated Integrated in processor Discrete AMD Radeon R5 A335 Memory: Integrated Shared system memory Discrete 2GB DDR3L Dimensions and System Ports and Memory ...
Page 13
Specifications Views Audio Controller Realtek ALC3661 Waves Maxx Audio Pro Speakers Two Speaker output: Average 3 W Peak 3.5 W Microphone Digital single microphone Volume controls Program menus Dimens...
Page 14
Specifications Views Storage Interface SATA 3 Gbps for optical drive SATA 6 Gbps for hard drive Hard drive One 2.5‑in drive Optical drive One 9.5‑mm DVD+/‑RW drive (optional) Dimensions and System Por...
Page 15
Specifications Views Media-card reader Type One 4‑in‑1 slot Cards supported SD card Multi Media Card (MMC) SD Extended Capacity (SDXC) card SD High Capacity (SDHC) card Dimensions and System Ports and...
Page 16
Specifications Views Display Type 23.8‑in FHD touchscreen 23.8‑in FHD non‑touchscreen Resolution (maximum) 1920 x 1080 Dimensions: Height 296.46 mm (11.67 in) Width 527.04 mm (20.75 in) Diagonal 604.7...
Page 17
Specifications Views Camera Resolution: Still image 0.92 megapixels Video 1280 x 720 at 30 fps (maximum) Diagonal viewing angle 74 degrees Dimensions and System Ports and Memory Communications Video A...
Page 18
Specifications Views Stand Easel stand Pedestal stand Height 174.80 mm (6.88 in) 227.70 mm (8.96 in) Width 120 mm (4.72 in) 205.60 mm (8.09 in) Depth 22.77 mm (0.90 in) 225.42 mm (8.87 in) Operating a...
Page 19
Specifications Views Power adapter Type 65 W Input voltage 100 VAC–240 VAC Input frequency 50 Hz–60 Hz Input current (maximum) 1.70 A/2.50 A Output current: 65 W 3.34 A 90 W 4.62 A Rated output voltag...
Page 20
Specifications Views Computer environment Airborne contaminant level G1 as defined by ISA‑S71.04‑1985 Operating Storage Temperature range 0°C to 35°C (32°F to 95°F) –40°C to 65°C (–40°F to 149°F) Rela...
