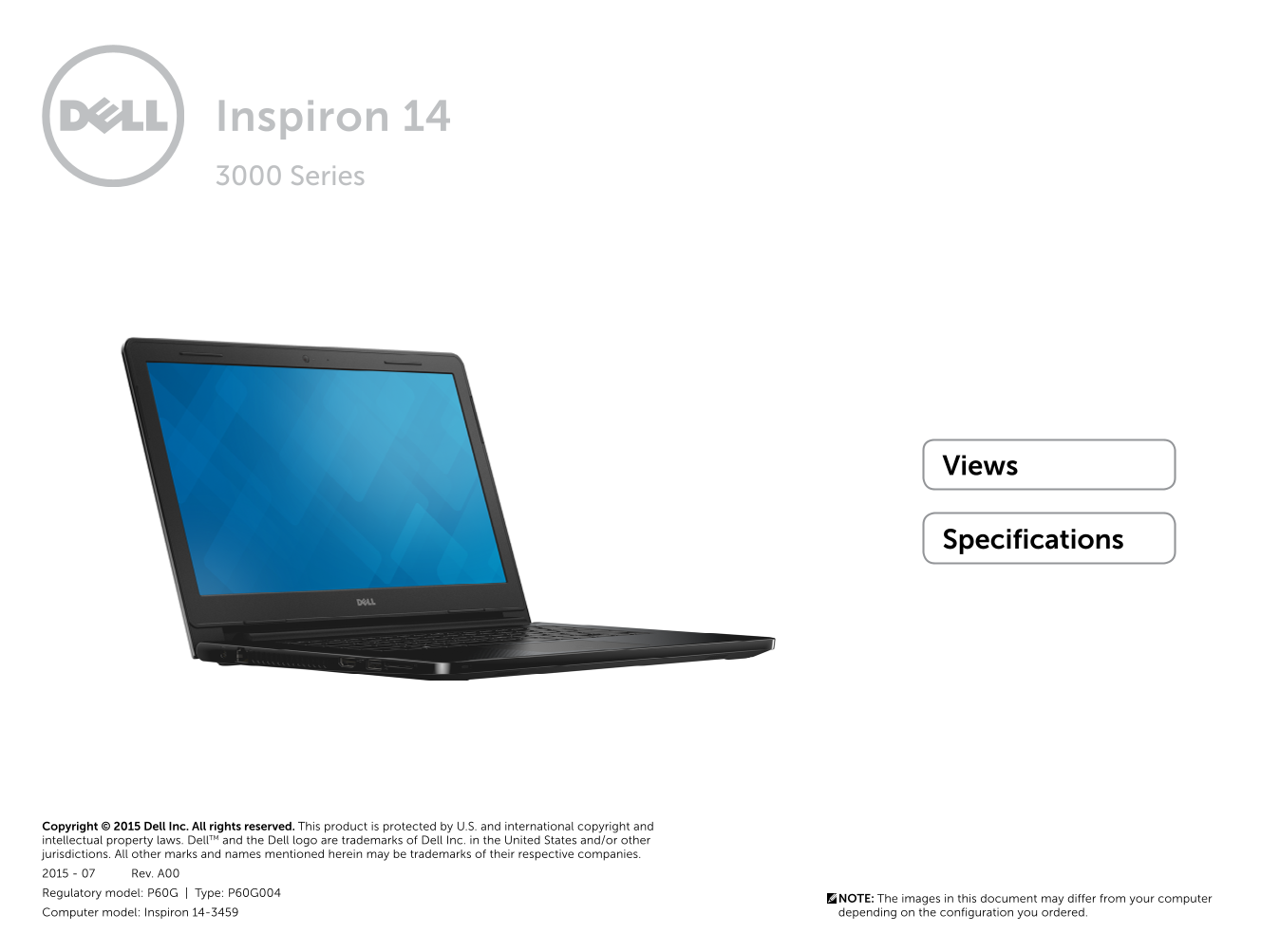

Page 1
Inspiron 14 3000 Series Views Specifications Copyright © 2015 Dell Inc. All rights reserved. This product is protected by U.S. and international copyright and intellectual property laws. Dell TM and t...
Page 2
Views Specifications Power and battery-status light/hard-drive Battery-status light activity light Indicates the battery status. Indicates the battery‑charge status or the hard‑drive activity. Solid w...
Page 3
Views Specifications Power-adapter port USB 3.0 port Connect a power adapter to provide power to your Connect peripherals such as storage devices, printers, computer and charge the battery. and so on....
Page 4
Views Specifications Headset port Security-cable slot Connect a headphone, a microphone, or a headset Connect a security cable to prevent unauthorized (headphone and microphone combo). movement of you...
Page 5
Views Specifications Left-click area Power button Press to left‑click. Press to turn on the computer if it is turned off or in sleep state. Touch pad Press to put the computer in sleep state if it is ...
Page 6
Views Specifications Display Camera Microphone Allows you to video chat, capture photos, and record Provides sound input for audio recording, voice calls, videos. and so on. Camera-status light Turns ...
Page 7
Specifications Views Dimensions and weight Height 21.4 mm (0.84 in) Width 345 mm (13.58 in) Depth 243 mm (9.57 in) Weight (maximum) 1.90 kg (4.19 lb) NOTE: The weight of your laptop varies depending o...
Page 8
Specifications Views System information Computer model Inspiron 14‑3459 Processor Intel Celeron Dual Core Intel Pentium Dual Core 6th Generation Intel Core i3 6th Generation Intel Core i5 Chipset Inte...
Page 9
Specifications Views Memory Slot Two SODIMM slots Type DDR3L Speed 1600 MHz Configurations supported 2 GB and 4 GB Dimensions and System Ports and Memory Communications Video Audio Storage weight info...
Page 10
Specifications Views Ports and connectors External: USB Two USB 2.0 ports One USB 3.0 port Audio/video One HDMI port One headset (headphone and microphone combo) port Internal: M.2 One M.2 slot for Wi...
Page 11
Specifications Views Communications Wireless Wi‑Fi 802.11ac Wi‑Fi 802.11b/g/n Bluetooth 4.0 Intel Wi Di (optional) Dimensions and System Ports and Memory Communications Video Audio Storage weight info...
Page 12
Specifications Views Video Controller: Integrated Intel HD Graphics 510 Intel HD Graphics 520 Discrete AMD Radeon R5 M315 Memory: Integrated Shared system memory Discrete 1 GB DDR3 2 GB DDR3 Dimension...
Page 13
Specifications Views Audio Controller Realtek ALC3234 with Waves Maxx Audio Speakers Two Speaker output: Average 2.0 W Peak 2.5 W Microphone Single digital microphone in the camera assembly Volume con...
Page 14
Specifications Views Storage Interface SATA 6 Gbps Hard drive One 2.5‑inch drive (supports Intel Rapid Storage Technology) Dimensions and System Ports and Memory Communications Video Audio Storage wei...
Page 15
Specifications Views Media-card reader Type SD‑card slot Dimensions and System Ports and Memory Communications Video Audio Storage weight information connectors Media‑card Computer Display Keyboard To...
Page 16
Specifications Views Display Type 14.0‑inch HD with Truelife Resolution (maximum) 1366 x 768 Dimensions: Height 225.06 mm (8.86 in) Width 366.63 mm (14.43 in) Diagonal 355.60 mm (14.00 in) Refresh rat...
Page 17
Specifications Views Keyboard Type Chiclet keyboard Shortcut keys Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary funct...
Page 18
Keyboard Shortcut keys Mute audio Toggle Fn‑key lock Decrease volume Turn off/on wireless Increase volume Open application menu Play previous track/chapter Sleep Play/Pause Pause/Break Play next track...
Page 19
Specifications Views Camera Resolution: Still image 0.92 megapixel Video 1280 x 720 (HD) at 30 fps (maximum) Diagonal viewing angle 74 degrees Dimensions and System Ports and Memory Communications Vid...
Page 20
Specifications Views Touch pad Resolution: Horizontal Vertical Dimensions: Height 65 mm (2.56 in) Width 105 mm (4.13 in) Dimensions and System Ports and Memory Communications Video Audio Storage weigh...
Page 21
Specifications Views Battery Type 4‑cell 40 WHr smart Lithium ion 4‑cell 47 WHr smart Lithium ion Dimensions: Height 20.0 mm (0.79 in) Width 270.2 mm (10.64 in) Depth 37.5 mm (1.48 in) Weight (maximum...
Page 22
Specifications Views Power adapter Type 45 W Input voltage 100 VAC–240 VAC Input frequency 50 Hz–60 Hz Input current (maximum): 45 W 1.30 A 65W 1.60 A/1.70 A Output current (maximum): 45 W 2.31 A 65W ...
Page 23
Specifications Views Computer environment Airborne contaminant level G1 as defined by ISA‑S71.04‑1985 Operating Storage Temperature range 0°C to 35°C (32°F to 95°F) –40°C to 65°C (–40°F to 149°F) Rela...
