Dell Inspiron 24 3452 Specifications

Summary

Discover the full capabilities of the Inspiron 24-3000 Series desktop computer. This manual provides comprehensive, technical specifications covering hardware connectivity, including multiple USB ports, integrated network options, media card readers, and audio connections. Whether you are a general user or an IT professional, the guide details dimensions, communication standards (Wi-Fi, Bluetooth), power requirements, and performance capabilities, ensuring accurate setup and integration of your powerful system.

📄 Preview ‹ PAGE OF 20 ›

‹

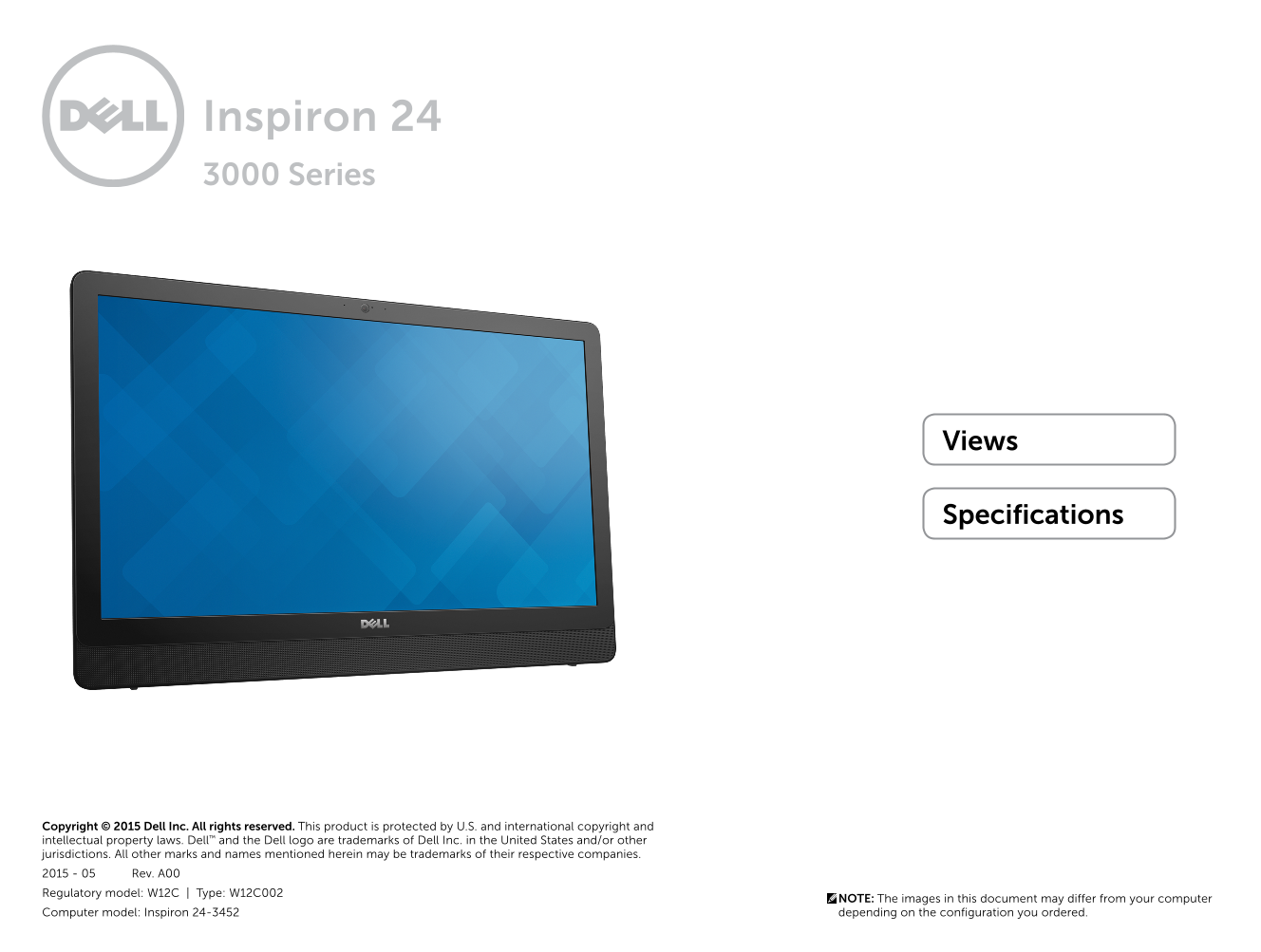

Dell Inspiron 24 3452 Specifications - Page 1

›

Page 1 Text Content

Inspiron 24 3000 Series

Views

Specifications

Copyright © 2015 Dell Inc. All rights reserved. This product is protected by U.S. and international copyright and intellectual property laws. Dell™ and the Dell logo are trademarks of Dell Inc. in the United States and/or other jurisdictions. All other marks and names mentioned herein may be trademarks of their respective companies. 2015 ‑ 05 Rev. A00 Regulatory model: W12C | Type: W12C002

NOTE: The images in this document may differ from your computer

Computer model: Inspiron 24‑3452 depending on the configuration you ordered.

Page Summary Contents For Dell Inspiron 24 3452 Specifications

Page 1 Inspiron 24 3000 Series Views Specifications Copyright © 2015 Dell Inc. All rights reserved. This product is protected by U.S. and international copyright and intellectual property laws. Dell™ and the...

Page 2 Views Specifications Camera Microphone (on computers with Allows you to video chat, capture photos, and record non-touchscreen display only) videos. Provides high‑quality digital sound input for audio...

Page 3 Views Specifications Media-card reader Headset port Reads from and writes to media cards. Connect a headphone, a microphone, or a headphone and microphone combo (headset). USB 3.0 ports (2) Connect pe...

Page 4 Views Specifications Optical drive (optional) Power button Reads from and writes to CDs and DVDs. Press to turn on the computer if it is turned off, in sleep state, or in hibernate state. Display-brig...

Page 5 Views Specifications Audio-out port Network port Connect audio‑output devices such as speakers, Connect an Ethernet (RJ45) cable from a router or a amplifiers, and so on. broadband modem for network o...

Page 6 Views Specifications Easel Stand Pedestal Stand

Page 7 Specifications Views Dimensions and weight Height: Easel stand 387.33 mm (15.25 in) Pedestal stand 440.33 mm (17.34 in) Width 576.62 mm (22.70 in) Depth: With easel stand With pedestal stand Without s...

Page 8 Specifications Views System information Computer model Inspiron 24‑3452 Processor Intel Pentium Processor Intel Celeron Processor System chipset Integrated in processor Dimensions and System Ports and...

Page 9 Specifications Views Memory Slot One SODIMM slot Type Single‑channel DDR3L Speed Up to 1600 MHz Configurations supported 2 GB, 4 GB, and 8 GB Dimensions and System Ports and Memory Communications Vide...

Page 10 Specifications Views Ports and connectors External: Network One RJ45 port USB Two USB 2.0 ports Two USB 3.0 ports Audio/Video One combo jack port One audio line‑out port Internal: M.2 card One M.2 car...

Page 11 Specifications Views Communications Ethernet 10/100/1000 Mbps Ethernet controller integrated on system board Wireless Wi‑Fi 802.11b/g/n Wi‑Fi 802.11ac Bluetooth 4.0 Dimensions and System Ports and Mem...

Page 12 Specifications Views Video Controller: Integrated Integrated in processor Discrete AMD Radeon R5 A315 Memory: Integrated Shared system memory Discrete 2GB DDR3L Dimensions and System Ports and Memory ...

Page 13 Specifications Views Audio Controller Realtek ALC3661 Waves Maxx Audio Speakers Two Speaker output: Average 2 W Peak 2.5 W Microphone Digital‑array microphones Volume controls Program menus Dimensions...

Page 14 Specifications Views Storage Interface SATA 3 Gbps for optical drive SATA 6 Gbps for hard drive Hard drive One 2.5‑in drive Optical drive One 9.5‑mm DVD+/‑RW drive (optional) Dimensions and System Por...

Page 15 Specifications Views Media-card reader Type One 4‑in‑1 slot Cards supported SD card Multi Media Card (MMC) SD Extended Capacity (SDXC) card SD High Capacity (SDHC) card Dimensions and System Ports and...

Page 16 Specifications Views Display Type 23.8‑in FHD touchscreen 23.8‑in FHD non‑touchscreen Resolution (maximum) 1920 x 1080 Dimensions: Height 317.40 mm (12.50 in) Width 543 mm (21.38 in) Diagonal 604.52 m...

Page 17 Specifications Views Camera Resolution: Still image 0.92 megapixels Video 1280 x 720 at 30 fps (maximum) Diagonal viewing angle 74 degrees Dimensions and System Ports and Memory Communications Video A...

Page 18 Specifications Views Stand Easel stand Pedestal stand Height 174.80 mm (6.88 in) 227.70 mm (8.96 in) Width 120 mm (4.72 in) 205.60 mm (8.09 in) Depth 22.77 mm (0.90 in) 225.42 mm (8.87 in) Operating a...

Page 19 Specifications Views Power adapter Type 45 W Input voltage 100 VAC–240 VAC Input frequency 50 Hz–60 Hz Input current (maximum): 45 W 1.30 A 65 W 1.70 A Output current (maximum): 45 W 2.31 A 65 W 3.34 ...

Page 20 Specifications Views Computer environment Airborne contaminant level G1 as defined by ISA‑S71.04‑1985 Operating Storage Temperature range 0°C to 35°C (32°F to 95°F) –40°C to 65°C (–40°F to 149°F) Rela...

Manual Details

Brand	Dell
Pages	20
File Size	2.24 MB
Published	June 23, 2026

8 views

Enter the captcha to get the download link:

Frequently Asked Questions

What are the display brightness controls?

You can use the dedicated Display-brightness increase and decrease buttons located on the right side of the unit.

How do I connect an external monitor or advanced peripherals?

Use the two USB 3.0 ports for high-speed peripheral connections, or utilize the Network port (RJ45) for internet access.

What type of memory slot is used in this model?

It has one SODIMM slot that supports single-channel DDR3L speed up to 1600 MHz.

Does the computer support e-reader or media cards?

Yes, there is a dedicated Media-card reader port on the left side of the unit for reading and writing media cards.
