Dell Inspiron 23 2350 Service Manual
Summary
The Dell Inspiron 2350 Service Manual with regulatory model W07C provides repair instructions for this 23-inch all-in-one desktop. It includes inside-view diagrams for computer-base components and the display panel with stand assembly, along with system board component layouts. Step-by-step procedures cover memory module, hard drive, optical drive, wireless card, and system board removal and replacement. Technicians can follow the prerequisite-based workflow for servicing this compact all-in-one
Page 1 Text Content

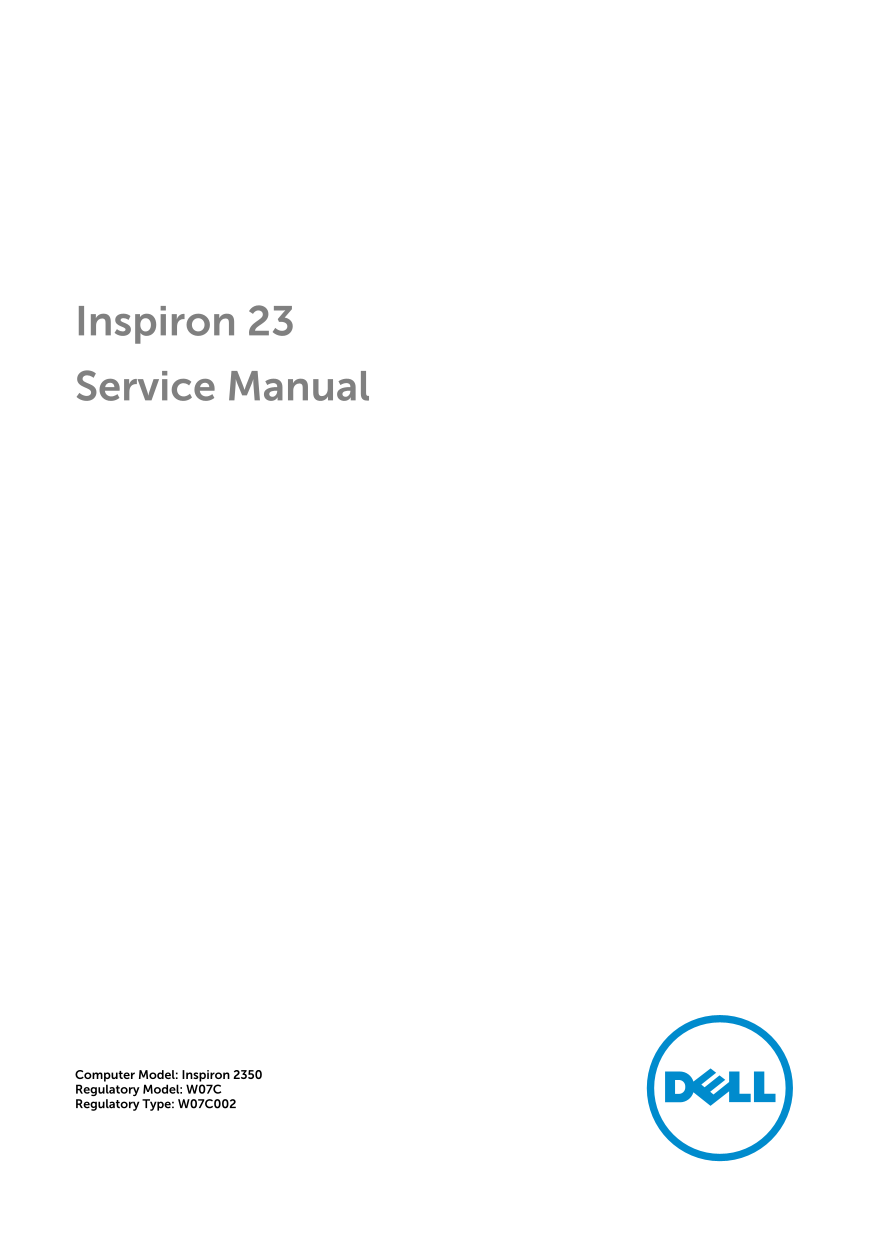

Inspiron 23 Service Manual
Computer Model: Inspiron 2350 Regulatory Model: W07C Regulatory Type: W07C002
Page Summary Contents For Dell Inspiron 23 2350 Service Manual
Page 1
Inspiron 23 Service Manual Computer Model: Inspiron 2350 Regulatory Model: W07C Regulatory Type: W07C002
Page 2
Notes, Cautions, and Warnings NOTE: A NOTE indicates important information that helps you make better use of your computer. CAUTION: A CAUTION indicates either potential damage to hardware or loss of ...
Page 3
Contents Before Working Inside Your Computer.................................10 Before You Begin ............................................................................................ Safety Ins...
Page 4
Replacing the Computer Base................................................ Procedure........................................................................................................ Post-requi...
Page 5
Replacing the Speakers............................................................42 Procedure ....................................................................................................... P...
Page 6
Replacing the Heat Sink........................................................... Procedure........................................................................................................ Pos...
Page 7
Replacing the Camera.............................................................. Procedure.........................................................................................................67 ...
Page 8
Replacing the Stand Assembly................................................82 Procedure........................................................................................................ Post-re...
Page 9
Getting Help and Contacting Dell........................................105 Self-Help Resources......................................................................................105 Contacting Dell...
Page 10
Before Working Inside Your Computer CAUTION: To avoid damaging the components and cards, handle them by their edges and avoid touching pins and contacts. NOTE: The images in this document may differ f...
Page 11
Safety Instructions Use the following safety guidelines to protect your computer from potential damage and ensure your personal safety. WARNING: Before working inside your computer, read the safety in...
Page 12
CAUTION: Press and eject any installed card from the media-card reader. Recommended Tools The procedures in this document may require the following tools: Philips screwdriver Flat-head screwdriver Pla...
Page 13
After Working Inside Your Computer CAUTION: Leaving stray or loose screws inside your computer may severely damage your computer. 1 Replace all screws and make sure that no stray screws remain inside ...
Page 14
Technical Overview WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working ...
Page 15
Computer-base Components heat sink fan coin-cell battery hard-drive assembly USB board speakers (2) m SATA card memory modules (2) processor wireless-mini card system board
Page 16
Display Panel With Stand Assembly auxiliary antenna auxiliary antenna cable right microphone cable camera assembly camera cable left microphone cable main antenna cable main antenna display panel disp...
Page 17
System Board Components wireless-card slot (WLAN/Wi Di) display-cable connector (LVDS) camera-cable connector display-backlight cable connector (MONITOR_SIGNAL) processor socket fan-cable connector US...
Page 18
Removing the Memory Module(s) WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. Aft...
Page 19
2 Slide and lift the memory-module cover off the base cover. base cover memory-module cover captive screw NOTE: If the memory module accidentally slips and falls in the computer base, remove the base ...
Page 20
4 Remove the memory module from the memory-module slot. memory-module slot 2 securing clips (2) memory module
Page 21
Replacing the Memory Module(s) WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. Af...
Page 22
2 Insert the memory module into the memory-module slot, and press the memory module down until it clicks into place. NOTE: If you do not hear the click, remove the memory module and reinstall it. tab ...
Page 23
Removing the Base Cover WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After wor...
Page 24
4 Lift the base cover off the computer base. plastic scribe base cover
Page 25
Replacing the Base Cover WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After wo...
Page 26
Removing the Computer Base WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After ...
Page 27
3 Remove the screws that secure the computer base to the stand assembly. 4 Lift the computer base slightly and slide the display cables and antenna cables through the cable slot on the computer base. ...
Page 28
Replacing the Computer Base WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After...
Page 29
Removing the Hard Drive WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After wor...
Page 30
4 Slide and lift the hard-drive assembly off the computer base. screws (4) hard-drive assembly computer base system board speaker cable 5 Remove the screws that secure the hard-drive bracket to the ha...
Page 31
7 Remove the interposer from the hard drive. hard drive screws (4) interposer hard-drive bracket
Page 32
Replacing the Hard Drive WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After wo...
Page 33
Removing the Wireless Card WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After ...
Page 34
2 Slide and remove the wireless card from the wireless-card slot on the system board. screws (2) wireless-card slot wireless card
Page 35
Replacing the Wireless Card WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After...
Page 36
Removing the m SATA Card WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After wo...
Page 37
2 Slide and remove the m SATA card from the m SATA-card slot on the system board. m SATA-card slot m SATA card screw system board
Page 38
Replacing the m SATA Card WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After w...
Page 39
3 Press the other end of the m SATA card down and replace the screw that secures the m SATA card to the system board. m SATA card m SATA-card slot tab notch screw system board Post-requisites 1 Replac...
Page 40
Removing the Speakers WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After worki...
