Page 1

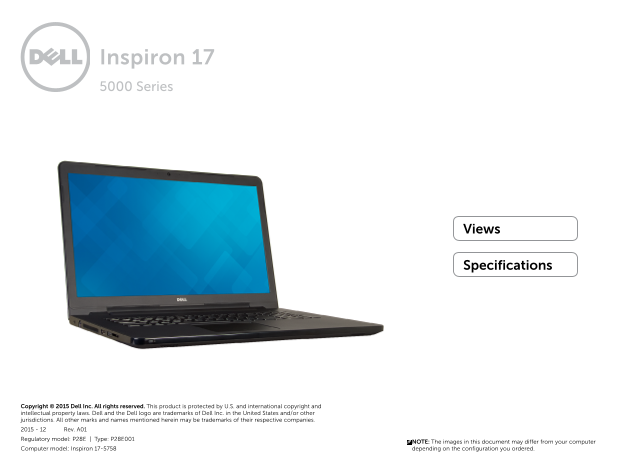

Inspiron 17 5000 Series Views Specifications Copyright © 2015 Dell Inc. All rights reserved. This product is protected by U.S. and international copyright and intellectual property laws. Dell and the ...
Page 2
Views Specifications Power and battery-status light/hard-drive Power and battery-status light activity light Indicates the power and battery‑charge status. NOTE: Press Fn+H to toggle this light betwee...
Page 3
Views Specifications Power-adapter port HDMI port Connect a power adapter to provide power to your Connect a TV or another HDMI‑in enabled device. computer and charge the battery. Provides video and a...
Page 4
Views Specifications Headset port Optical drive Connect a headphone, a microphone, or a headset Reads from and writes to CDs and DVDs. (headphone and microphone combo). Security-cable slot USB 2.0 por...
Page 5
Views Specifications Left-click area Power button Press to left‑click. Press to turn on the computer if it is turned off, in sleep state or in hibernate state. Touch pad Press to put the computer in s...
Page 6
Views Specifications Display Left microphone Camera-status light Provides digital sound input for audio recording, voice Turns on when the camera is in use. calls, and so on. Right microphone Camera P...
Page 7
Specifications Views Dimensions and weight Height: Touch 29.20 mm (1.15 in) Non‑touch 27 mm (1.06 in) Width 416.90 mm (16.41 in) Depth 283.20 mm (11.15 in) Weight (maximum): Touch 3.34 kg (7.36 lb) No...
Page 8
Specifications Views System information Computer model Inspiron 17‑5758 Processor • 4th Generation Intel Core i3 • 5th Generation Intel Core i3/i5/i7 • Intel Pentium Quad Core Chipset Integrated in pr...
Page 9
Specifications Views Memory Slot Two SODIMM slots Type DDR3L Speed 1600 MHz Configurations supported 4 GB, 6 GB, 8 GB, 12 GB, and 16 GB Dimensions and System Ports and Memory Communications Video Audi...
Page 10
Specifications Views Ports and connectors External: Network One RJ45 port USB • Two USB 2.0 ports • One USB 3.0 port Audio/video • One HDMI port • One headset (headphone and microphone combo) port Int...
Page 11
Specifications Views Communications Ethernet 10/100 Mbps Ethernet controller integrated on system board Wireless • Wi‑Fi 802.11b/g/n • Wi‑Fi 802.11ac • Bluetooth 4.0 • Intel Wi Di Dimensions and Syste...
Page 12
Specifications Views Video Controller: Integrated • Intel HD Graphics • Intel HD Graphics 4400 • Intel HD Graphics 5500 Discrete NVIDIA Ge Force 920M Memory: Integrated Shared system memory Discrete U...
Page 13
Specifications Views Audio Controller Realtek ALC3234 with Waves Maxx Audio Pro Speakers Two Speaker output: Average 2 W Peak 2.2 W Microphone Digital array‑microphones Volume controls Media‑control s...
Page 14
Specifications Views Storage Interface SATA 6 Gbps Hard drive One 2.5‑inch drive (supports Intel Smart Response Technology) Optical drive (optional) One 9.5‑mm DVD+/‑RW drive Dimensions and System Por...
Page 15
Specifications Views Media-card reader Type One SD card slot Cards supported • SD • SD High‑Capacity (SDHC) • SD Extended‑Capacity (SDXC) Dimensions and System Ports and Memory Communications Video Au...
Page 16
Specifications Views Display Type • 17.3‑inch FHD WLED touch screen 17.3‑inch HD+ WLED non‑touch screen • 17.3‑inch FHD WLED non‑touch screen Resolution (maximum) 1920 x 1080 1600 x 900 Pixel pitch 0....
Page 17
Specifications Views Keyboard Type • Standard keyboard • Backlit keyboard (optional) Shortcut keys Some keys on your keyboard have two symbols on them. These keys can be used to type alternate charact...
Page 18
Keyboard Shortcut keys Mute audio Turn off/on wireless Toggle between power and Decrease volume battery‑status light/hard‑drive activity light Increase volume Sleep Play previous track/chapter Toggle ...
Page 19
Specifications Views Camera Resolution: Still image 0.92 megapixel Video 1280 x 720 HD at 30 fps (maximum) Diagonal viewing angle 74 degrees Dimensions and System Ports and Memory Communications Video...
Page 20
Specifications Views Touch pad Resolution: Horizontal Vertical Dimensions: Width 105 mm (4.13 in) Height 80 mm (3.15 in) Dimensions and System Ports and Memory Communications Video Audio Storage weigh...
Page 21
Specifications Views Battery Type • 4‑cell “smart” lithium ion 40 WHr • 4‑cell “smart” lithium ion 47 WHr Dimensions: Width 270 mm (10.63 in) Depth 37.50 mm (1.47 in) Height 20 mm (0.78 in) Weight (ma...
Page 22
Specifications Views Power adapter Type • 45 W Input voltage 100 VAC–240 VAC Input frequency 50 Hz–60 Hz Input current: 45 W 1.30 A 65 W 1.60 A/1.70 A Output current: 45 W 2.31 A 65 W 3.34 A Rated out...
Page 23
Specifications Views Computer environment Airborne contaminant level G1 as defined by ISA‑S71.04‑1985 Operating Storage Temperature range 0°C to 35°C (32°F to 95°F) –40°C to 65°C (–40°F to 149°F) Rela...
