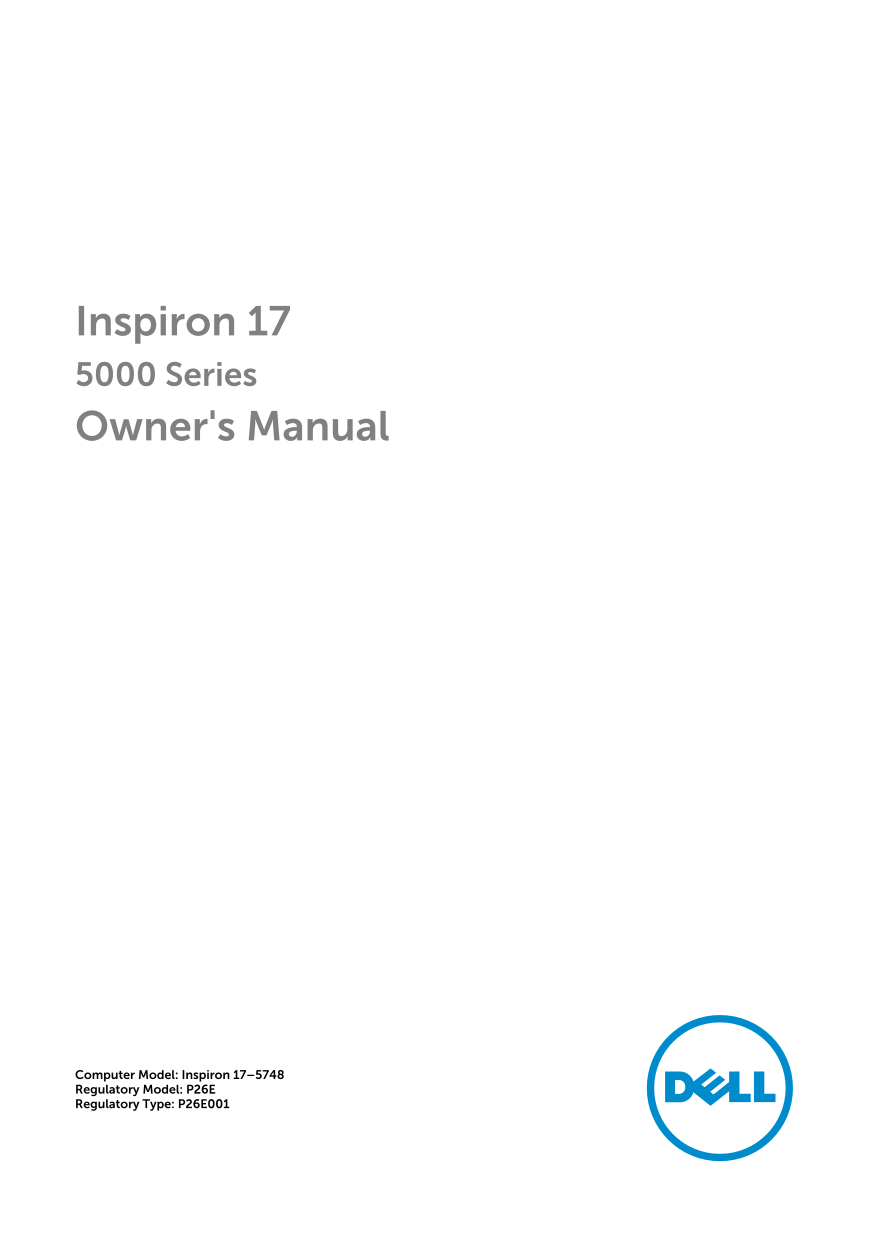

Inspiron 17 5000 Series Owner's Manual
Computer Model: Inspiron 17–5748 Regulatory Model: P26E Regulatory Type: P26E001
Page Summary Contents For Dell Inspiron 17 5748 Owner's Manual
Page 1
Inspiron 17 5000 Series Owner's Manual Computer Model: Inspiron 17–5748 Regulatory Model: P26E Regulatory Type: P26E001
Page 2
Notes, Cautions, and Warnings NOTE: A NOTE indicates important information that helps you make better use of your computer. CAUTION: A CAUTION indicates either potential damage to hardware or loss of ...
Page 3
Contents Before Working Inside Your Computer.................................... Before You Begin .............................................................................................. Safety ...
Page 4
Removing the Hard Drive...........................................................20 Prerequisites.................................................................................................... P...
Page 5
Removing the Palm Rest............................................................ Prerequisites.....................................................................................................38 ...
Page 6
Removing the I/O Board.............................................................53 Prerequisites........................................................................................................
Page 7
Removing the System Board..................................................... Prerequisites.....................................................................................................65 Proc...
Page 8
Removing the Camera.................................................................81 Prerequisites.......................................................................................................
Page 9
Before Working Inside Your Computer CAUTION: To avoid damaging the components and cards, handle them by their edges and avoid touching pins and contacts. Before You Begin 1 Save and close all open fil...
Page 10
WARNING: Disconnect all power sources before opening the computer cover or panels. After you finish working inside the computer, replace all covers, panels, and screws before connecting to the power s...
Page 11
After Working Inside Your Computer CAUTION: Leaving stray or loose screws inside your computer may severely damage your computer. 1 Replace all screws and make sure that no stray screws remain inside ...
Page 12
Removing the Battery WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After workin...
Page 13
Replacing the Battery WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After worki...
Page 14
Removing the Base Cover WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After wor...
Page 15
Procedure 1 Remove the screws that secure the base cover to the computer base. computer base base cover screws (2) 2 Using your fingertips, pry the base cover and lift it off the computer base.
Page 16
Replacing the Base Cover WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After wo...
Page 17
Removing the Optical Drive WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After ...
Page 18
5 Carefully pull the optical-drive bezel and remove it from the optical drive. screw optical-drive bracket optical drive optical-drive bezel
Page 19
Replacing the Optical Drive WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After...
Page 20
Removing the Hard Drive WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After wor...
Page 21
3 Lift the hard-drive assembly off the computer base. screw pull-tab hard-drive assembly 4 Remove the screws that secure the hard-drive bracket to the hard drive.
Page 22
5 Using the pull-tab, lift the hard-drive bracket off the hard drive. screws (2) pull-tab hard-drive bracket hard drive
Page 23
Replacing the Hard Drive WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After wo...
Page 24
Removing the Memory Module WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After ...
Page 25
Procedure 1 Using your fingertips, spread apart the securing clips on each end of the memory-module slot until the memory module pops up. securing clips (2) memory module memory-module slot 2 Slide th...
Page 26
Replacing the Memory Module WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After...
Page 27
Procedure 1 Align the notch on the memory module with the tab on the memory- module slot. 2 Slide the memory module into the slot at an angle, and press the memory module down until it clicks into pla...
Page 28
Removing the Wireless Card WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After ...
Page 29
3 Slide the wireless card out of the wireless-card slot. antenna cables (2) securing tab wireless card
Page 30
Replacing the Wireless Card WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After...
Page 31
Removing the Keyboard WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After worki...
Page 32
3 Carefully turn the keyboard over and place it on the palm rest assembly. plastic scribe keyboard palm-rest assembly 4 Lift the latches and disconnect the keyboard cable and keyboard- backlight cable...
Page 33
5 Lift the keyboard along with the cables, off the palm-rest assembly. keyboard-backlight cable latches (2) keyboard cable keyboard
Page 34
Replacing the Keyboard WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After work...
Page 35
NOTE: The cables on the keyboard are not folded when you receive a new keyboard. 1 Place the keyboard on a flat and clean surface. keyboard cable keyboard-backlight cable keyboard CAUTION: Do not appl...
Page 36
keyboard cable keyboard keyboard-backlight cable fold line
Page 37
3 Using the alignment line, gently fold the keyboard cable. keyboard cable alignment line keyboard-backlight cable keyboard cable keyboard Post-requisites Replace the battery.
Page 38
Removing the Palm Rest WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After work...
Page 39
Procedure 1 Remove the screws that secure the palm rest to the system board. screws (5) palm rest 2 Close the display and turn the computer over.
Page 40
3 Remove the screws that secure the palm rest to the computer base. screws (10) computer base 4 Turn the computer over and open the display as far as possible.
