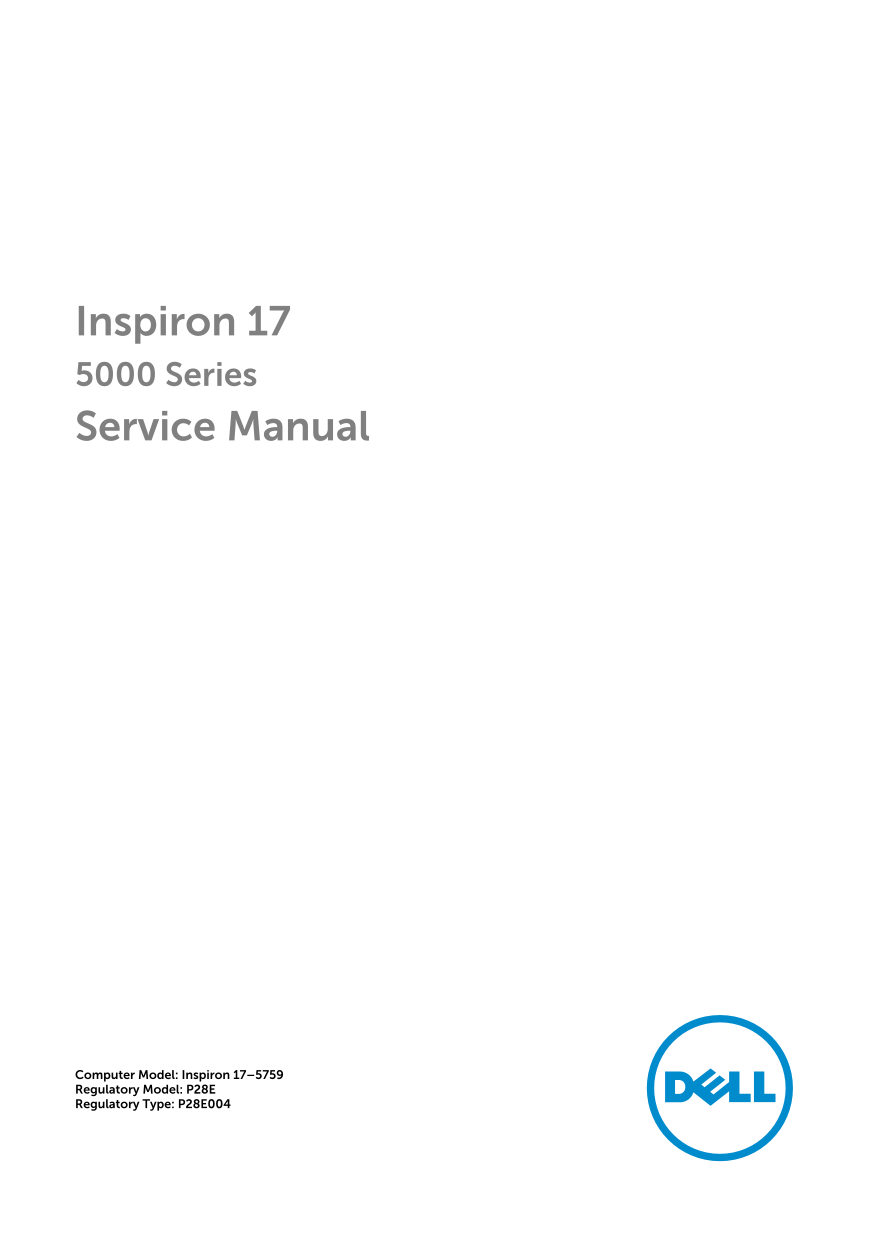

Inspiron 17 5000 Series Service Manual
Computer Model: Inspiron 17–5759 Regulatory Model: P28E Regulatory Type: P28E004
Page Summary Contents For Dell Inspiron 17 5759 Service Manual
Page 1
Inspiron 17 5000 Series Service Manual Computer Model: Inspiron 17–5759 Regulatory Model: P28E Regulatory Type: P28E004
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your computer. CAUTION: A CAUTION indicates either potential damage to hardware or loss of ...
Page 3
Contents Before working inside your computer.................................. Before you begin .............................................................................................10 Safety i...
Page 4
Removing the memory modules............................................ Prerequisites.....................................................................................................23 Procedure.....
Page 5
Removing the optical drive......................................................37 Prerequisites.....................................................................................................37 ...
Page 6
Removing the I/O board.......................................................... Prerequisites.....................................................................................................53 Pr...
Page 7
Removing the power-adapter port........................................ Prerequisites..................................................................................................... Procedure.......
Page 8
Removing the display bezel.................................................... Prerequisites.................................................................................................... Procedu...
Page 9
Removing the display cable...................................................101 Prerequisites...................................................................................................101 Pro...
Page 10
Before working inside your computer CAUTION: To avoid damaging the components and cards, handle them by their edges and avoid touching pins and contacts. NOTE: The images in this document may differ f...
Page 11
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/regul...
Page 12
Plastic scribe
Page 13
After working inside your computer CAUTION: Leaving stray or loose screws inside your computer may severely damage your computer. 1 Replace all screws and ensure that no stray screws remain inside you...
Page 14
Removing the battery WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After workin...
Page 15
Replacing the battery WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After worki...
Page 16
Removing the base cover WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wor...
Page 17
3 Using a plastic scribe, pry up the base cover starting from the inner edge, and lift it off the computer base. computer base screws (2) base cover plastic scribe
Page 18
Replacing the base cover WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wo...
Page 19
Removing the hard drive WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wor...
Page 20
3 Using the pull tab, lift the hard-drive assembly out of the computer base. screws (4) pull tab hard-drive assembly hard-drive cable latch 4 Disconnect the interposer from the hard drive. hard-drive ...
Page 21
5 Remove the screws that secure the hard-drive bracket to the hard drive. 6 Lift the hard-drive bracket off the hard drive. screws (4) hard drive hard-drive bracket
Page 22
Replacing the hard drive WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wo...
Page 23
Removing the memory modules WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After...
Page 24
2 Slide and remove the memory module from the memory-module slot. securing clips (2) memory module
Page 25
Replacing the memory modules WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. Afte...
Page 26
2 Slide the memory module firmly into the slot at an angle and press the memory module down until it clicks into place. NOTE: If you do not hear the click, remove the memory module and reinstall it. m...
Page 27
Removing the wireless card WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After ...
Page 28
4 Slide and remove the wireless card from the system board. antenna cables (2) wireless-card bracket screw wireless-card slot wireless card
Page 29
Replacing the wireless card WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After...
Page 30
Removing the coin-cell battery WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. Af...
Page 31
plastic scribe coin-cell battery coin-cell battery socket
Page 32
Replacing the coin-cell battery WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. A...
Page 33
Removing the keyboard WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After worki...
Page 34
2 Using a plastic scribe, gently release the tabs that secure the keyboard to the palm-rest assembly. plastic scribe keyboard palm-rest assembly 3 Carefully turn the keyboard over and place it on the ...
Page 35
4 Lift the latches and disconnect the keyboard cable and keyboard- backlight cable (optional) from the system board. NOTE: The keyboard-backlight cable is present only if the laptop shipped with a bac...
Page 36
Replacing the keyboard WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After work...
Page 37
Removing the optical drive WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After ...
Page 38
3 Using a plastic scribe, push the optical-drive assembly out of the optical- drive bay. 4 Pull the optical-drive assembly out of the optical-drive bay. optical-drive assembly palm rest plastic scribe...
Page 39
6 Remove the screws that secure the optical-drive bracket to the optical drive. NOTE: Note the orientation of the optical-drive bracket so that you can replace it correctly. optical-drive bezel optica...
Page 40
Replacing the optical drive WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After...
