Dell Inspiron 17 5000 Service Manual

Summary

The Dell Inspiron 5775 all-in-one Service Manual with regulatory model P35E provides detailed component-level repair instructions. It includes a comprehensive screw list, safety procedures, and step-by-step removal and replacement instructions for the optical drive, base cover, memory, storage, wireless modules, and system board. Technicians servicing the Inspiron 17 5000 all-in-one desktop can follow prerequisite and post-installation verification steps for each component.

📄 Preview 📖 Table of Contents Contents PAGE OF 138

Page 1 Text Content

Inspiron 17 5000 Service Manual

Computer Model: Inspiron 5775 Regulatory Model: P35E Regulatory Type: P35E002

Page Summary Contents For Dell Inspiron 17 5000 Service Manual

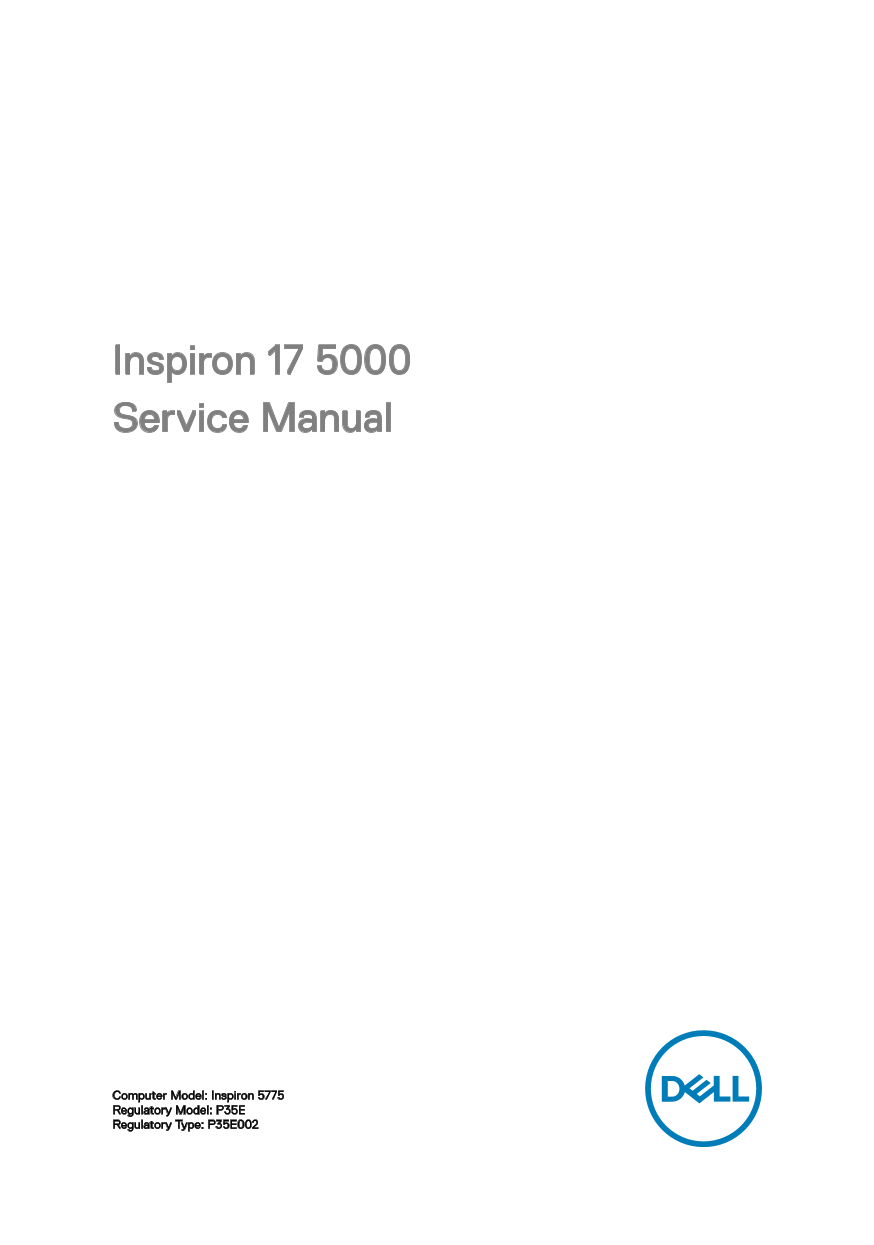

Page 1 Inspiron 17 5000 Service Manual Computer Model: Inspiron 5775 Regulatory Model: P35E Regulatory Type: P35E002
Page 2 Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3 Contents Before working inside your computer........................... Before you begin ..................................................................................... Safety instructions.........
Page 4 Replacing the battery...................................................28 Procedure ...............................................................................................28 Post-requisites.....
Page 5 Replacing the coin-cell battery.................................... Procedure................................................................................................42 Post-requisites............
Page 6 Replacing the touchpad............................................... Procedure .............................................................................................. Post-requisites.............
Page 7 Replacing the display assembly....................................75 Procedure ...............................................................................................75 Post-requisites...........
Page 8 Replacing the power button with fingerprint reader..... Procedure ............................................................................................... Post-requisites..........................
Page 9 Replacing the display panel........................................ Procedure .............................................................................................105 Post-requisites.............
Page 10 Downloading drivers....................................................116 Downloading the audio driver................................................................. Downloading the graphics driver...
Page 11 Running the e PSA diagnostics......................................................... System diagnostic lights........................................................................ Flea power relea...
Page 12 Before working inside your computer NOTE: The images in this document may differ from your computer depending on the configuration you ordered. Before you begin 1 Save and close all open files and exi...
Page 13 CAUTION: To avoid damaging the components and cards, handle them by their edges, and avoid touching pins and contacts. CAUTION: You should only perform troubleshooting and repairs as authorized or dir...
Page 14 Screw list Table 1. Screw list Component Secured to Screw Quantity Screw image Base cover Palm rest and M2x2 keyboard assembly Base cover Palm rest and M2x4 keyboard assembly Base cover Palm rest and ...
Page 15 Component Secured to Screw Quantity Screw image Hard-drive Hard drive M3x3 bracket Heat sink System board M2x3 NOTE: Applicable only for computers shipped with discrete configuration. Hinges Palm rest...
Page 16 Component Secured to Screw Quantity Screw image Power button Palm rest and M2x2 with fingerprint keyboard reader assembly (optional) Solid-state drive Palm rest and M2x2.2 keyboard assembly System boa...
Page 17 After working inside your computer CAUTION: Leaving stray or loose screws inside your computer may severely damage your computer. 1 Replace all screws and ensure that no stray screws remain inside you...
Page 18 Removing the optical drive WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After ...
Page 19 4 Remove the two screws (M2x3) that secure the optical-drive bracket to the optical drive. 5 Remove the optical-drive bracket from optical drive. 6 Pull the optical-drive bezel carefully to remove it ...
Page 20 Replacing the optical drive WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After...
Page 21 Removing the base cover WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wor...
Page 22 4 Remove the seven screws (M2.5x7) that secure the base cover to the palm rest and keyboard assembly. 5 Pry the base cover starting from the top-left corner of the computer base.
Page 23 6 Lift the base cover off the palm rest and keyboard assembly. NOTE: The following steps are applicable only if you want to further remove any other component from your computer.
Page 24 7 Disconnect the battery cable from the system board. 8 Press and hold the power button for 5 seconds to ground the computer and drain the flea power.
Page 25 Replacing the base cover WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wo...
Page 26 Removing the battery WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After workin...
Page 27 2 Lift the battery off the palm rest and keyboard assembly.
Page 28 Replacing the battery WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After worki...
Page 29 Removing the memory modules WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After...
Page 30 Procedure 1 Locate the memory modules on your computer. 2 Use your fingertips to carefully spread apart the securing-clips on each end of the memory-module slot until the memory module pops up. 3 Remo...
Page 31 Replacing the memory modules WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. Afte...
Page 32 Removing the wireless card WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After ...
Page 33 Procedure 1 Locate the wireless card on your computer. 2 Remove the screw (M2x3) that secures the wireless-card bracket to the system board. 3 Slide and remove the wireless-card bracket from the wirel...
Page 34 5 Slide and remove the wireless card from the wireless-card slot.
Page 35 Replacing the wireless card WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After...
Page 36 4 Replace the screw (M2x3) that secures the wireless-card bracket to the wireless card and the palm rest and keyboard assembly. Post-requisites 1 Replace the base cover. 2 Replace the optical drive.
Page 37 Removing the optical-drive connector board WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your ...
Page 38 3 Lift the optical-drive connector board along with the cable off the palm rest and keyboard assembly.
Page 39 Replacing the optical-drive connector board WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your...
Page 40 Removing the coin-cell battery WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. Af...
