Dell Inspiron 145000 Series Service Manual
Summary
The Dell Inspiron 14-5458 Service Manual with regulatory model P64G provides component-level repair instructions for this 14-inch laptop. It covers safety procedures, recommended tools, and detailed removal and replacement steps for the battery, optical drive, hard drive, memory, wireless card, palm rest, keyboard, and system board. Technicians can follow the prerequisite-based workflow to ensure correct disassembly sequence when servicing the Inspiron 14 5000 Series model 5458.
Page 1 Text Content

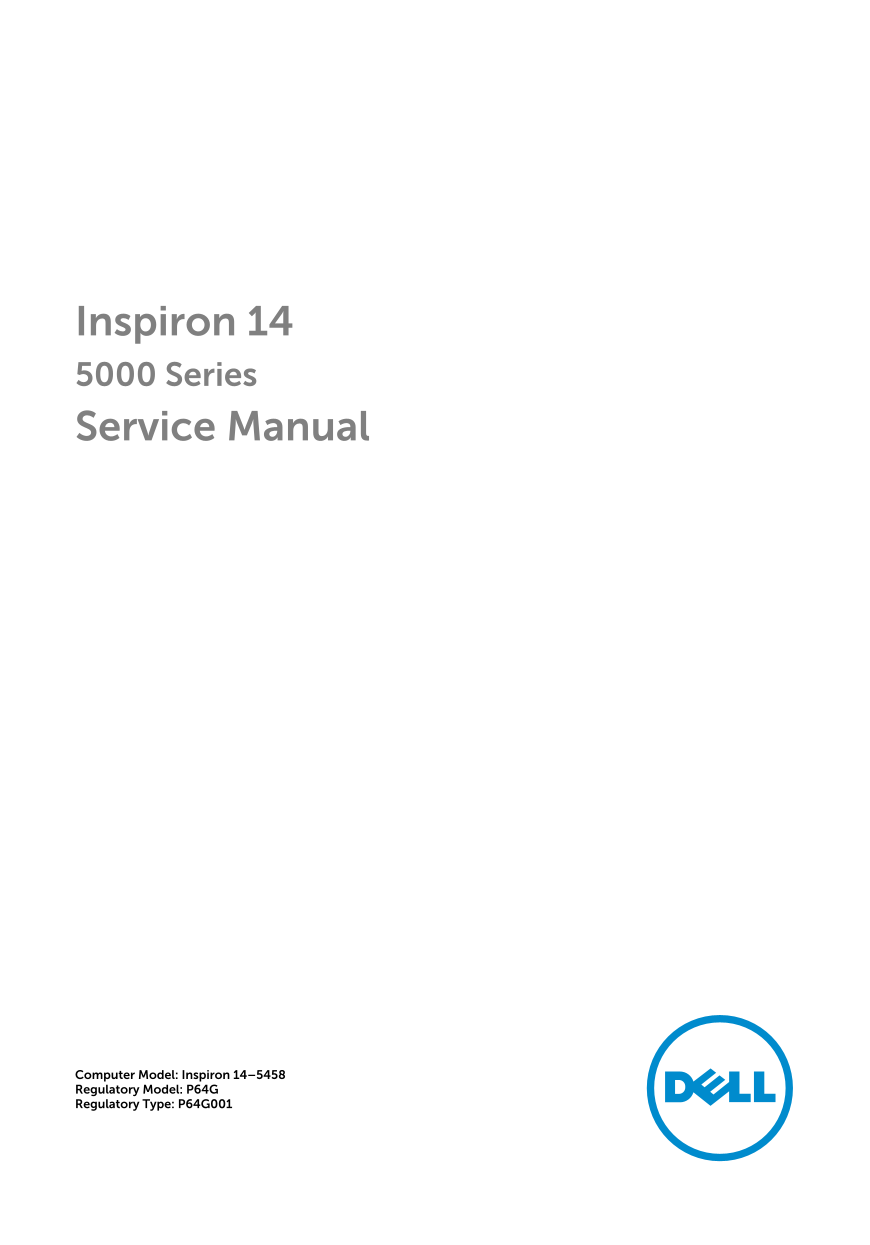

Inspiron 14 5000 Series Service Manual
Computer Model: Inspiron 14–5458 Regulatory Model: P64G Regulatory Type: P64G001
Page Summary Contents For Dell Inspiron 145000 Series Service Manual
Page 1
Inspiron 14 5000 Series Service Manual Computer Model: Inspiron 14–5458 Regulatory Model: P64G Regulatory Type: P64G001
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your computer. CAUTION: A CAUTION indicates either potential damage to hardware or loss of ...
Page 3
Contents Before working inside your computer.................................. Before you begin .............................................................................................10 Safety i...
Page 4
Removing the base cover........................................................ Prerequisites.....................................................................................................24 Pro...
Page 5
Removing the wireless card.................................................... Prerequisites.....................................................................................................38 Proc...
Page 6
Removing the I/O board.......................................................... Prerequisites.....................................................................................................53 Pr...
Page 7
Removing the speakers............................................................69 Prerequisites.................................................................................................... Pr...
Page 8
Removing the camera...............................................................83 Prerequisites.....................................................................................................8...
Page 9
Removing the display back-cover and antenna assembly......................................................................................96 Prerequisites.................................................
Page 10
Before working inside your computer CAUTION: To avoid damaging the components and cards, handle them by their edges and avoid touching pins and contacts. NOTE: The images in this document may differ f...
Page 11
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For more safety best practices, see the Regulatory Compliance home page at dell.com/ regulato...
Page 12
Philips screwdriver Plastic scribe
Page 13
After working inside your computer CAUTION: Leaving stray or loose screws inside your computer may severely damage your computer. 1 Replace all screws and ensure that no stray screws remain inside you...
Page 14
Removing the battery WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After workin...
Page 15
Replacing the battery WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After worki...
Page 16
Removing the optical drive WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After ...
Page 17
2 Using a plastic scribe, slide the optical-drive assembly out of the optical- drive bay. screw plastic scribe computer base optical-drive assembly 3 Carefully pull the optical-drive bezel and remove ...
Page 18
4 Remove the screws that secure the optical-drive bracket to the optical drive and remove the optical-drive bracket. optical-drive bezel optical drive optical-drive bracket screws (2)
Page 19
Replacing the optical drive WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After...
Page 20
Removing the keyboard WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After worki...
Page 21
2 Using a plastic scribe, gently release the tabs that secure the keyboard to the palm-rest assembly. plastic scribe 2 keyboard palm-rest assembly tabs (5) 3 Carefully turn the keyboard over and place...
Page 22
4 Lift the latches and disconnect the keyboard cable and the keyboard- backlight cable from the system board. NOTE: The keyboard-backlight cable is present only if the laptop is shipped with a backlit...
Page 23
Replacing the keyboard WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After work...
Page 24
Removing the base cover WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wor...
Page 25
2 Using your fingertips, gently pry the base cover off the computer base. computer base screws (2) base cover
Page 26
Replacing the base cover WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wo...
Page 27
Removing the coin-cell battery WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. Af...
Page 28
plastic scribe coin-cell battery battery socket
Page 29
Replacing the coin-cell battery WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. A...
Page 30
Removing the hard drive WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wor...
Page 31
3 Lift the hard-drive assembly off the computer base. screws (4) hard-drive assembly hard-drive cable latch 4 Disconnect the hard-drive interposer from the hard-drive assembly. hard-drive assembly har...
Page 32
5 Remove the screws that secure the hard-drive bracket to the hard drive and lift the hard drive off the hard-drive bracket. hard drive hard-drive bracket screws (4)
Page 33
Replacing the hard drive WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wo...
Page 34
Removing the memory modules WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After...
Page 35
2 Slide and remove the memory module from the memory-module slot. securing clips (2) memory module
Page 36
Replacing the memory modules WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. Afte...
Page 37
2 Slide the memory module firmly into the slot at an angle and gently press the memory module down until it clicks into place. NOTE: If you do not hear the click, remove the memory module and reinstal...
Page 38
Removing the wireless card WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After ...
Page 39
4 Slide and remove the wireless card out of the wireless-card slot. wireless card wireless-card slot screw antenna cables (2) wireless-card bracket
Page 40
Replacing the wireless card WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After...
