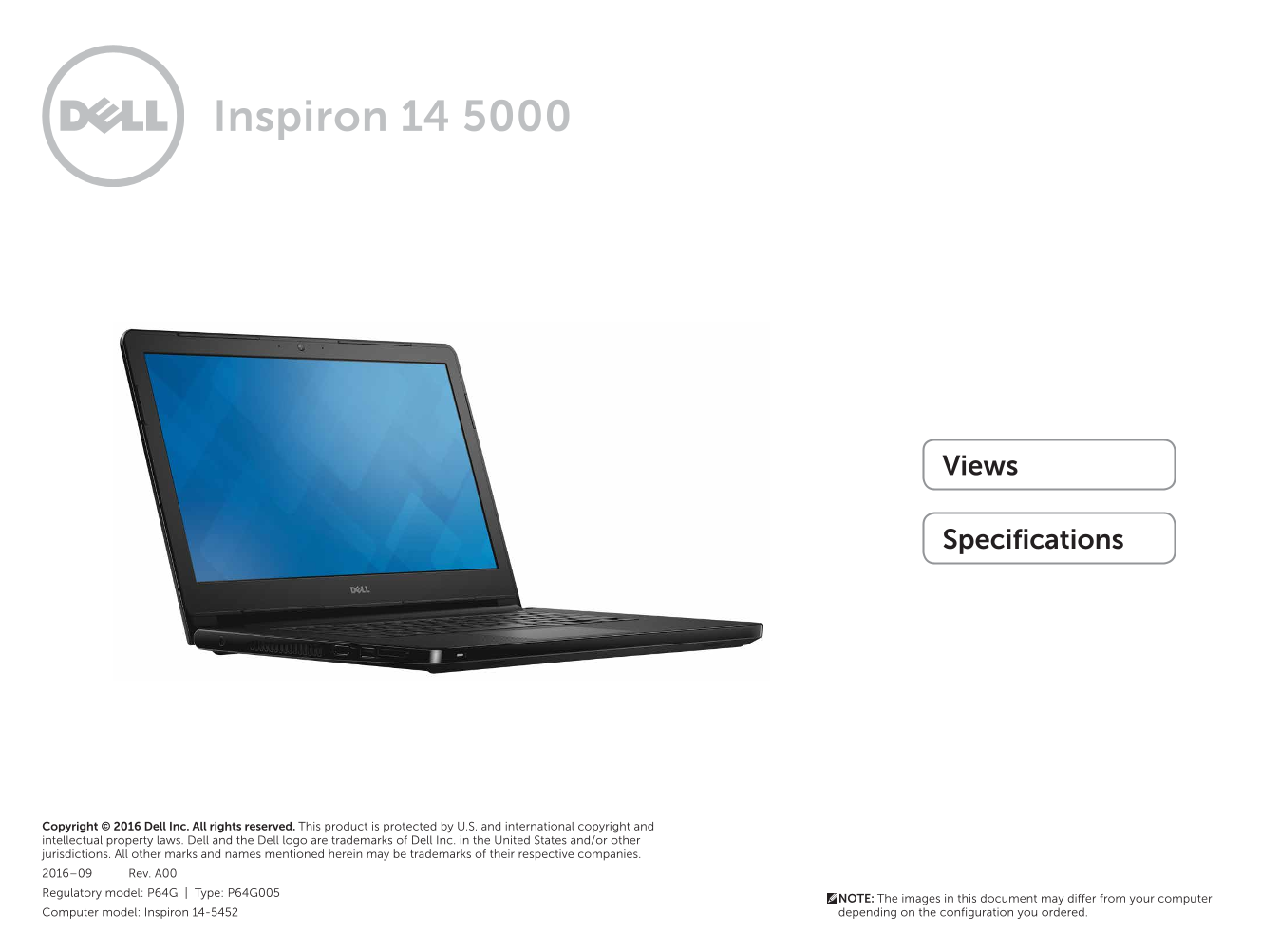

Page 1
Inspiron 14 5000 Views Specifications Copyright © 2016 Dell Inc. All rights reserved. This product is protected by U.S. and international copyright and intellectual property laws. Dell and the Dell lo...
Page 2
Views Specifications Power and battery-status light/hard-drive Battery-status light activity light Indicates the battery status. Indicates the battery-charge status or the hard-drive activity. Solid w...
Page 3
Views Specifications Power-adapter port USB 3.0 port Connect a power adapter to provide power to your Connect peripherals such as storage devices and computer and charge the battery. printers. Provide...
Page 4
Views Specifications Headset port Security-cable slot Connect a headphone, a microphone, or a headset Connect a security cable to prevent unauthorized (headphone and microphone combo). movement of you...
Page 5
Views Specifications Left-click area Power button Press to left-click. Press to turn on the computer if it is turned off, in sleep state, or in hibernate state. Touch pad Press to put the computer in ...
Page 6
Views Specifications Display Camera Microphone Enables you to video chat, capture photos, and record Provides digital sound input for audio recording, voice videos. calls, and so on. Camera-status lig...
Page 7
Specifications Views Dimensions and weight Height 23.35 mm (0.92 in) Width 345 mm (13.58 in) Depth 243 mm (9.56 in) Weight (minimum) 1.92 kg (4.23 lb) NOTE: The weight of your laptop varies depending ...
Page 8
Specifications Views System information Computer model Inspiron 14-5452 Processor • Intel Celeron Dual Core • Intel Pentium Quad Core Chipset Integrated in processor Dimensions and System Ports and Me...
Page 9
Specifications Views Memory Slots One SODIMM slot Type DDR3L Speed 1600 MHz Configurations supported 2 GB, 4 GB, and 8 GB Dimensions and System Ports and Memory Communications Video Audio Storage weig...
Page 10
Specifications Views Ports and connectors External: USB • Two USB 2.0 ports • One USB 3.0 port Audio/video • One HDMI port • One headset port (headphone and microphone combo) Internal: M.2 One M.2 car...
Page 11
Specifications Views Communications Wireless • Wi-Fi 802.11ac • Wi-Fi 802.11b/g/n • Bluetooth 4.0 Dimensions and System Ports and Memory Communications Video Audio Storage weight information connector...
Page 12
Specifications Views Video Controller Intel HD Graphics Memory Shared system memory Dimensions and System Ports and Memory Communications Video Audio Storage weight information connectors Media-card C...
Page 13
Specifications Views Audio Controller Realtek ALC3234 with Waves Maxx Audio Speakers Two Speaker output: Average 2 W Peak 2.2 W Microphone Single microphone Volume controls Media-control shortcut keys...
Page 14
Specifications Views Storage Interface SATA 6 Gbps Hard drive One 2.5-inch drive (supports Intel Smart Response Technology) Dimensions and System Ports and Memory Communications Video Audio Storage we...
Page 15
Specifications Views Media-card reader Type One SD card slot Card supported SD card Dimensions and System Ports and Memory Communications Video Audio Storage weight information connectors Media-card C...
Page 16
Specifications Views Display Type 14-inch HD WLED Resolution (maximum) 1366 x 768 Refresh rate 60 Hz Operating angle 0 degree (closed) to 135 degrees Pixel pitch 0.2265 mm Controls Brightness can be c...
Page 17
Specifications Views Keyboard Type Chiclet keyboard Shortcut keys Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary funct...
Page 18
Keyboard Shortcut keys Mute audio Turn off/on wireless Decrease volume Toggle Fn-key lock Increase volume Sleep Toggle between power and Play previous track/chapter battery-status light/hard-drive act...
Page 19
Specifications Views Camera Resolution: Still image 0.92 megapixel Video 1280 x 720 HD at 30 fps Diagonal viewing angle 74 degrees Dimensions and System Ports and Memory Communications Video Audio Sto...
Page 20
Specifications Views Touch pad Resolution: Horizontal Vertical Dimensions: Width 105 mm (4.13 in) Height 65 mm (2.55 in) Dimensions and System Ports and Memory Communications Video Audio Storage weigh...
Page 21
Specifications Views Battery Type 4-cell “smart” lithium-ion (40 WHr) Dimensions: Width 270 mm (10.63 in) Depth 37.50 mm (1.47 in) Height 20 mm (0.78 in) Weight (maximum) 0.25 kg (0.55 lb) Voltage 14....
Page 22
Specifications Views Power adapter Type 45 W Input voltage 100 VAC–240 VAC Input frequency 50 Hz–60 Hz Input current (maximum) 1.30 A Output current (maximum) 2.31 A Rated output voltage 19.50 VDC Tem...
Page 23
Specifications Views Computer environment Airborne contaminant level G1 as defined by ISA-S71.04-1985 Operating Storage Temperature range 0°C to 35°C (32°F to 95°F) –40°C to 65°C (–40°F to 149°F) Rela...
