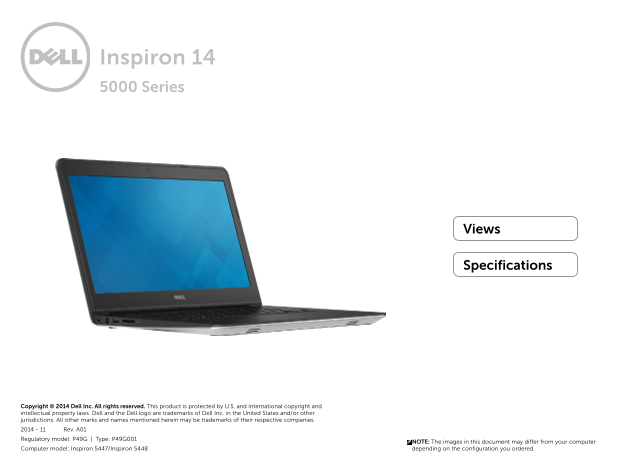

Page 1
Inspiron 14 5000 Series Views Specifications Copyright © 2014 Dell Inc. All rights reserved. This product is protected by U.S. and international copyright and intellectual property laws. Dell and the ...
Page 2
Views Specifications Power and battery‑status light Hard‑drive activity light Indicates the power state and battery state of the Turns on when the computer reads from or writes to the computer. hard d...
Page 3
Views Specifications Security‑cable slot USB 2.0 port Connect a security cable to prevent unauthorized Connect peripherals such as storage devices, printers, movement of your computer. and so on. Prov...
Page 4
Views Specifications Headset port HDMI port Connect a headphone, a microphone, or a headphone Connect a TV or another HDMI‑in enabled device. and microphone combo (headset). Provides video and audio o...
Page 5
Views Specifications Power button Right‑click area Press to turn on the computer if it is turned off or in Press to right click. sleep state. Touchpad Press to put the computer in sleep state if it is...
Page 6
Views Specifications Display Left microphone Camera Provides high‑quality digital sound input for audio Allows you to video chat, capture photos, and recording, voice calls, and so on. record videos. ...
Page 7
Specifications Views Dimensions and Weight Height: Touch 22 mm (0.87 in) Non‑touch 21.60 mm (0.85 in) Width 342 mm (13.46 in) Depth 246 mm (9.69 in) Weight: Touch 2.05 kg (4.52 lb) Non‑touch 1.93 kg (...
Page 8
Specifications Views System Information Computer model Inspiron 5447 Inspiron 5448 Processor 4th generation Intel Core i3 ULV 5th generation Intel Core i3 ULV 4th generation Intel Core i5 ULV 5th gene...
Page 9
Specifications Views Memory Slots Two SODIMM slots Type Dual‑channel DDR3L Speed 1600 MHz Configurations supported 4 GB, 6 GB, 8 GB, 12 GB, and 16 GB Dimensions and System Ports and Memory Communicati...
Page 10
Specifications Views Ports and Connectors External: Network One RJ45 port USB One USB 2.0 port Two USB 3.0 ports Audio/Video One HDMI port One headphone and microphone combo (headset) port Internal: M...
Page 11
Specifications Views Communications Ethernet 10/100 Mbps Ethernet controller integrated on system board Wireless Wi‑Fi 802.11 b/g/n/ac Wi Di (Wireless Display) Bluetooth 4.0 Dimensions and System Port...
Page 12
Specifications Views Video Controller: Integrated Inspiron 5447 — Intel HD Graphics 4400 Inspiron 5448 — Intel HD Graphics 5500 Discrete AMD Radeon R7 M265 AMD Radeon R7 M270 (Inspiron 5448 only) Memo...
Page 13
Specifications Views Audio Controller Realtek ALC3234CG with Waves Maxx Audio Speakers Two Output: Average 2 watt Peak 2.5 watt Microphone Digital array‑microphones Volume controls Media‑control short...
Page 14
Specifications Views Storage Interface SATA 6 Gbps Hard drive One 2.5‑inch drive (supports Intel Smart Response Technology) Dimensions and System Ports and Memory Communications Video Audio Storage We...
Page 15
Specifications Views Media‑card reader Type One 5‑in‑1 slot Cards supported SD card SD High‑Capacity (SDHC) card SD Extended Capacity (SDXC) card with Ultra High Speed (UHS) Memory Stick (MS) Memory S...
Page 16
Specifications Views Display Type 14‑inch HD 14‑inch HD touchscreen Resolution (maximum) 1366 x 768 Pixel pitch 0.2265 mm Dimensions: Height 173.95 mm (6.85 in) Width 309.40 mm (12.18 in) Diagonal 355...
Page 17
Specifications Views Keyboard Type Standard keyboard Backlit keyboard — optional Shortcut keys Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters ...
Page 18
Specifications Views Camera Resolution: Still image 0.92 megapixel Video 1280 x 720 (HD) at 30 fps Diagonal viewing angle 74 degrees Dimensions and System Ports and Memory Communications Video Audio S...
Page 19
Specifications Views Touchpad Resolution: Horizontal 1260 dpi Vertical 1207 dpi Dimensions: Width 105 mm (4.13 in) Height 80 mm (3.15 in) Dimensions and System Ports and Memory Communications Video Au...
Page 20
Specifications Views Battery Type 3 cell “smart” lithium ion (43.50 WHr) 4 cell “smart” lithium ion (58 WHr) 3 cell 4 cell Dimensions: Width 208.25 mm (8.20 in) Depth 124.70 mm (4.91 in) Height 7.80 m...
Page 21
Specifications Views Power Adapter Type 65 W Input voltage 100 VAC–240 VAC Input frequency 50 Hz–60 Hz Input current (maximum) 1.50 A Output current (continuous) 3.34 A Rated output voltage 19.50 VDC ...
Page 22
Specifications Views Computer Environment Airborne contaminant level G1 as defined by ISA‑S71.04‑1985 Operating Storage Temperature range 0°C to 35°C (32°F to 95°F) –40°C to 65°C (–40°F to 149°F) Rela...
