Page 1

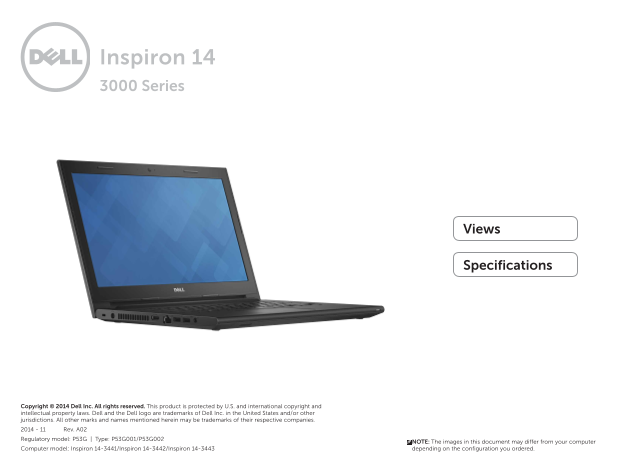

Inspiron 14 3000 Series Views Specifications Copyright © 2014 Dell Inc. All rights reserved. This product is protected by U.S. and international copyright and intellectual property laws. Dell and the ...
Page 2
Views Specifications Power and battery‑status light Indicates the power state and battery state of the computer. White Battery is getting charged. Amber Battery is low or critical. Display Off Compute...
Page 3
Views Specifications Security‑cable slot USB 2.0 port Connect a security cable to prevent unauthorized Connect peripherals such as storage devices, printers, movement of your computer. and so on. Prov...
Page 4
Views Specifications Media‑card reader Optical drive Reads from and writes to media cards. Reads from and writes to CDs and DVDs. USB 2.0 port Connect peripherals such as storage devices, printers, an...
Page 5
Views Specifications Power button Right‑click area Press to turn on the computer if it is turned off or in Press to right click. sleep state. Touchpad Press to put the computer in sleep state if it is...
Page 6
Views Specifications Display Microphone Camera‑status light Provides high‑quality digital sound input for audio Turns on when the camera is in use. recording, voice calls, and so on. Camera Allows you...
Page 7
Specifications Views Dimensions and Weight Height: Touch 26.60 mm (1.04 in) Non‑touch 25.40 mm (1 in) Width 346 mm (13.62 in) Depth 246 mm (9.68 in) Weight (maximum): Touch 2.11 kg (4.65 lb) Non‑touch...
Page 8
Specifications Views System Information Computer model Inspiron 14‑3441 Inspiron 14‑3442 Inspiron 14‑3443 Processor AMD E1‑6010 4th Generation Intel Core i3/i5/17 5th Generation Intel Core i3/i5/i7 AM...
Page 9
Specifications Views Memory Slot One SODIMM slot Type DDR3L Speed 1600 MHz Configurations supported 2 GB, 4 GB, and 8 GB Dimensions and System Ports and Memory Communications Video Audio Storage Weigh...
Page 10
Specifications Views Ports and Connectors External: Network One RJ45 port USB One USB 3.0 port Two USB 2.0 ports Audio/video One HDMI port One headphone and microphone combo (headset) port Internal: M...
Page 11
Specifications Views Communications Ethernet 10/100 Mbps Ethernet controller integrated on system board Wireless Wi‑Fi 802.11 b/g/n Bluetooth 4.0 Dimensions and System Ports and Memory Communications ...
Page 12
Specifications Views Video Controller: Inspiron 14‑3441 Inspiron 14‑3442 Inspiron 14‑3443 Integrated AMD Radeon R4 Graphics for Intel HD Graphics 4400 for Intel HD Graphics 5500 AMD A6 Quad Core Intel...
Page 13
Specifications Views Audio Controller Inspiron 14‑3441 — Realtek ALC3223 Inspiron 14‑3442/Inspiron 14‑3443 — Realtek ALC3234 Speakers Two Output: Average 2 watt Peak 2.5 watt Microphone Digital microp...
Page 14
Specifications Views Storage Interface SATA 6 Gbps Hard drive One 2.5‑inch drive Optical drive One 9.5 mm DVD+/‑RW drive Dimensions and System Ports and Memory Communications Video Audio Storage Weigh...
Page 15
Specifications Views Media‑card reader Type One 3‑in‑1 slot Cards supported SD card SD High‑Capacity (SDHC) card SD Extended Capacity (SDXC) card with Ultra High Speed (UHS) Dimensions and System Port...
Page 16
Specifications Views Display Type 14‑inch HD Resolution (maximum) 1366 x 768 Pixel pitch 0.2265 mm Dimensions: Height 205.6 mm (8.09 in) Width 320.9 mm (12.63 in) Diagonal 355.6 mm (14 in) Refresh rat...
Page 17
Specifications Views Keyboard Shortcut keys Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alte...
Page 18
Specifications Views Camera Resolution: Still image 0.92 megapixel Video 1280 x 720 HD @ 30 fps Diagonal viewing angle 74 degrees Dimensions and System Ports and Memory Communications Video Audio Stor...
Page 19
Specifications Views Touchpad Resolution: Horizontal 1207 dpi Vertical 1702 dpi Dimensions: Width 102.4 mm (4.03 in) Height 57.4 mm (2.25 in) Dimensions and System Ports and Memory Communications Vide...
Page 20
Specifications Views Battery Type 4‑cell “smart” lithium ion (40 WHr) Dimensions: Width 272.40 mm (10.72 in) Depth 46.30 mm (1.82 in) Height 20.00 mm (0.79 in) Weight (maximum) 0.26 kg (0.57 lb) Volta...
Page 21
Specifications Views Power Adapter Type 65 W Input voltage 100 VAC–240 VAC Input frequency 50 Hz–60 Hz Input current (maximum) 1.50 A/1.60 A/1.70 A/2.50 A Output current (continuous) 3.34 A/4.62 A Rat...
Page 22
Specifications Views Computer Environment Airborne contaminant level G1 as defined by ISA‑S71.04‑1985 Operating Storage Temperature range 0°C to 35°C (32°F to 95°F) –40°C to 65°C (–40°F to 149°F) Rela...
