Page 1

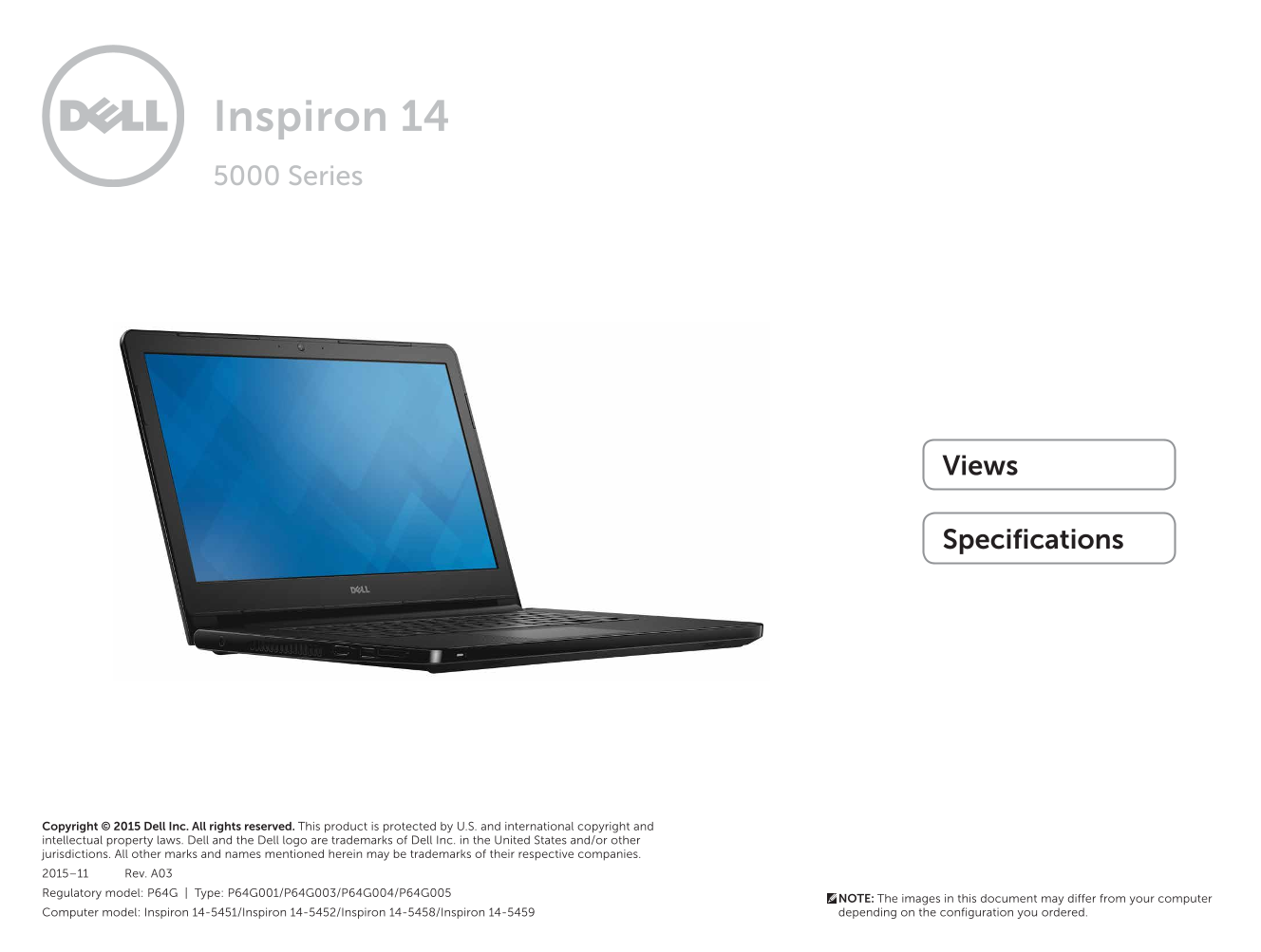

Inspiron 14 5000 Series Views Specifications Copyright © 2015 Dell Inc. All rights reserved. This product is protected by U.S. and international copyright and intellectual property laws. Dell and the ...
Page 2
Views Specifications Power and battery-status light/hard-drive activity light Indicates the power and battery-charge status. Press Fn+H to toggle this light between hard-drive activity light and batte...
Page 3
Views Specifications Power-adapter port HDMI port Connect a power adapter to provide power to your Connect a TV or another HDMI-in enabled device. computer and charge the battery. Provides video and a...
Page 4
Views Specifications Headset port Optical drive Connect a headphone, a microphone, or a headset Reads from and writes to CDs and DVDs. (headphone and microphone combo). Security-cable slot USB 2.0 por...
Page 5
Views Specifications Left-click area Power button Press to left-click. Press to turn on the computer if it is turned off, in sleep state or in hibernate state. Touch pad Press to put the computer in s...
Page 6
Views Specifications Display Left microphone (Inspiron 14-5458 and Camera-status light Inspiron 14-5459 only) Turns on when the camera is in use. Provides digital sound input for audio recording, voic...
Page 7
Specifications Views Dimensions and weight Height: Touch (Inspiron 14-5458 and Inspiron 23.60 mm (0.93 in) 14-5459 only) Non-touch 23.35 mm (0.92 in) Width 345 mm (13.58 in) Depth 243 mm (9.56 in) Wei...
Page 8
Specifications Views System information Computer model Inspiron 14-5458 and Inspiron 14-5451 and Inspiron 14-5459 Inspiron 14-5452 Processor • 4th Generation Intel Core i3/i5 • Intel Celeron Dual Core...
Page 9
Specifications Views Memory Inspiron 14-5458 and Inspiron 14-5451 Inspiron 14-5452 Inspiron 14-5459 Slots Two SODIMM slots One SODIMM slot One SODIMM slot Type DDR3L DDR3L DDR3L Speed 1600 MHz 1300 MH...
Page 10
Specifications Views Ports and connectors External: Network One RJ45 port (Inspiron 14-5458 and Inspiron 14-5459 only) USB • Two USB 2.0 ports • One USB 3.0 port Audio/video • One HDMI port • One head...
Page 11
Specifications Views Communications Ethernet 10/100 Mbps Ethernet controller integrated on system board Wireless • Wi-Fi 802.11ac • Wi-Fi 802.11b/g/n • Bluetooth 4.0 Dimensions and System Ports and Me...
Page 12
Specifications Views Video Inspiron 14-5458 and Inspiron 14-5451 and Inspiron 14-5459 Inspiron 14-5452 Controller: Integrated • Intel HD Graphics Intel HD Graphics • Intel HD Graphics 520 • Intel HD G...
Page 13
Specifications Views Audio Controller Realtek ALC3234 with Waves Maxx Audio Speakers Two Speaker output: Average 2 W Peak 2.2 W Microphone • Single microphone • Digital array-microphones (Inspiron 14-...
Page 14
Specifications Views Storage Interface • SATA 3 Gbps (Inspiron 14-5451) • SATA 6 Gbps (Inspiron 14-5452, Inspiron 14-5458, and Inspiron 14-5459) Hard drive • One 2.5-inch drive (supports Intel Smart R...
Page 15
Specifications Views Media-card reader Type One SD card slot Card supported SD card Dimensions and System Ports and Memory Communications Video Audio Storage weight information connectors Media-card C...
Page 16
Specifications Views Display Type • 14-inch HD WLED • 14-inch HD WLED touch screen Resolution (maximum) 1366 x 768 Refresh rate 60 Hz Operating angle 0 degree (closed) to 135 degrees Pixel pitch 0.226...
Page 17
Specifications Views Keyboard Type Chiclet keyboard Shortcut keys Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary funct...
Page 18
Keyboard Shortcut keys Mute audio Turn off/on wireless Decrease volume Toggle Fn-key lock Increase volume Sleep Toggle between power and Play previous track/chapter battery-status light/hard-drive act...
Page 19
Specifications Views Camera Resolution: Still image 0.92 megapixel Video 1280 x 720 HD at 30 fps Diagonal viewing angle 74 degrees Dimensions and System Ports and Memory Communications Video Audio Sto...
Page 20
Specifications Views Touch pad Resolution: Horizontal 1223 dpi Vertical 1573 dpi Dimensions: Width 105 mm (4.13 in) Height 65 mm (2.55 in) Dimensions and System Ports and Memory Communications Video A...
Page 21
Specifications Views Battery Type • 4 cell “smart” lithium ion (40 WHr) • 4 cell “smart” lithium ion (47 WHr) Dimensions: Width 270 mm (10.63 in) Depth 37.50 mm (1.47 in) Height 20 mm (0.78 in) Weight...
Page 22
Specifications Views Power adapter Type • 45 W Input voltage 100 VAC–240 VAC Input frequency 50 Hz–60 Hz Input current (maximum): 45 W 1.30 A 65 W 1.70 A Output current (maximum): 45 W 2.31 A 65 W 3.3...
Page 23
Specifications Views Computer environment Airborne contaminant level G1 as defined by ISA-S71.04-1985 Operating Storage Temperature range 0°C to 35°C (32°F to 95°F) –40°C to 65°C (–40°F to 149°F) Rela...
