Dell Inspiron 14 3458 Specifications
Summary
Views and Specifications guide for Dell Inspiron 14 3000 Series (14-3451/3458). Provides visual diagrams of front, left, right, and base views with all ports described: power, network, HDMI, USB 3.0, media-card reader, headset, and security-cable slot. Covers power/battery indicators and system specs. Targets end users needing setup guidance for entry-level Dell laptops.
Page 1 Text Content
Inspiron 14 3000 Series
Views
Specifications
Copyright © 2014 Dell Inc. All rights reserved. This product is protected by U.S. and international copyright and intellectual property laws. Dell™ and the Dell logo are trademarks of Dell Inc. in the United States and/or other jurisdictions. All other marks and names mentioned herein may be trademarks of their respective companies. 2014 ‑ 12 Rev. A00 Regulatory model: P60G | Type: P60G001/P60G002
NOTE: The images in this document may differ from your computer
Computer model: Inspiron 14‑3451/Inspiron 14‑3458 depending on the configuration you ordered.
Page Summary Contents For Dell Inspiron 14 3458 Specifications

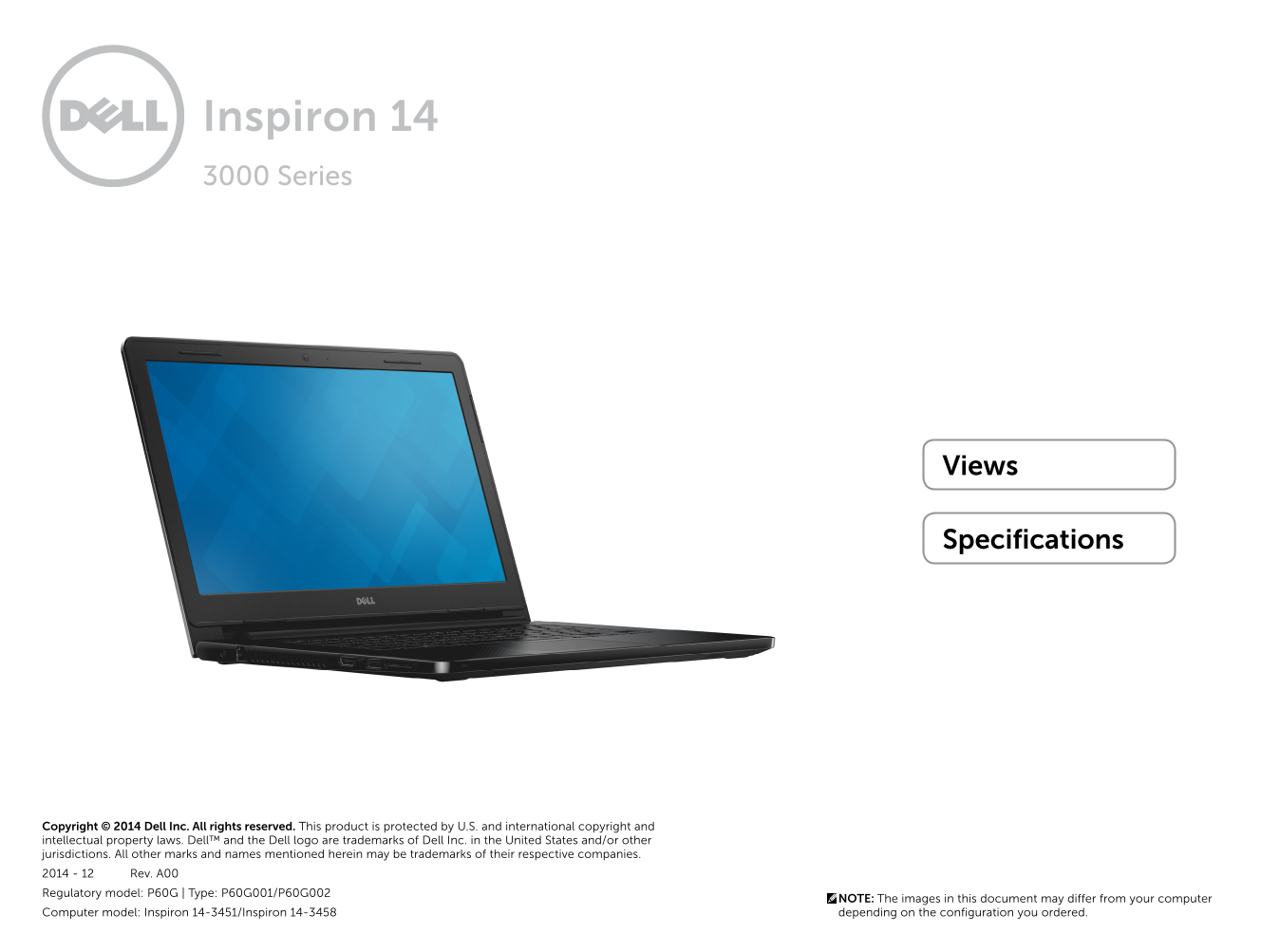

Page 1
Inspiron 14 3000 Series Views Specifications Copyright © 2014 Dell Inc. All rights reserved. This product is protected by U.S. and international copyright and intellectual property laws. Dell™ and the...
Page 2
Views Specifications Power and battery-status light/hard-drive activity light Indicates the power and battery‑charge status. Press Fn+H to toggle this light between hard‑drive activity light and batte...
Page 3
Views Specifications Power-adapter port USB 3.0 port Connect a power adapter to provide power to your Connect peripherals such as storage devices, printers, computer and charge the battery. and so on....
Page 4
Views Specifications Headset port Security-cable slot Connect a headphone, a microphone, or a headphone Connect a security cable to prevent unauthorized and microphone combo (headset). movement of you...
Page 5
Views Specifications Left-click area Power button Press to left‑click. Press to turn on the computer if it is turned off or in sleep state. Touch pad Press to put the computer in sleep state if it is ...
Page 6
Views Specifications Display Camera Microphone Allows you to video chat, capture photos, and record Provides high‑quality digital sound input for audio videos. recording, voice calls, and so on. Camer...
Page 7
Specifications Views Dimensions and weight Height 21.4 mm (0.84 in) Width 345 mm (13.58 in) Depth 243 mm (9.57 in) Weight (maximum) 1.9 kg (4.19 lb) NOTE: The weight of your laptop varies depending on...
Page 8
Specifications Views System information Computer model Inspiron 14‑3451 Inspiron 14‑3458 Inspiron 14-3451 Inspiron 14-3458 Processor Intel Celeron Processor Intel Celeron Processor Intel Pentium Proce...
Page 9
Specifications Views Memory Inspiron 14-3451 Inspiron 14-3458 Slot One SODIMM slot Two SODIMM slots Type DDR3L Dual‑channel DDR3L Speed 1333 MHz 1600 MHz Configurations supported 2 GB and 4 GB 2 GB, 4...
Page 10
Specifications Views Ports and connectors External: Network One RJ45 port (Inspiron 14‑3458 only) USB Two USB 2.0 ports One USB 3.0 port Audio/Video One HDMI port One headphone and microphone combo (h...
Page 11
Specifications Views Communications Wireless Wi‑Fi 802.11ac Wi‑Fi 802.11b/g/n Bluetooth 4.0 Intel Wi Di (optional) Dimensions and System Ports and Memory Communications Video Audio Storage weight info...
Page 12
Specifications Views Video Inspiron 14-3451 Inspiron 14-3458 Controller: Integrated Intel HD Graphics Intel HD Graphics Intel HD Graphics 4400 Intel HD Graphics 5500 Discrete N/A NVIDIA Ge Force 820M ...
Page 13
Specifications Views Audio Controller Realtek ALC3234 with Waves Maxx Audio Speakers Two Speaker output: Average 2 W Peak 2.5 W Microphone Single digital microphone in the camera assembly Volume contr...
Page 14
Specifications Views Storage Interface Inspiron 14‑3451 SATA 3 Gbps Inspiron 14‑3458 SATA 6 Gbps Hard drive One 2.5‑inch drive Drives supported One hard drive Dimensions and System Ports and Memory Co...
Page 15
Specifications Views Media-card reader Type One SD card slot Cards supported SD card Dimensions and System Ports and Memory Communications Video Audio Storage weight information connectors Media‑card ...
Page 16
Specifications Views Display Type 14.0‑inch True Life Resolution (maximum) 1366 x 768 Pixel pitch 0.2520 mm Dimensions: Height 225.06 mm (8.86 in) Width 366.63 mm (14.43 in) Diagonal 355.6 mm (14 in) ...
Page 17
Specifications Views Keyboard Type Chiclet keyboard Shortcut keys Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary funct...
Page 18
Keyboard Shortcut keys Mute audio Toggle Fn‑key lock Decrease volume Turn off/on wireless Increase volume Open application menu Play previous track/chapter Sleep Play/Pause Pause/Break Toggle between ...
Page 19
Specifications Views Camera Resolution: Still image 0.92 megapixel Video 1280 x 720 (HD) at 30 fps (maximum) Diagonal viewing angle 74 degrees Dimensions and System Ports and Memory Communications Vid...
Page 20
Specifications Views Touch pad Resolution: Horizontal Vertical Dimensions: Width 105 mm (4.13 in) Height 65 mm (2.56 in) Dimensions and System Ports and Memory Communications Video Audio Storage weigh...
Page 21
Specifications Views Battery Type 4‑cell 40 WHr smart Lithium ion 4‑cell 47 WHr smart Lithium ion Dimensions: Height 20 mm (0.79 in) Width 270.2 mm (10.64 in) Depth 37.5 mm (1.48 in) Weight (maximum) ...
Page 22
Specifications Views Power adapter Type: Inspiron 14‑3451 45 W Inspiron 14‑3458 45 W Input voltage 100 VAC–240 VAC Input frequency 50 Hz–60 Hz Input current 1.30 A/1.60 A/1.70 A Output current 2.31 A/...
Page 23
Specifications Views Computer environment Airborne contaminant level G1 as defined by ISA‑S71.04‑1985 Operating Storage Temperature range 0°C to 35°C (32°F to 95°F) –40°C to 65°C (–40°F to 149°F) Rela...
Manual Details
| Brand | Dell |
|---|---|
| Pages | 23 |
| File Size | 2.50 MB |
| Published | June 24, 2026 |
13 views
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum weight of the Inspiron 14 3000 Series?
The maximum weight is 1.9 kg (4.19 lb).
How do I force shut down the laptop?
Press and hold the power button for 10 seconds.
What is the operating temperature range?
Operating temperature is 0°C to 35°C (32°F to 95°F).
What ports are available on the right side?
It has a headset port, security-cable slot, and two USB 2.0 ports.
What is the battery life span?
The approximate lifespan is 300 discharge/charge cycles.
